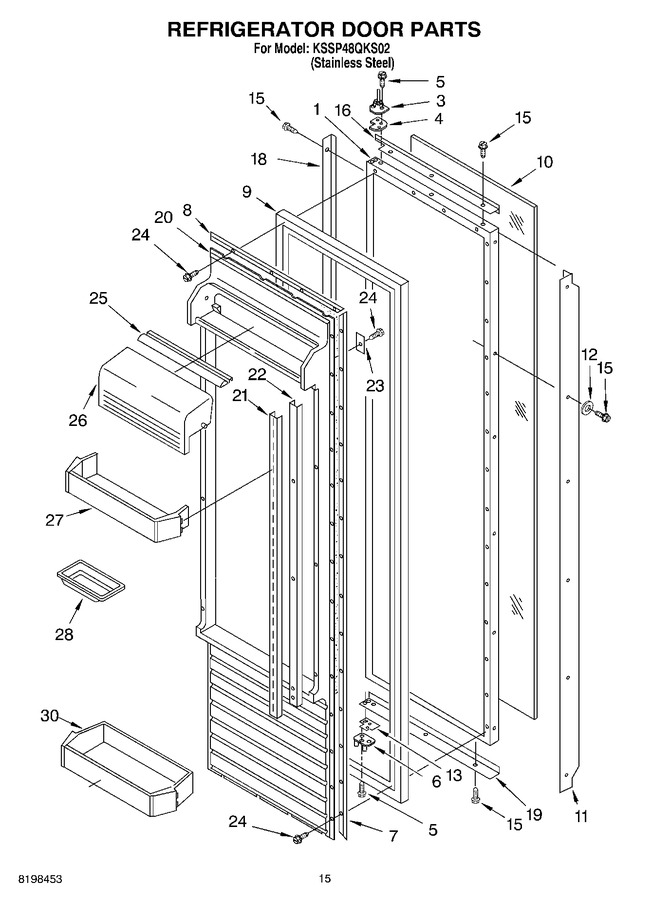

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2259182		Refrigerator Door Panel (includes Insulation)		Appelez-nous	-
3	W11724512		Hinge Assembly, Top   (Replaces: 2256388)				$ 281.25
4	2256381		Spacer-door, Top				$ 24.49
5	W11474472		Screw   (Replaces: 489282)			Immediately	$ 7.77
6	2302878		Hinge Assembly, Bottom   (Replaces: 2256389)			Immediately	$ 81.91
7	1112533		Gasket Retainer, Side (2)		Appelez-nous	-
8	1112542		Gasket Retainer, Top & Bottom		Appelez-nous	-
9	2188499		Door Gasket, Magnetic		Appelez-nous	-
10	2209351		Panel, Decorative		Appelez-nous	-
11	2005954		Handle, Door		Appelez-nous	-
12	2001230		Washer				$ 12.34
13	2257637		Door Spacer, Bottom				$ 15.45
15	WP8281250		Screw   (Replaces: 8281250)				$ 10.28
16	2005018		Trim (top)		Appelez-nous	-
18	2005969		Trim (side)		Appelez-nous	-
19	2215995S		Trim (bottom)		Appelez-nous	-
20	1113950		Panel, Interior Door		Appelez-nous	-
21	1113949		Ladder, Shelf (2)		Appelez-nous	-
22	1113948		Retainer, Shelf Ladder (2)		Appelez-nous	-
23	1112514		Back Up Plate (8)		Appelez-nous	-
24	W11624204		Screw   (Replaces: 486194)				$ 13.25
25	1113955		Gasket		Appelez-nous	-
26	2003465		Door, Utility Bin		Appelez-nous	-
27	1113974		Door Shelf (3)				$ 78.21
28	2165792		Butter Tray		Appelez-nous	-
30	2188333		Shelf, Gallon Door		Appelez-nous	-
