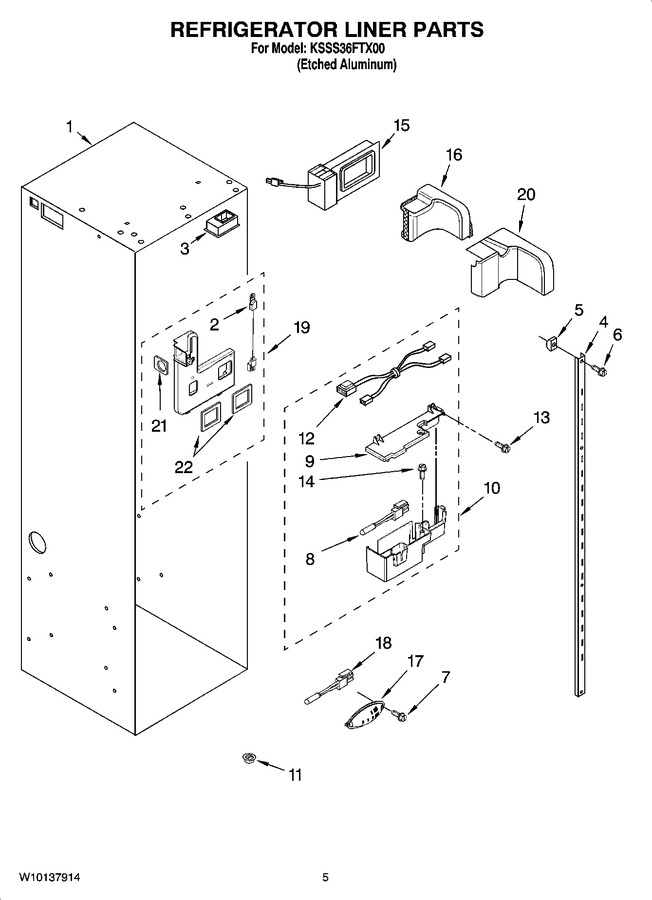

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	WP2306010		Thermistor   (Replaces: 2306010)			Immediately	$ 93.22
3	2208970		Air Duct				$ 136.26
4	WP2259077		Ladder, Shelf (2)   (Replaces: 2259077)				$ 74.30
5	520965		Screw Support, Ladder (8)				$ 28.22
6	2006475		Screw,		Appelez-nous	-
7	WP488729		Screw   (Replaces: 487539)			Immediately	$ 7.45
8	WP2302937		Thermistor   (Replaces: 2302937)				$ 79.57
9	2302986		Lid, Air Baffle		Appelez-nous	-
10	WPW10169528		Baffle, Control Assembly   (Replaces: 2320635)				$ 303.82
11	2171846		Release Valve				$ 18.99
12	2310205		Jumper, Air Baffle		Appelez-nous	-
13	488357		Screw		Appelez-nous	-
14	W11624204		Screw   (Replaces: 486194)				$ 13.25
15	WP2221296		Air Baffle Assembly   (Replaces: 2221296)			Immediately	$ 371.32
16	WP2309222		Diffuser Assembly   (Replaces: 2309222)				$ 91.86
17	WP2317844		Cover, Thermistor   (Replaces: 2317105)				$ 10.24
18	WP2188820		Thermistor   (Replaces: 2188820)			Immediately	$ 27.77
19	W10475010		Spacer, Air Baffle   (Replaces: 2302992)				$ 291.29
20	2309087		Cover, Diffuser		Appelez-nous	-
21	2259412		Seal, Air Duct (round Hole)		Appelez-nous	-
22	2259398		Seal, Air Duct (square Hole)		Appelez-nous	-
