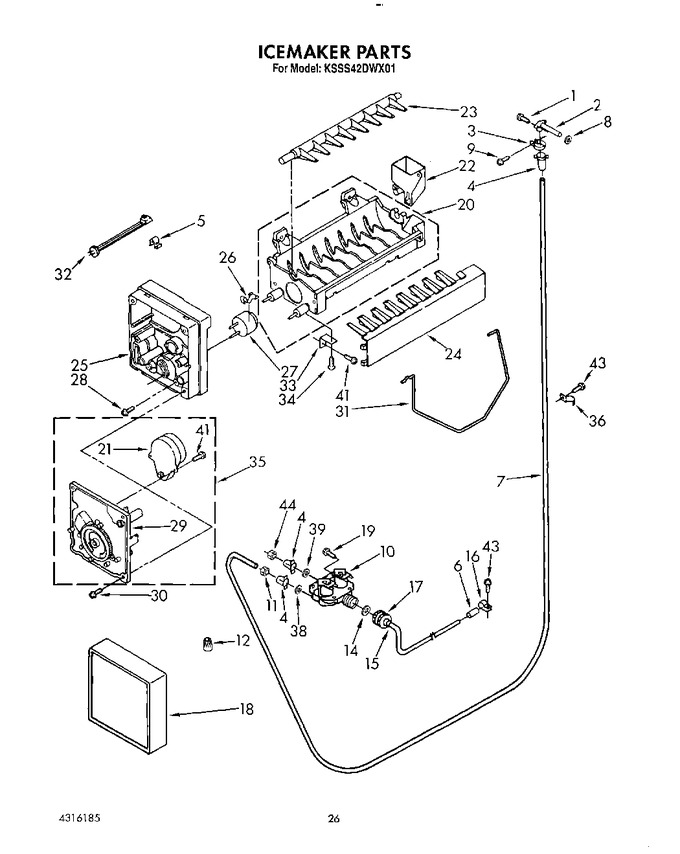

17 - Icemaker


18 - Top Grille And Unit Cover


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10141645		Screw, 8 X 1/2   (Replaces: 489084)				$ 7.25
2	WP2196157		Fitting, Water Tube   (Replaces: 1112845)			Immediately	$ 11.33
3	WP488878		Clamp, Tube   (Replaces: 488878)				$ 10.96
4	4387491		Insert, Tube   (Replaces: 841707)				$ 7.41
5	WP628379		Clip, Fuse   (Replaces: 628288)				$ 9.99
6	WP2158826		Dampener   (Replaces: 836074)				$ 1.64
7	W10823511		Tube, Water   (Replaces: 1113371)			Immediately	$ 29.17
8	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
9	WP489069		Screw, 8 X 1/2 (2)   (Replaces: 488645)			Immediately	$ 7.56
10	1113103		Valve, Solenoid		Appelez-nous	-
11	WP627018		Nut, Compression   (Replaces: 627018)				$ 10.36
12	227991		Connector Wire		Appelez-nous	-
14	WP16123		Washer   (Replaces: 488292)				$ 7.34
15	1113106		Tube, Inlet Valve		Appelez-nous	-
16	1113066		Clamp Tube		Appelez-nous	-
17	537588		Nut, Valve		Appelez-nous	-
18	628355		Cover		Appelez-nous	-
19	00487294		Screw, 8-32 X 3/8 (2)   (Replaces: 487294)				$ 157.58
20	WPW10190929		Mold & Heater (also Order 542638 Silicone Grease)   (Replaces: 628315)				$ 210.17
21	W10190935		Motor   (Replaces: 628302)			Immediately	$ 122.65
22	WP628356		Bearing & Inlet   (Replaces: 627791)				$ 48.38
23	WP627843		Ejector   (Replaces: 627843)				$ 79.00
24	WP2182124		Ice Striper   (Replaces: 627788)				$ 81.32
25	WP2195914		Support   (Replaces: 627790)				$ 98.82
26	WP2315522		Retainer, Thermostat (2)   (Replaces: 627796)				$ 10.44
27	WP627985		Thermostat (also Order 542639 Cement Alumilastic)   (Replaces: 627985)				$ 103.18
28	8533917		Screw, 10-32 X 49/64   (Replaces: 489322)				$ 12.64
29	W10190935		Module Assembly   (Replaces: 628332)			Immediately	$ 122.65
30	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
31	W11807379		Shut Off Arm   (Replaces: 627913)			Immediately	$ 56.89
32	1112980		Harness, Wiring		Appelez-nous	-
33	WP2256087		Bracket   (Replaces: 627915)				$ 87.89
34	489365		Screw, 8-32 X 27/64		Appelez-nous	-
35	W10190935		Module Assembly (includes Items 21, 25, 28, 29, 30 & 41)   (Replaces: 483105)			Immediately	$ 122.65
36	1112847		Tube Clamp (4)		Appelez-nous	-
38	488794		``o`` Ring		Appelez-nous	-
39	00753257		``o`` Ring   (Replaces: 488819)			Immediately	$ 265.94
41	489136		Screw, (2) 3-24 X 3/8				$ 9.72
43	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
44	488795		Compression Nut		Appelez-nous	-
100	4317943		Complete Icemaker Assembly   (Replaces: 4211173)			Immediately	$ 165.11
