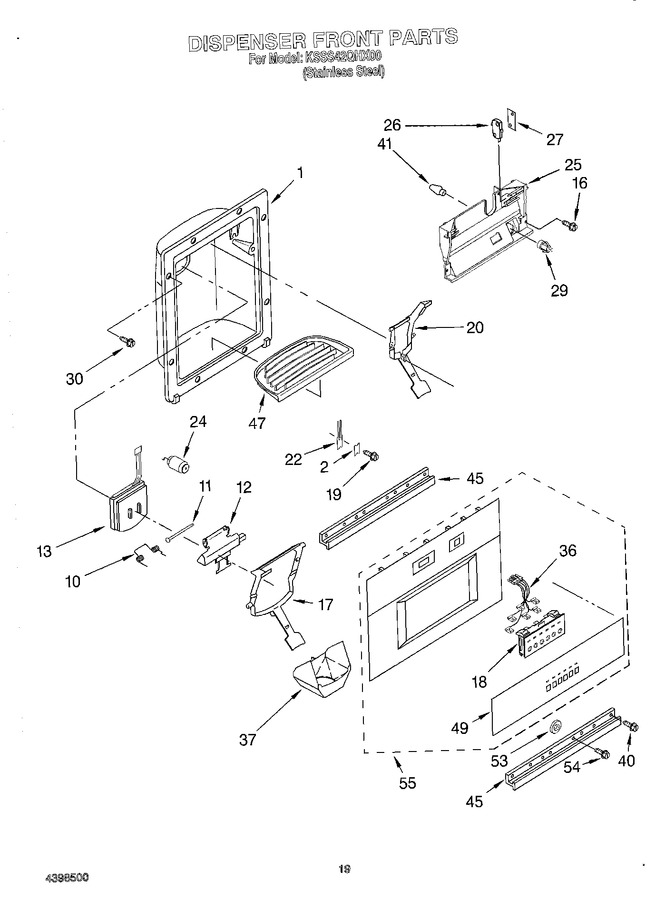

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Housing, Dispenser (not A Serviceable Part) |
|
- | |||||
| 2 | WP2195051 | Strain Relief (Replaces: 2195051) |
|
$ 11.29 | |||||
| 10 | WPW10224328 | Spring, Torsion (Replaces: 2180209) |
|
$ 78.66 | |||||
| 11 | WP2196195 | Pin (Replaces: 2196195) |
|
$ 13.78 | |||||
| 12 | 2180208 | Ice Door Mechanism |
|
- | |||||
| 13 | 2180205 | Door, Ice |
|
- | |||||
| 16 | WP3400906 | Screw (Replaces: 489000) |
|
$ 8.15 | |||||
| 17 | 2180261 | Lever, Ice Dispenser |
|
- | |||||
| 18 | 2202551 | Switch Assembly (also Order Item No.49) |
|
- | |||||
| 19 | WP3400906 | Screw (Replaces: 489000) |
|
$ 8.15 | |||||
| 20 | WPW10152859 | Lever, Water Dispenser (Replaces: 2180270) |
|
Immediately | $ 92.54 | ||||
| 22 | WP2194719 | Spring, Lever (Replaces: 2194719) |
|
Immediately | $ 11.12 | ||||
| 24 | 2180223 | Delay Mechanism |
|
- | |||||
| 25 | WP2180226 | Bracket, Control (Replaces: 2183771) |
|
Immediately | $ 24.27 | ||||
| 26 | WP2162361 | Switch (2) (Replaces: 2162361) |
|
Immediately | $ 25.84 | ||||
| 27 | 625834 | Insulation, Switch |
|
$ 7.99 | |||||
| 29 | 2180200 | Lamp Holder |
|
$ 93.23 | |||||
| 30 | WP489128 | Screw (Replaces: 488500) |
|
$ 10.26 | |||||
| 36 | 2311650 | Wire Assembly (Replaces: 2196199) |
|
$ 84.74 | |||||
| 37 | WP2180224 | Guide, Ice (Replaces: 2180224) |
|
Immediately | $ 27.02 | ||||
| 40 | WP488729 | Screw (Replaces: 487052) |
|
Immediately | $ 7.45 | ||||
| 41 | WP22002263 | Light Bulb (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 45 | 2208927 | Trim, Front (2) |
|
- | |||||
| 47 | WP2180325 | Grille, Overflow (Replaces: 2180325) |
|
Immediately | $ 65.21 | ||||
| 49 | 2202575 | Overlay, Cover |
|
- | |||||
| 53 | 487944 | Washer (2) |
|
- | |||||
| 54 | W10759522 | Screw (2) (Replaces: 488568) |
|
$ 7.42 | |||||
| 55 | 2202569B | Front Cover Assembly (includes Items 18, 36 & 49) |
|
- |
