Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 1112367 Solid Shelf Appelez-nous -
2 2000529 Front, Ice Compartment Appelez-nous -
3 1112052 Shelf, Fixed Appelez-nous -
4 1113638 Shelf, Fixes (2) (large) Appelez-nous -
14 1113644 Trim, Basket Appelez-nous -
15 1113870 Roller Appelez-nous -
16 1113871 Eyelet, Roller Appelez-nous -
17 WPW10272364 Screw   (Replaces: 489211) In-Stock Immediately $ 10.22

18 488307 Washer Appelez-nous -
19 2001626 Basket Appelez-nous -
22 2000062 Slide, Basket L.s. Appelez-nous -
22 2000061 Slide, Basket R.s. Appelez-nous -
24 1113169 Stop, Roller Special Order $ 11.28

25 W11624204 Screw   (Replaces: 486194) Special Order $ 13.25


    View Diagram in Separate Window     Print Icon   Print Part List

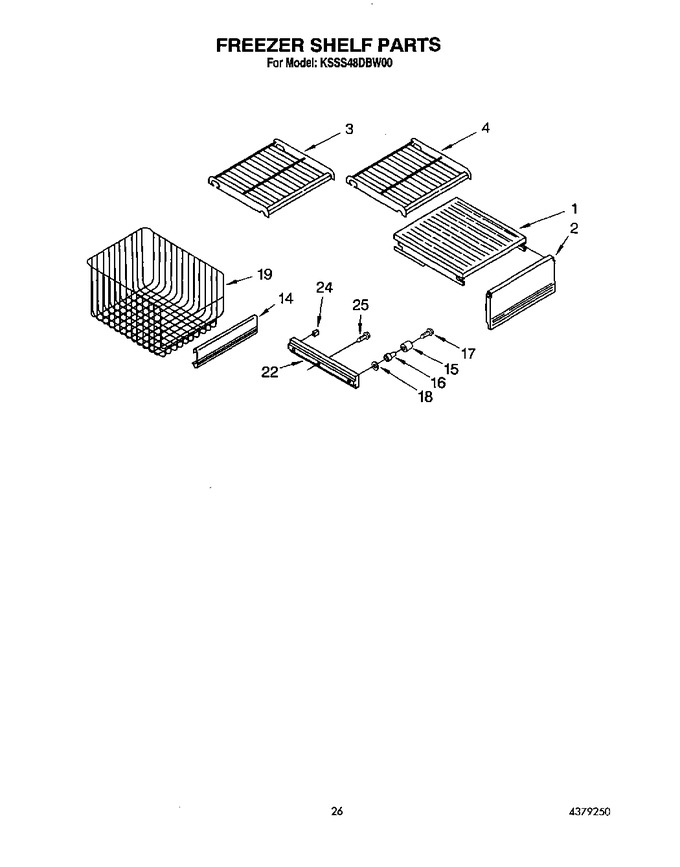

Diagram for KSSS48DBW00
