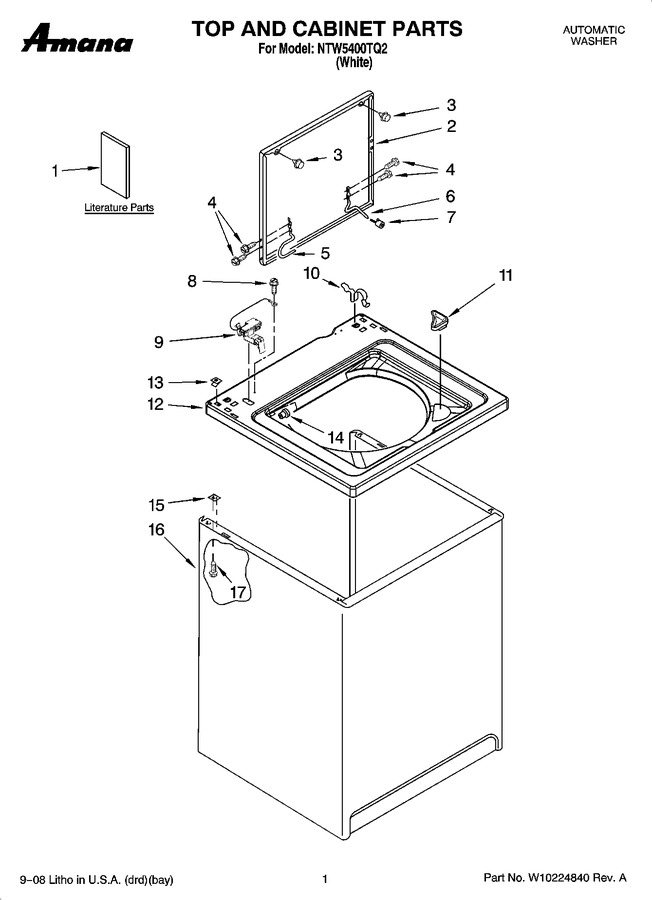

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10192181 | Feature Sheet (english/french) |
|
- | |||||
| 1 | 8578912 | Wiring Diagram |
|
- | |||||
| 1 | W10092771 | Energy Guide |
|
- | |||||
| 1 | W10192182 | Feature Sheet (spanish) |
|
- | |||||
| 1 | W10200331 | Installation Instructions (english/french) |
|
- | |||||
| 1 | W10200662 | Installation Instructions (spanish) |
|
- | |||||
| 1 | W10192179 | Use & Care Guide (english/french) |
|
- | |||||
| 1 | W10192180 | Use & Care Guide (spanish) |
|
- | |||||
| 2 | WPW10193857 | Lid (Replaces: 8541774) |
|
$ 337.10 | |||||
| 3 | WP9724509 | Bumper, Lid (2) (Replaces: 9724509) |
|
Immediately | $ 7.50 | ||||
| 4 | WPW10119828 | Screw, Lid Hinge Mounting (4) (Replaces: W10119872) |
|
Immediately | $ 6.80 | ||||
| 5 | 8318088 | Hinge, Lid (l.h.) |
|
- | |||||
| 6 | WP54583 | Hinge, Lid (r.h.) (Replaces: 54583) |
|
$ 27.94 | |||||
| 7 | 19119 | Bumper, Lid Hinge |
|
$ 5.75 | |||||
| 8 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 9 | WP8318084 | Switch, Lid (Replaces: 8318084) |
|
Immediately | $ 36.59 | ||||
| 10 | WP62780 | Clip, Top & Cabinet & Rear Panel (2) (Replaces: 62780) |
|
Immediately | $ 7.37 | ||||
| 11 | WP3362952 | Dispenser-bleach (Replaces: 3362952) |
|
Immediately | $ 10.88 | ||||
| 12 | 8318064 | Top |
|
$ 135.68 | |||||
| 13 | WP357213 | Nut-push-in (2) (Replaces: 357213) |
|
$ 6.98 | |||||
| 14 | WP21258 | Bearing, Lid Hinge (2) (Replaces: 21258) |
|
$ 7.21 | |||||
| 15 | WP62750 | Spacer, Cabinet To Top (4) (Replaces: 62750) |
|
Immediately | $ 7.26 | ||||
| 16 | 63424 | Cabinet |
|
$ 349.67 | |||||
| 17 | WP3390631 | Screw 10-16 X 3/8 (4) (Replaces: 3390631) |
|
$ 7.43 |
