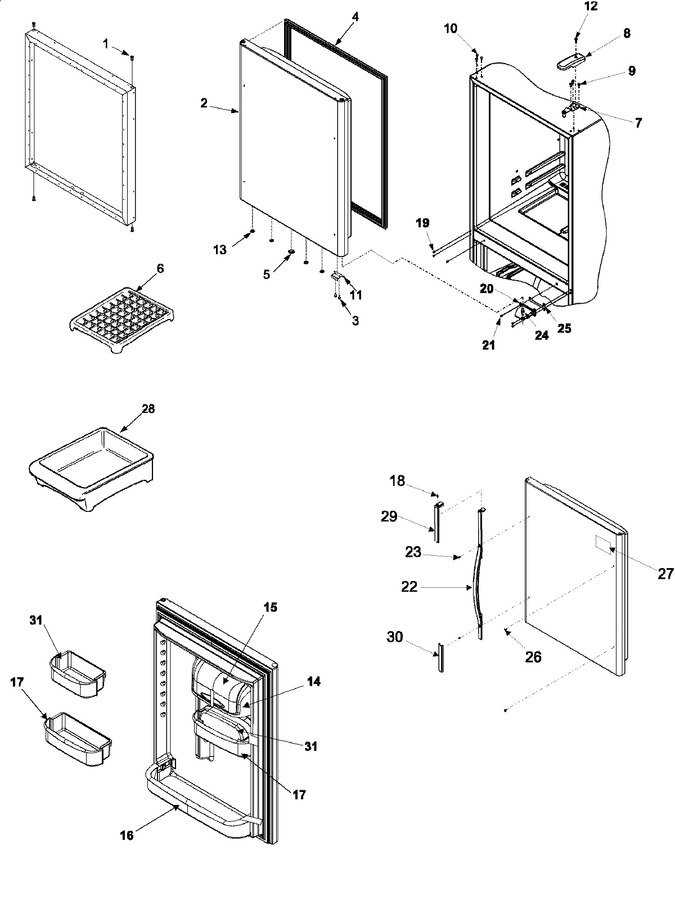

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 67004978 | Bushing, Door (blk) (Replaces: 67003369) |
|
$ 19.89 | |||||
| 2 | 12658501BQ | Ref Dr Foam Assy (blk) (Replaces: 67001136) |
|
$ 633.27 | |||||
| 3 | WPW10348409 | Screw, Mounting (Replaces: M0211533) |
|
Immediately | $ 7.38 | ||||
| 4 | WPW10436245 | Gasket, Ref Door (blk) (Replaces: 67003549) |
|
$ 326.12 | |||||
| 5 | A3080001 | Plug, Button (blk) |
|
- | |||||
| 6 | WP61002140 | Tray, Ice (Replaces: 61002140) |
|
$ 19.14 | |||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) |
|
Immediately | $ 42.42 | ||||
| 8 | 67001012 | Cover, Top Hinge (blk) |
|
$ 44.74 | |||||
| 9 | R9800670 | Screw, Tf (Replaces: M0238731) |
|
$ 9.52 | |||||
| 10 | WP12246608 | Plug, Top Hinge Button (blk) (Replaces: M0310731) |
|
Immediately | $ 7.34 | ||||
| 11 | W11708403 | Stop, Door (blk) (Replaces: 10447109) |
|
Immediately | $ 13.28 | ||||
| 12 | WP8281196 | Screw, Mach (Replaces: M0202336) |
|
Immediately | $ 6.80 | ||||
| 13 | 67004838 | Plug, Button (blk) (Replaces: 67001016) |
|
$ 10.09 | |||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) |
|
Immediately | $ 79.21 | ||||
| 15 | WP67003637 | Door, Dairy (Replaces: 67002842) |
|
Immediately | $ 74.40 | ||||
| 16 | 67002505 | Retainer, Door |
|
- | |||||
| 17 | 67001020 | Bucket, Ref Dr (med) |
|
$ 32.95 | |||||
| 18 | 12248201 | Screw, Hndl Cone |
|
$ 5.48 | |||||
| 19 | WP489349 | Screw, Tf (Replaces: M0239730) |
|
Immediately | $ 7.59 | ||||
| 20 | WP12607104ED | Hinge, Center (blk) (Replaces: 67001167) |
|
$ 150.62 | |||||
| 21 | W11573362 | Screw, T. F. (Replaces: M0226233) |
|
$ 13.25 | |||||
| 22 | 67003130 | Handle, Ref Dr (blk) |
|
- | |||||
| 23 | R9800670 | Screw, Mounting (Replaces: M0223230) |
|
$ 9.52 | |||||
| 24 | WP67006744 | Pin, Hinge (ctr) (Replaces: 10351001) |
|
$ 7.81 | |||||
| 25 | WPM0274062 | Shim, Non Metal (blk) (Replaces: M0274062) |
|
Immediately | $ 21.99 | ||||
| 26 | WP12246608 | Plug, Handle Hole (blk) (Replaces: 12246603) |
|
Immediately | $ 7.34 | ||||
| 27 | 67003408 | Nameplate (blk) |
|
- | |||||
| 28 | 61002267 | Pan, Ice |
|
- | |||||
| 29 | 67001127 | Trim, Top Handle (blk) |
|
- | |||||
| 30 | 67001142 | Trim, Bottom Handle (blk) |
|
- | |||||
| 31 | 67001140 | Bucket, Ref Dr (small) |
|
$ 33.04 |
