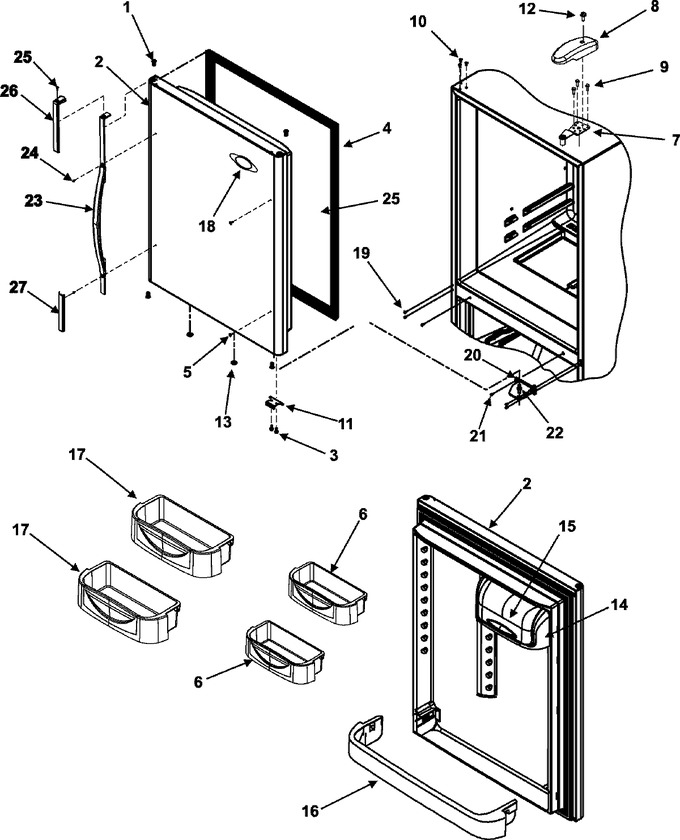

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP67004977 | Bushing, Door (wht) (Replaces: 67004977) | 10 |
|
$ 7.38 | ||||
| 2 | 67001138 | Ref Dr Foam Assy (wht) | 10 |
|
$ 514.71 | ||||
| 3 | WP98165 | Screw (Replaces: 67006287) | 10 |
|
$ 7.71 | ||||
| 4 | WPW10443309 | Gasket, Ref Door (wht) (Replaces: 67003548) | 10 |
|
Immediately | $ 328.72 | |||
| 5 | WP67001130 | Plug, Handle Hole (wht) (Replaces: 12246601) | 10 |
|
Immediately | $ 7.39 | |||
| 6 | 67001140 | Bucket, Ref Dr (small) | 10 |
|
$ 33.04 | ||||
| 7 | WP12566606ED | Hinge, Top (blk) (Replaces: 67001011) | 10 |
|
Immediately | $ 42.42 | |||
| 8 | 67001014 | Cover, Top Hinge (wht) | 10 |
|
$ 20.11 | ||||
| 9 | WP489349 | Screw (Replaces: 67006303) | 10 |
|
Immediately | $ 7.59 | |||
| 10 | WP67001130 | Plug, Top Hinge Button (wht) (Replaces: M0310729) | 10 |
|
Immediately | $ 7.39 | |||
| 11 | 12968202W | Stop, Door (wht) (Replaces: 67003779) | 10 |
|
$ 62.36 | ||||
| 12 | WP8281196 | Screw (Replaces: 67006521) | 10 |
|
Immediately | $ 6.80 | |||
| 13 | 10712401 | Plug, Vent (wht) | 10 |
|
$ 7.79 | ||||
| 14 | WP67001279 | Tray, Dairy (Replaces: 67001279) | 10 |
|
Immediately | $ 79.21 | |||
| 15 | WP67003637 | Door, Dairy (Replaces: 67003637) | 10 |
|
Immediately | $ 74.40 | |||
| 16 | 67002505 | Retainer, Door | 10 |
|
- | ||||
| 17 | 67001020 | Bucket, Ref Dr (med) | 10 |
|
$ 32.95 | ||||
| 18 | 12759505 | Nameplate | 10 |
|
- | ||||
| 19 | WP489349 | Screw, Tf Hex/washer Hd (Replaces: 67005822) | 10 |
|
Immediately | $ 7.59 | |||
| 20 | W11689473 | Hinge, Center (wht) (Replaces: 67001168) | 10 |
|
$ 62.81 | ||||
| 21 | W11573362 | Screw (Replaces: 67006380) | 10 |
|
$ 13.25 | ||||
| 22 | WPM0274057 | Shim, Non Metal (wht) (Replaces: M0274057) | 10 |
|
Immediately | $ 7.56 | |||
| 22 | WP67006744 | Pin, Center Hinge (Replaces: 67006744) | 10 |
|
$ 7.81 | ||||
| 23 | 67003129 | Handle, Ref Dr (wht) | 10 |
|
$ 79.41 | ||||
| 24 | 67006682 | Screw | 10 |
|
- | ||||
| 25 | 12248201 | Screw, Hndl Cone | 10 |
|
$ 5.48 | ||||
| 26 | 67005131 | Trim, Top Handle (wht) | 10 |
|
$ 5.83 | ||||
| 27 | 67005137 | Trim, Btm Handle (wht) | 10 |
|
$ 16.90 |
