SELECT A DIAGRAM

01 - Cabinet


02 - Freezer Door


03 - Shelf

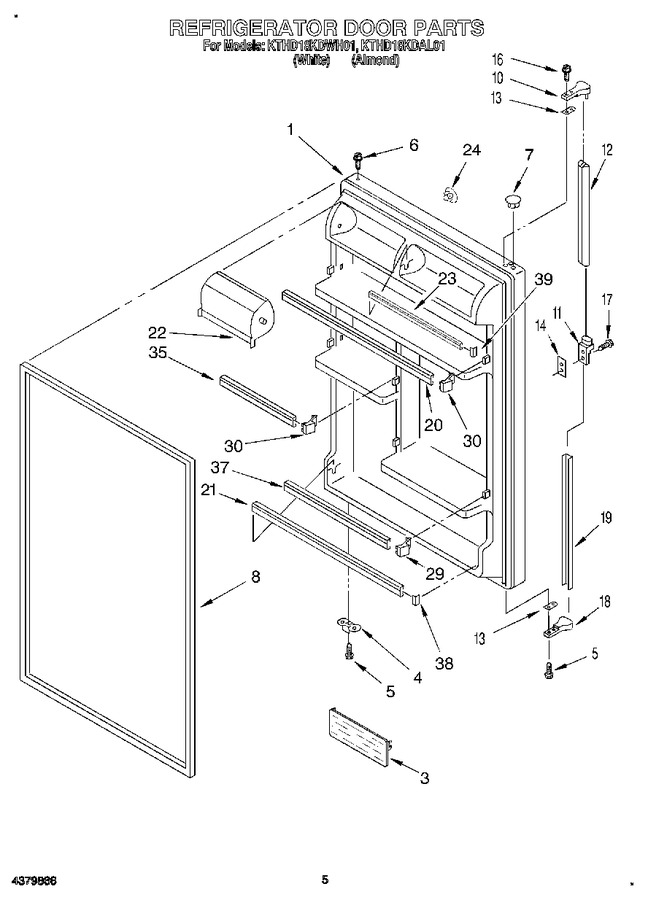

04 - Refrigerator Door


05 - Liner


06 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2171228		Panel, Door (includes No.8) (white)		Appelez-nous	-
1	2171229		Panel, Door (includes No.8) (almond)		Appelez-nous	-
3	2159303		Shelf, Flip-up		Appelez-nous	-
4	2159368		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2159057		Door Gasket, Magnetic (service)   (Replaces: 2177307)			Immediately	$ 168.76
10	944302		Handle End		Appelez-nous	-
11	987870		Handle End, Side		Appelez-nous	-
12	1123133		Handle, Center (almond)		Appelez-nous	-
12	2156670		Handle, Center (white)		Appelez-nous	-
13	944320		Spacer, Handle		Appelez-nous	-
14	987872		Shim, End Cap		Appelez-nous	-
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.18
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 7.45
18	1123210		Endcap, Insert Retainer		Appelez-nous	-
19	2168981		Handle, Extension (almond)		Appelez-nous	-
19	2168980		Handle, Extension (white)		Appelez-nous	-
20	2168973		Trim, Door Shelf		Appelez-nous	-
21	2168975		Trim, Door Shelf		Appelez-nous	-
22	WP2218113		Door, Compartment   (Replaces: 2171036)			Immediately	$ 47.56
23	WP2201061		Trim-door Shelf   (Replaces: 2168972)				$ 111.89
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.99
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
29	2156001		Endcap, Trim (2)		Appelez-nous	-
30	WP2195915		Endcap, Trim (4)   (Replaces: 2156000)				$ 12.35
35	2168968		Trim, Door Shelf		Appelez-nous	-
37	2168974		Trim, Door Shelf		Appelez-nous	-
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 11.51
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.23

    View Diagram in Separate Window       Print Part List
