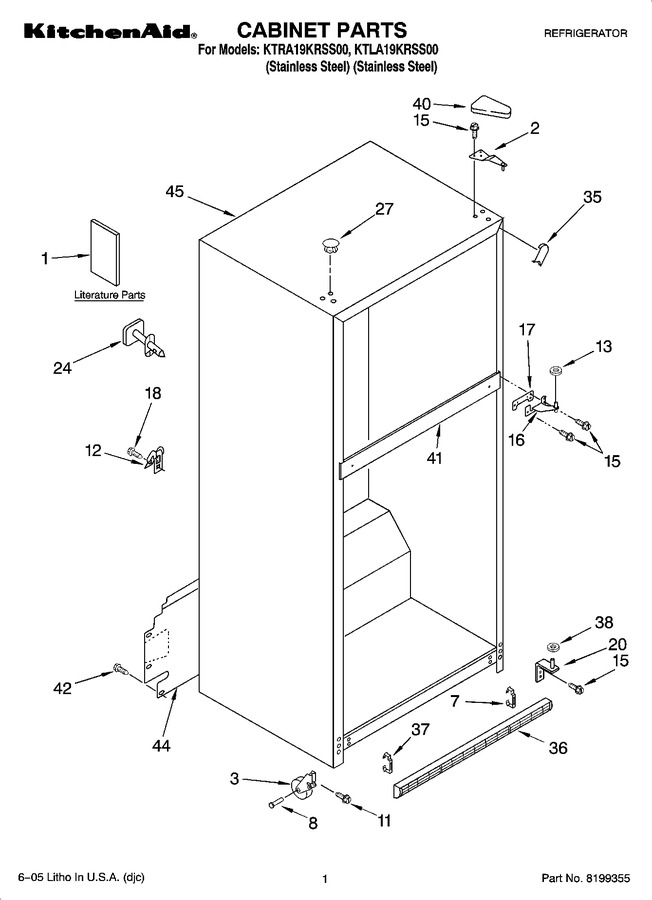

01 - Cabinet Parts
02 - Liner Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2314163 | Energy Label |
|
- | |||||
| 1 | 2225762 | Service & Wiring Sheet |
|
- | |||||
| 1 | 2301879 | Use & Care Guide |
|
- | |||||
| 1 | 2225415 | Customer Quick Tips |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2189410) |
|
Immediately | $ 107.48 | ||||
| 3 | WP2166108 | Roller-front (2) (Replaces: 2166108) |
|
Immediately | $ 31.28 | ||||
| 7 | 2254385 | Clip-grille |
|
$ 79.98 | |||||
| 8 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 11 | WP3400504 | Screw (Replaces: 3400504) |
|
$ 6.80 | |||||
| 12 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 13 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2254618 | Hinge, Center (Replaces: 2183972) |
|
Immediately | $ 82.82 | ||||
| 17 | WP2183854 | Shim, Hinge Center (Replaces: 2183854) |
|
$ 10.29 | |||||
| 18 | WP489464 | Screw (Replaces: 8281265) |
|
Immediately | $ 7.54 | ||||
| 20 | WP2254473 | Hinge Butt (Replaces: 2254473) |
|
$ 8.35 | |||||
| 24 | N/A | Fitting, Water Tube (not Serviced) |
|
- | |||||
| 27 | WP2183998 | Hole Plug (6) (Replaces: 2183998) |
|
$ 17.11 | |||||
| 35 | W11252732 | Corner Filler (2) (Replaces: 2201017) |
|
$ 11.76 | |||||
| 36 | 2254388 | Grille (includes Illus. 7 & 37) |
|
$ 40.22 | |||||
| 37 | 2189356 | Clip-grille |
|
$ 5.70 | |||||
| 38 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 40 | WP2213363 | Cover, Hinge (Replaces: 2213363) |
|
Immediately | $ 17.21 | ||||
| 41 | N/A | Rail Center (not Serviced) |
|
- | |||||
| 42 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 44 | 2221775 | Cover, Unit |
|
- | |||||
| 45 | N/A | Cabinet (not A Serviceable Part) |
|
- |
