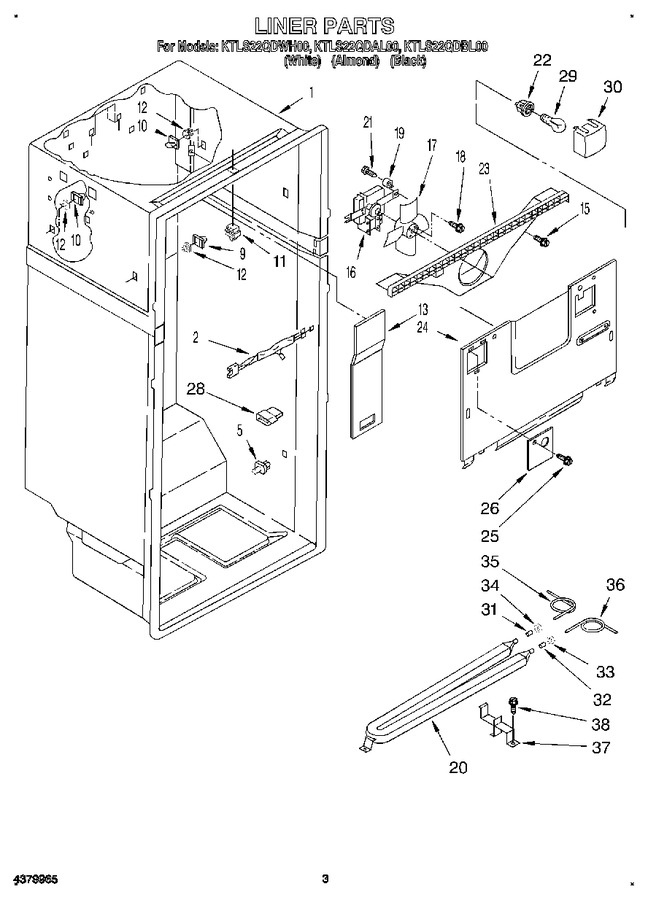

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	1127626		Wiring, Fan Motor		Appelez-nous	-
5	1106612		Shelf Stud (2)				$ 7.56
9	946356		Stud (3)		Appelez-nous	-
10	819091		Saddle Stud, R.s.   (Replaces: 946357)				$ 41.66
10	819091		Saddle Stud L.s.   (Replaces: 946358)				$ 41.66
11	W11457217		Rocker Arm Switch   (Replaces: 1115373)				$ 40.09
12	946355		Support, Stud (6)		Appelez-nous	-
13	2157411		Cover, Air Duct		Appelez-nous	-
15	WP489478		Screw   (Replaces: 489242)				$ 8.18
16	482731		Motor, Fan   (Replaces: 2169116)			Immediately	$ 92.36
17	WP1100938		Blade, Fan   (Replaces: 2162448)				$ 92.26
18	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 244.80
19	531933		Grommet (4)				$ 5.70
20	2160600		Reservoir-water		Appelez-nous	-
21	489168		Screw		Appelez-nous	-
22	WPW10119935		Socket, Light   (Replaces: 2155597)				$ 106.16
23	2160644		Scroll, Fan		Appelez-nous	-
24	2160648		Evaporator Cover		Appelez-nous	-
25	WP488729		Screw   (Replaces: 489451)			Immediately	$ 8.28
26	WP2217784		Hole Cover, Evaporator   (Replaces: 2183049)				$ 47.22
28	2154491		Housing Plug		Appelez-nous	-
29	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 13.58
30	2174443		Light Lens		Appelez-nous	-
31	1129177		Insert				$ 5.27
32	4387491		Insert,   (Replaces: 841707)				$ 8.23
33	1129179		Nut, Compression		Appelez-nous	-
34	1108005		Nut, Compression		Appelez-nous	-
35	W10823511		Tube, Water   (Replaces: 653200)			Immediately	$ 32.41
36	2160794		Tube, Water		Appelez-nous	-
37	2168550		Bracket, Reservoir		Appelez-nous	-
38	488280		Screw		Appelez-nous	-
