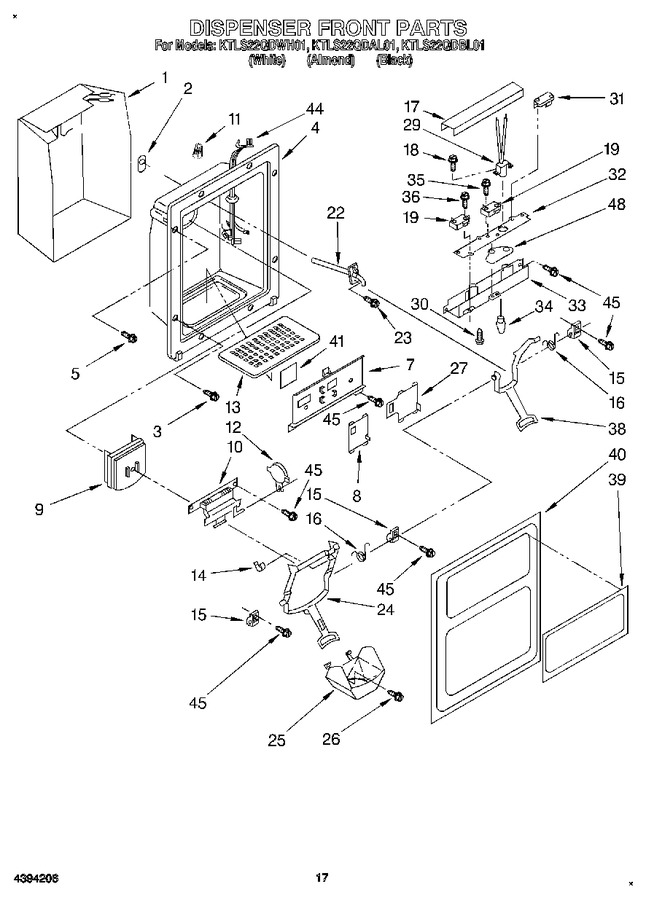

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Compartment Separator


08 - Unit


09 - Icemaker


10 - Dispenser Front, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2149097		Heater, Dispenser		Appelez-nous	-
2	987048		Grommet		Appelez-nous	-
3	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
4	1125969		Housing, Dispenser (almond)		Appelez-nous	-
4	1107943		Housing, Dispenser (black)		Appelez-nous	-
4	1124715		Housing, Dispenser (white)		Appelez-nous	-
5	W11693756		Screw 8 X 5/8 (10)   (Replaces: 488687)			Immediately	$ 14.76
7	2152717		Frame, Slides (white)		Appelez-nous	-
7	2152718		Frame, Slides (almond)		Appelez-nous	-
7	2152716		Frame, Slides (black)		Appelez-nous	-
8	2152720		Slide, Cube/crush Switch (white)		Appelez-nous	-
8	2152719		Slide, Cube/crush Switch (black)		Appelez-nous	-
8	2152721		Slide, Cube/crush Switch (almond)		Appelez-nous	-
9	2147168		Door, Ice				$ 33.13
10	2147167		Door Mechanism Assembly (includes Item 9)				$ 64.67
11	2160754		Wire Connector		Appelez-nous	-
12	WP1120581		Mechanism Delay   (Replaces: 1120581)				$ 223.72
13	1126120		Grille, Overflow (for White Model)		Appelez-nous	-
13	983900		Grille, Overflow (for Black Model)				$ 27.30
13	1126121		Grille, Overflow (for Almond Model)		Appelez-nous	-
14	987917		Clip, Bearing (2)		Appelez-nous	-
15	983697		Bearing, Lever (3)		Appelez-nous	-
16	983696		Spring, Lever (2)				$ 21.26
17	2147165		Shield, Wiring		Appelez-nous	-
18	WP489128		Screw, 8-32 X 3/8   (Replaces: 488500)				$ 11.40
19	WP2162361		Switch, Light   (Replaces: 2162361)			Immediately	$ 28.71
22	WP4388152		Water Fitting Assembly   (Replaces: 2169019)				$ 290.25
23	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 9.05
24	1127420		Lever, Ice Dispenser (black)		Appelez-nous	-
24	1125973		Lever, Ice Dispenser (almond)		Appelez-nous	-
24	1124719		Lever, Ice Dispenser (white)		Appelez-nous	-
25	1119035		Guide, Ice (black)		Appelez-nous	-
25	1124730		Guide, Ice (white)				$ 19.06
25	1126026		Guide, Ice (almond)		Appelez-nous	-
26	488892		Screw (stainless)		Appelez-nous	-
26	489197		Screw (black)		Appelez-nous	-
27	2152726		Slide, Light Switch (white)		Appelez-nous	-
27	2152727		Slide, Light Switch (almond)		Appelez-nous	-
27	2152724		Slide, Light Switch (black)		Appelez-nous	-
29	2147131		Lamp Holder		Appelez-nous	-
30	488361		Screw, 4-4- X 9/16 (2)		Appelez-nous	-
31	WP2162361		Switch-water   (Replaces: 2162361)			Immediately	$ 28.71
32	2147164		Insulator, Control Bracket		Appelez-nous	-
33	2147163		Bracket, Control		Appelez-nous	-
34	WP22002263		Bulb, Light   (Replaces: 851389)			Immediately	$ 14.85
35	488361		Screw (2)		Appelez-nous	-
36	489155		Screw,		Appelez-nous	-
38	2177151		Lever, Water Dispenser (white)		Appelez-nous	-
38	2177148		Lever, Water Dispenser (black)		Appelez-nous	-
38	2177152		Lever, Water Dispenser (almond)		Appelez-nous	-
39	2174337		Plaque, Front Cover (black)		Appelez-nous	-
39	2174338		Plaque, Front Cover (white)		Appelez-nous	-
39	2174336		Plaque, Front Cover (almond)		Appelez-nous	-
40	2179386		Front Cover, Housing (white)		Appelez-nous	-
40	2179384		Front Cover, Housing (almond)		Appelez-nous	-
40	2179385		Front Cover, Housing (black)		Appelez-nous	-
41	2147172		Heat Shield, Frame		Appelez-nous	-
44	2147166		Wiring Harness, Door		Appelez-nous	-
45	WP3400906		Screw, 9-12 X 1/2   (Replaces: 489000)				$ 9.05
48	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
48	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
48	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
48	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 18.81
48	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
48	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
48	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
48	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 54.01
48	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
48	350942		Primer White (13 Oz. Spray Can)				$ 94.14
48	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
48	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
48	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
48	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
48	833938		Kit, Terminal Connector				$ 8.47
48	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
48	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
48	625834		Spacer				$ 7.99
48	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
48	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
48	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
48	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
48	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
48	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
48	2172757		Door Reversal Instructions		Appelez-nous	-
	LIT2173946		Care & Use Guide		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2176905		Service & Wiring Sheet		Appelez-nous	-
	LIT2180034		Energy Guide		Appelez-nous	-
	1117510		Torx Key				$ 5.84

    View Diagram in Separate Window       Print Part List
