01 - Cabinet


02 - Liner


03 - Shelf


04 - Compartment Separator


05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Motor And Ice Container


09 - Dispenser Front


10 - Icemaker, Lit/optional

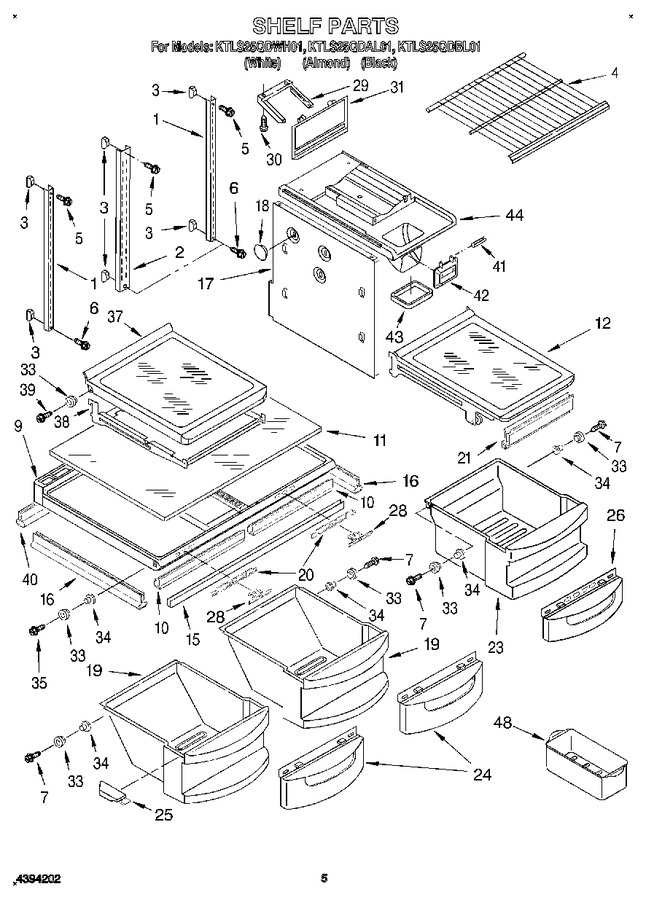

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1118102		Shelf, Ladder (2)		Appelez-nous	-
2	1118101		Shelf Ladder, Center		Appelez-nous	-
3	520965		Screw, Support				$ 28.22
4	2160694		Shelf, Freezer (2)		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489474)			Immediately	$ 7.70
7	WP489261		Screw   (Replaces: 489261)				$ 7.50
9	2174132		Pan Cover & Roller Assembly		Appelez-nous	-
10	WP1125528		Gasket, Pan Cover Front   (Replaces: 2179251)				$ 145.52
11	2174145		Glass, Crisper Cover		Appelez-nous	-
12	2173903		Pan Shelf & Roller Assembly		Appelez-nous	-
15	2179449		Crisper Support		Appelez-nous	-
16	2179252		Gasket, Pan Cover (side)		Appelez-nous	-
17	2160620		Support Wall I/m		Appelez-nous	-
18	2160621		Anchor-screw I/m		Appelez-nous	-
19	2174072		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174257		Slide, Humidity		Appelez-nous	-
21	2174400		Gasket-front		Appelez-nous	-
23	2174087		Meat Pan		Appelez-nous	-
24	2174073		Window, Crisper Pan		Appelez-nous	-
25	2174259		Cap, Crisper Pan (right Side)		Appelez-nous	-
25	2174258		Cap, Crisper Pan (left Side)		Appelez-nous	-
26	2174088		Window, Meat Pan		Appelez-nous	-
28	2174253		Button, Humidity Control		Appelez-nous	-
29	1115380		Slide, Ice Compartment		Appelez-nous	-
30	WP489478		Screw   (Replaces: 489242)				$ 7.36
31	2173904		Door, Ice Compartment		Appelez-nous	-
33	2174388		Roller		Appelez-nous	-
34	2174478		Eyelet, Roller				$ 5.70
35	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.22
37	2174018		Shelf, Spillguard		Appelez-nous	-
38	2174020		Frame & Roller Assembly		Appelez-nous	-
39	489439		Screw		Appelez-nous	-
40	2179250		Gasket, Pan Cover-rear		Appelez-nous	-
41	489395		Roll Pin		Appelez-nous	-
42	2160613		Door-platform		Appelez-nous	-
43	2160615		Gasket-platform		Appelez-nous	-
44	2160612		Platform-ice Container		Appelez-nous	-
48	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 17.59
