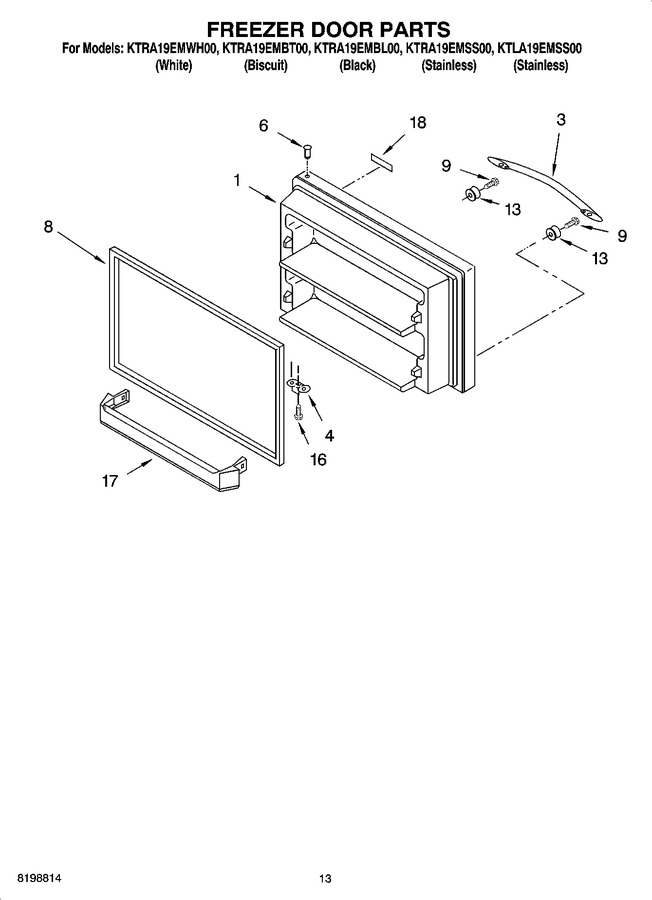

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2221714 | Freezer Door (white) |
|
- | |||||
| 1 | 2221716 | Freezer Door (biscuit) |
|
- | |||||
| 1 | 2221715 | Freezer Door (black) |
|
- | |||||
| 1 | 2221744 | Freezer Door (stainless, Right Hand) |
|
- | |||||
| 1 | 2221745 | Freezer Door (stainless, Left Hand (includes 6 & 8)) |
|
- | |||||
| 3 | 2221772 | Handle (black) |
|
- | |||||
| 3 | 2221773 | Handle (biscuit) |
|
- | |||||
| 3 | 2221771 | Handle (white) |
|
- | |||||
| 3 | 2221770 | Handle (stainless) |
|
- | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 8 | 2159327 | Door Gasket, Magnetic (mist Beige) (Replaces: 2214966) |
|
Immediately | $ 148.12 | ||||
| 8 | 2177304 | Door Gasket, Magnetic (black) (Replaces: 2214968) |
|
$ 292.22 | |||||
| 9 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 13 | WPW10170540 | Stud, Handle (Replaces: 2219698) |
|
Immediately | $ 8.69 | ||||
| 16 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 17 | 2159291 | Trivet, Door |
|
$ 35.71 | |||||
| 18 | 2221718 | Left Hand Door Swing (black) |
|
- | |||||
| 18 | 2212761 | Nameplate (biscuit) |
|
- | |||||
| 18 | 2212762 | Nameplate (black) |
|
- | |||||
| 18 | 2221717 | Left Hand Door Swing (white) |
|
- | |||||
| 18 | 2221719 | Left Hand Door Swing (biscuit) |
|
- | |||||
| 18 | 2212760 | Nameplate (white) |
|
- |
