SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Ice Maker


07 - Freezer Door


08 - Water Dispenser, Optional

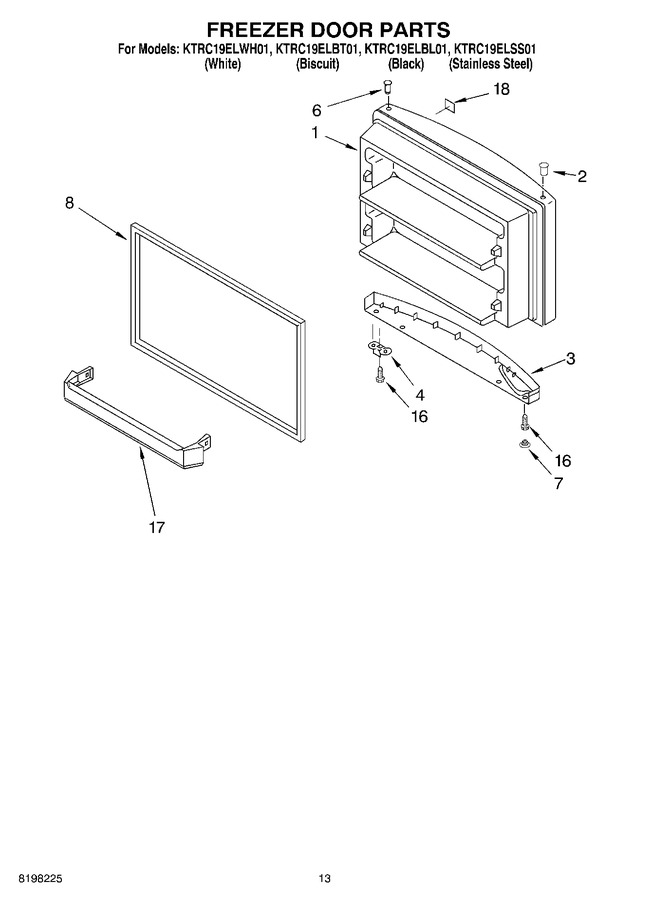

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205400		Freezer Door (biscuit)		Appelez-nous	-
1	2205402		Freezer Door (black)		Appelez-nous	-
1	2212495		Freezer Door (stainless Steel (includes No.6 & No.8))		Appelez-nous	-
1	2205399		Freezer Door (white)		Appelez-nous	-
2	WP2212651		Hole Plug (black)   (Replaces: 2212651)			Immediately	$ 21.79
2	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
2	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.19
3	2221632		Handle (black)		Appelez-nous	-
3	2205459		Handle (white)		Appelez-nous	-
3	2205460		Handle (biscuit)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	2204837		Hole Plug (white)				$ 27.77
7	2204838		Hole Plug (biscuit)		Appelez-nous	-
7	2204840		Hole Plug (black)				$ 33.23
8	2159327		Door Gasket, Magnetic (mist Beige)   (Replaces: 2214966)			Immediately	$ 148.12
8	2177304		Door Gasket, Magnetic (black)   (Replaces: 2214968)				$ 292.22
16	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
17	2159291		Trim, Door (2)				$ 35.71
18	2212762		Nameplate (black)		Appelez-nous	-
18	2212760		Nameplate (white)		Appelez-nous	-
18	2212761		Nameplate (biscuit)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
