SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional

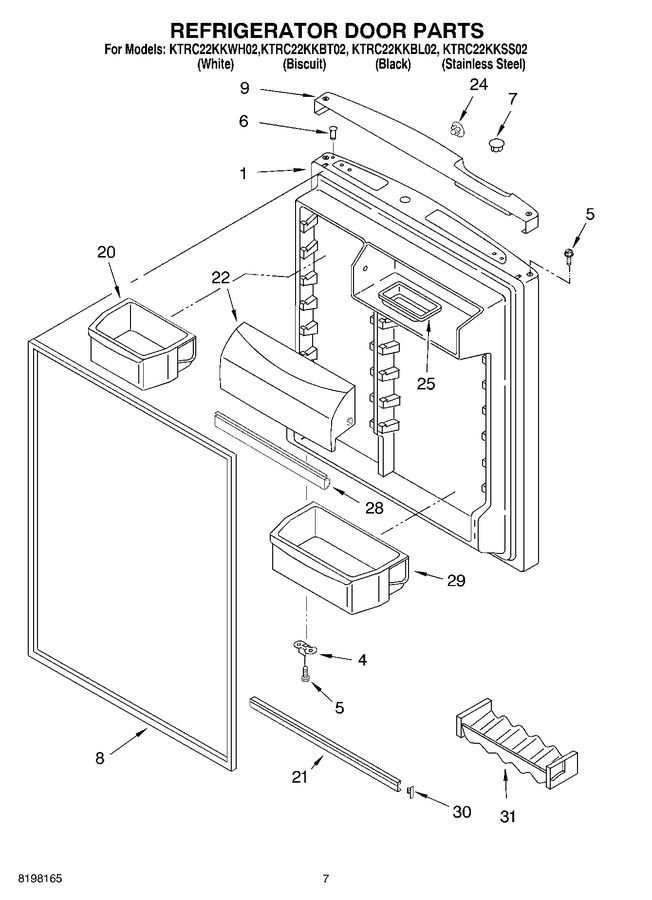

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205214		Refrigerator Door (includes No.6 & No.8) (white)		Appelez-nous	-
1	2205215		Refrigerator Door (includes No.6 & No.8) (biscuit)		Appelez-nous	-
1	2205217		Refrigerator Door (includes No.6 & No.8) (black)		Appelez-nous	-
1	2212418		Refrigerator Door (includes No.6 & No.8) (stainless Steel)		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP681249		Screw   (Replaces: 489276)			Immediately	$ 7.43
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212651		Hole Plug (black)   (Replaces: 2212651)				$ 21.79
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.19
7	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
8	2177311		Door Gasket, Magnetic (black)   (Replaces: 2202882)				$ 297.86
8	2159061		Door Gasket, Magnetic (mist Beige)   (Replaces: 2202875)			Immediately	$ 165.30
9	2213333		Endcap (white)		Appelez-nous	-
9	2213334		Endcap (biscuit)		Appelez-nous	-
9	2221628		Endcap (black)		Appelez-nous	-
20	2171064		Bin, Door Shelf (2)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2195948)				$ 103.27
22	2218122		Door, Compartment		Appelez-nous	-
24	2204840		Hole Plug, Handle (black)				$ 33.23
24	2204838		Hole Plug, Handle (biscuit)		Appelez-nous	-
24	2204837		Hole Plug, Handle (white)				$ 27.77
25	2165792		Butter, Dish		Appelez-nous	-
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171062		Bin, Door Shelf (1)				$ 40.08
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2193409		Beverage Holder				$ 48.13

    View Diagram in Separate Window       Print Part List
