SELECT A DIAGRAM

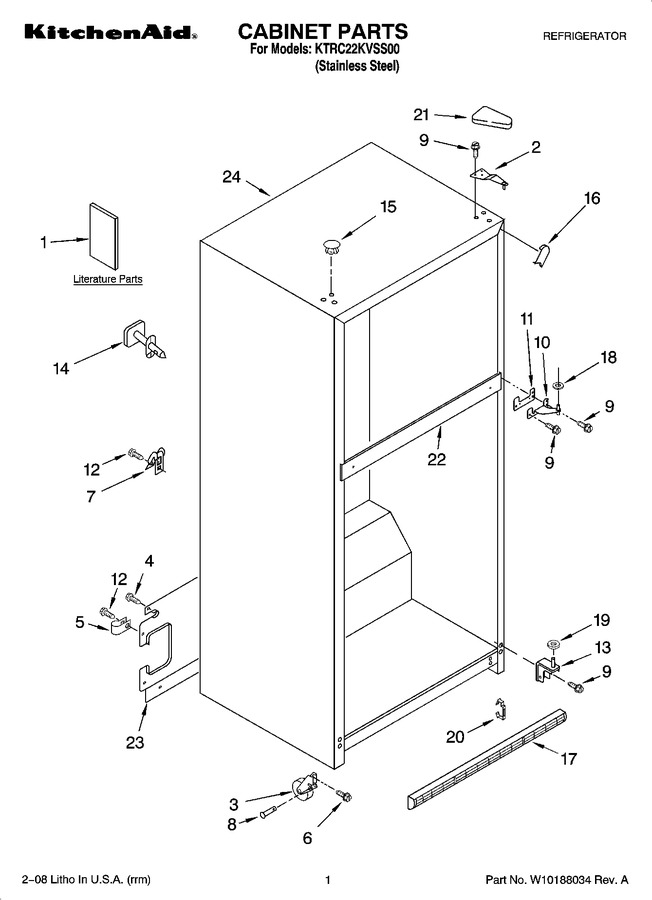

01 - Cabinet Parts


02 - Liner Parts


03 - Shelf Parts


04 - Refrigerator Door Parts


05 - Unit Parts


06 - Freezer Door Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	W10142142		Service & Wiring Sheet		Appelez-nous	-
1	W10181229		Energy Label		Appelez-nous	-
1	2314464		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2189410)			Immediately	$ 107.48
3	WP2166108		Roller-front (2)   (Replaces: 2166108)			Immediately	$ 31.28
4	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
5	WP488366		Clamp, Tube (water Supply Line)   (Replaces: 489385)				$ 10.73
6	WP3400504		Screw   (Replaces: 3400504)				$ 6.80
7	549193		Clamp-cord				$ 12.65
8	W11594405		Rivet   (Replaces: 2179826)			Immediately	$ 17.21
9	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
10	WP2254618		Hinge, Center   (Replaces: 2254618)			Immediately	$ 82.82
11	WP2183852		Shim, Hinge Center   (Replaces: 2183852)				$ 10.06
12	WP489464		Screw   (Replaces: 8281265)			Immediately	$ 7.54
13	WP2254473		Hinge Butt   (Replaces: 2254473)				$ 8.35
15	WP2183998		Hole Plug (6) (black)   (Replaces: 2183998)				$ 17.11
16	W11252732		Corner Filler (2) (black)   (Replaces: 2201017)				$ 11.76
17	2254315		Grille (includes Illus. 20) (black)				$ 41.54
18	WP489467		Washer-plain   (Replaces: 489341)			Immediately	$ 10.28
19	WP487576		Washer-nylon   (Replaces: 487576)			Immediately	$ 9.67
20	2189356		Clip-grille (2)				$ 5.70
21	WP2213363		Cover, Hinge (black)   (Replaces: 2213363)			Immediately	$ 17.21
23	2254576		Cover, Unit				$ 48.13

    View Diagram in Separate Window       Print Part List
