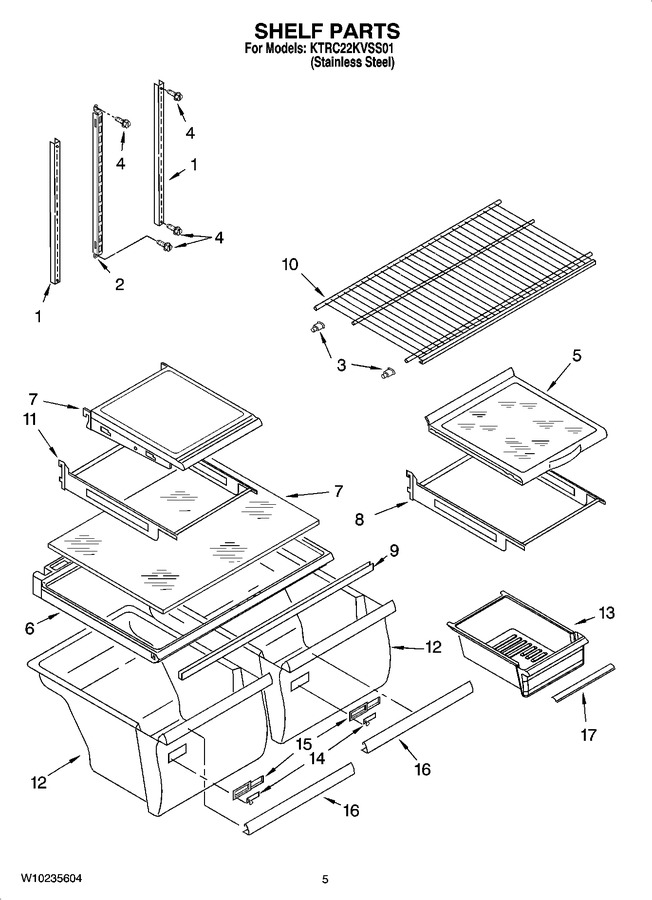

03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 4 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 5 | WP999520 | Shelf Assembly (Replaces: 2225721) |
|
$ 246.26 | |||||
| 6 | WP2314549 | Crisper Cover (Replaces: 2314504) |
|
$ 251.19 | |||||
| 7 | WP2176225 | Glass, Crisper Cover (Replaces: 2210573) |
|
$ 237.97 | |||||
| 8 | 2205162 | Frame Assembly, Meat Shelf |
|
$ 83.71 | |||||
| 9 | WP2172748 | Crisper Support (Replaces: 2314478) |
|
$ 91.87 | |||||
| 10 | 2189454 | Shelf, Freezer |
|
- | |||||
| 11 | 2225698 | Frame Assy- Cantilever |
|
- | |||||
| 12 | W10854037 | Pan, Crisper (includes Illus. 14,15 & 16) (Replaces: 2218139) |
|
Immediately | $ 161.27 | ||||
| 13 | WP2218132K | Pan, Meat (Replaces: 2218132) |
|
Immediately | $ 154.29 | ||||
| 14 | WP2176222 | Slide, Crisper (Replaces: 2176222) |
|
$ 27.35 | |||||
| 15 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 14.23 | |||||
| 16 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 78.00 | |||||
| 17 | 2176357 | Trim, Meat Pan |
|
$ 33.74 |
