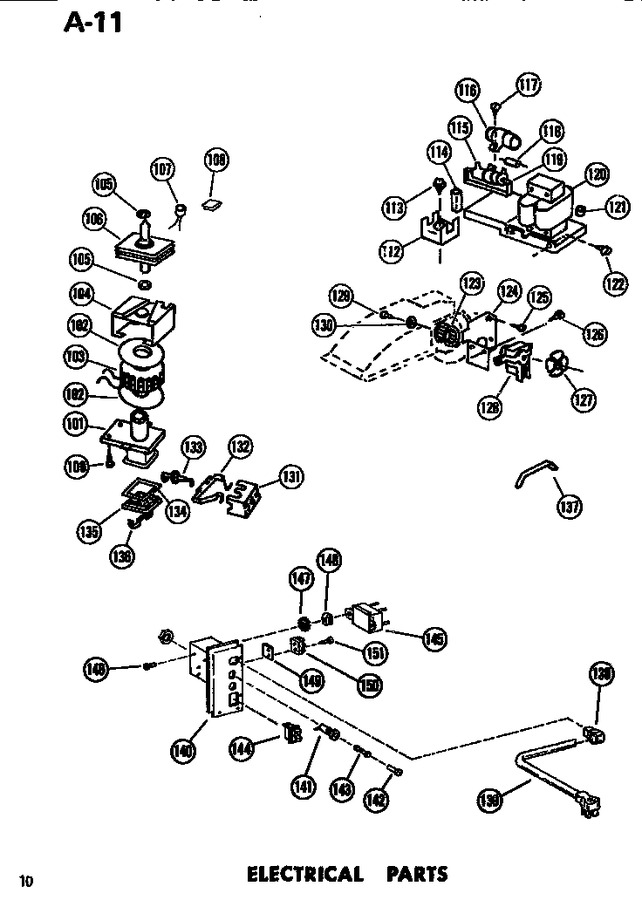

02 - Electrical
03 - Interior
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 100 | M0216517 | Screw |
|
- | |||||
| 101 | B5663702 | Housing Plate Assy |
|
- | |||||
| 102 | M0274028 | Washer |
|
- | |||||
| 103 | M0370602 | Magnet Coil |
|
- | |||||
| 104 | C3596101 | Support |
|
- | |||||
| 105 | B5621901 | Washer |
|
- | |||||
| 106 | M0371101 | Magnetron |
|
- | |||||
| 107 | M0370403 | Thermal Prot |
|
- | |||||
| 108 | M0115802 | Clip |
|
- | |||||
| 112 | A3165201 | Rectifier-bridge K |
|
- | |||||
| 113 | M0218116 | Screw |
|
- | |||||
| 114 | M0325301 | Insulator, Term. K |
|
- | |||||
| 115 | M0305101 | Resistor,adj |
|
- | |||||
| 116 | M0300201 | Capacitor |
|
- | |||||
| 117 | M0218116 | Screw |
|
- | |||||
| 118 | M0305201 | Resistor |
|
- | |||||
| 119 | A3165001 | Brkt-adj-resistor |
|
- | |||||
| 120 | C3656004 | Transformer |
|
- | |||||
| 121 | WP487939 | Nut (Replaces: M0282015) |
|
$ 7.76 | |||||
| 122 | WP489464 | Screw (Replaces: M0211217) |
|
Immediately | $ 7.54 | ||||
| 123 | B5660901 | Blower Wheel |
|
- | |||||
| 124 | B5657501 | Bracket,motor Mount |
|
- | |||||
| 125 | WP90767 | Screw (Replaces: M0216529) |
|
Immediately | $ 7.43 | ||||
| 126 | M0230017 | Screw,tc |
|
- | |||||
| 127 | B5661801 | Fan Blade |
|
- | |||||
| 128 | M0306702 | Motor, Blower |
|
- | |||||
| 129 | M0202642 | Screw |
|
- | |||||
| 130 | M0272605 | Washer |
|
- | |||||
| 131 | B5656001 | Shield Hv K |
|
- | |||||
| 132 | B5655902 | Clip K |
|
- | |||||
| 133 | A3148801 | Capacitor K |
|
- | |||||
| 134 | A3148701 | Gasket |
|
- | |||||
| 135 | B5647901 | Cover Cap Box K |
|
- | |||||
| 136 | A3145401 | Bale Strap K |
|
- | |||||
| 137 | A3164702 | Retainer Bar |
|
- | |||||
| 138 | A3194801 | Strain Relief |
|
- | |||||
| 139 | B5669001 | Cord, Power |
|
- | |||||
| 140 | B5682401 | Panel, Back, Serial Plate, Str |
|
- | |||||
| 141 | B5681401 | Fuse Holder |
|
- | |||||
| 142 | A3194201 | Cap, Fuse Holder |
|
- | |||||
| 143 | A3194301 | Fuse |
|
- | |||||
| 144 | B5669201 | Switch-power |
|
- | |||||
| 145 | B5651303 | Line Filter |
|
- | |||||
| 146 | M0202516 | Screw A |
|
- | |||||
| 147 | M0272803 | Lock Washer |
|
- | |||||
| 148 | M0288001 | Nut K |
|
- | |||||
| 149 | A3180201 | Insulation Board |
|
- | |||||
| 150 | A3178701 | Terminal Block |
|
- | |||||
| 151 | M0229005 | Screw K |
|
- |
