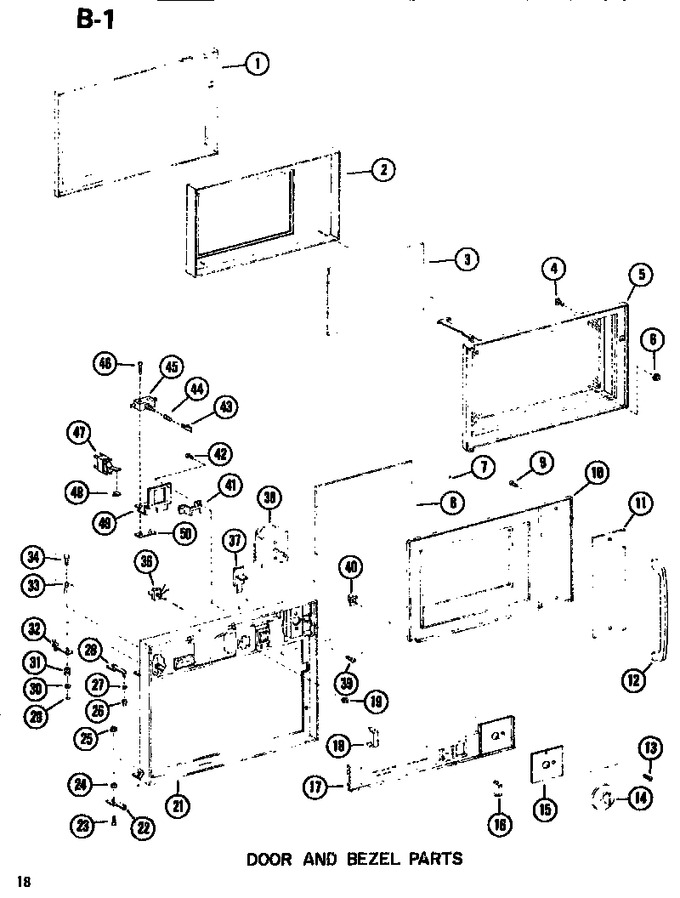

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7104801		Gasket, Door		Appelez-nous	-
2	D7102501		Inner Door		Appelez-nous	-
3	A3166301		Insert,transparent		Appelez-nous	-
4	M0100801		Strike,door Catch		Appelez-nous	-
5	D7110402		Wldmt,door Ring		Appelez-nous	-
6	M0288801		Nut K		Appelez-nous	-
7	M1200101		Roll Pin		Appelez-nous	-
8	A3030302		Gasket		Appelez-nous	-
8	A3164601		Window,door		Appelez-nous	-
9	M0228016		Screw		Appelez-nous	-
10	D7103401		Door, Outer		Appelez-nous	-
11	B5659001		Pan Handle K		Appelez-nous	-
12	B5657201		Door Handle		Appelez-nous	-
13	M0230017		Screw,tc		Appelez-nous	-
14	C3651501		Control Knob		Appelez-nous	-
15	B5659401		Thin Plate K		Appelez-nous	-
16	B5654801		Push Button		Appelez-nous	-
17	R0157121		Escutcheon Control		Appelez-nous	-
18	A3191101		Clip-spring		Appelez-nous	-
19	M0281401		Nut A		Appelez-nous	-
21	D7108601		Bezel, Outer Case		Appelez-nous	-
22	B5663902		Weldment, Hinge Plate Bottom		Appelez-nous	-
23	M0204716		Screw		Appelez-nous	-
24	M0272402		Lock Washer		Appelez-nous	-
25	WP488130		Nut   (Replaces: M0282007)				$ 6.59
26	A3168101		See Svc Ltr Cr-163d		Appelez-nous	-
27	M0274032		Washer Non-metal		Appelez-nous	-
28	B5657902		Hinge Plate		Appelez-nous	-
29	A3171501		Clip,hairpin		Appelez-nous	-
30	M0270504		Washer		Appelez-nous	-
31	M0590402		Roller		Appelez-nous	-
32	A3173102		Door Closure K		Appelez-nous	-
33	A3179301		Spring K		Appelez-nous	-
34	A3166901		Pin,shoulder		Appelez-nous	-
36	A3090802		Switch,oven Light		Appelez-nous	-
37	B5654701		Door Latch		Appelez-nous	-
38	C3658005		Timer		Appelez-nous	-
39	M0202533		Screw K		Appelez-nous	-
40	M0100702		Catch, Door Strike		Appelez-nous	-
41	A3170801		Retainer,latch		Appelez-nous	-
42	M0228015		Screw		Appelez-nous	-
43	A3166502		Bar Lock		Appelez-nous	-
44	A3167601		Spring,lock Bar		Appelez-nous	-
45	M0340702		Switch A		Appelez-nous	-
46	M0202521		Screw		Appelez-nous	-
47	M0340801		Switch, Paddle, Door Lock		Appelez-nous	-
48	M0900003		Gasket A		Appelez-nous	-
49	B5658301		Bracket,switch		Appelez-nous	-
50	M0289502		Speed Nut		Appelez-nous	-
