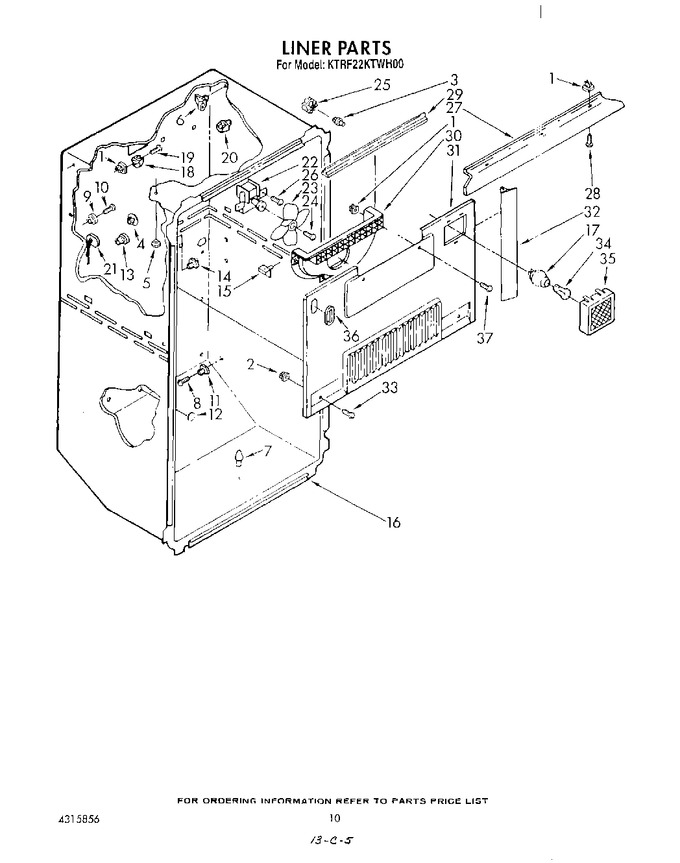

07 - Liner
08 - Freezer Door
09 - Refrigerator Door , Not Illustrated
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 842339 | Grommet |
|
- | |||||
| 2 | 848445 | Grommet |
|
- | |||||
| 3 | 845722 | Screw, Grommet |
|
- | |||||
| 4 | 659598 | Hole Plug (2) |
|
- | |||||
| 5 | 533881 | Grommet |
|
- | |||||
| 6 | 839213 | Stud |
|
$ 265.64 | |||||
| 7 | 836409 | Grommet, Crisper Cover |
|
- | |||||
| 8 | 487547 | Screw, 8-15 X 1 (4) |
|
- | |||||
| 9 | 850738 | Receptacle Cap |
|
- | |||||
| 10 | WP489069 | Screw, 8 X 1/2 (Replaces: 488645) |
|
Immediately | $ 7.56 | ||||
| 11 | 1117317 | Shelf Stud (4) |
|
- | |||||
| 12 | 519890 | Hole, Plug |
|
- | |||||
| 13 | 538449 | Screw Grommet |
|
- | |||||
| 14 | 509108 | Stud |
|
- | |||||
| 15 | 836374 | Retainer, Stud |
|
- | |||||
| 16 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 17 | 850654 | Socket |
|
- | |||||
| 18 | 836492 | Stud, Shelf |
|
- | |||||
| 19 | WP488729 | Screw (Replaces: 487109) |
|
Immediately | $ 7.45 | ||||
| 20 | 523263 | Shelf Stud, Saddle (l.s.) |
|
- | |||||
| 21 | 481658 | Icemaker Harness |
|
- | |||||
| 22 | 482731 | Motor, Fan (Replaces: 938287) |
|
Immediately | $ 83.12 | ||||
| 23 | WP1100938 | Fan, Blade (Replaces: 1100938) |
|
$ 83.03 | |||||
| 24 | 00487887 | Screw, 3-48 X 1/4 (Replaces: 487887) |
|
$ 220.32 | |||||
| 25 | 531933 | Grommet |
|
$ 5.70 | |||||
| 26 | WP488488 | Screw, 8 X 15/16 (Replaces: 488488) |
|
$ 7.67 | |||||
| 27 | 982582 | Baffle, Liner Top |
|
- | |||||
| 28 | WP489069 | Screw, 8 X 1/2 (Replaces: 488772) |
|
Immediately | $ 7.56 | ||||
| 29 | 935068 | Gasket, Sealing |
|
- | |||||
| 30 | 935067 | Scroll, Fan |
|
- | |||||
| 31 | 1107611 | Cover, Evaporator |
|
- | |||||
| 32 | 991074 | Gasket, Evaporator Cover |
|
- | |||||
| 33 | WP488729 | Screw, 8-15 X 1/2 (Replaces: 488992) |
|
Immediately | $ 7.45 | ||||
| 34 | 8009 | Light Bulb (Replaces: 527949) |
|
Immediately | $ 16.80 | ||||
| 35 | 981365 | Light Lens |
|
- | |||||
| 36 | 659776 | Hole Plug, Evaporator |
|
- | |||||
| 37 | W11624204 | Screw, 8 X 1/2 Freezer (Replaces: 486194) |
|
$ 13.25 |
