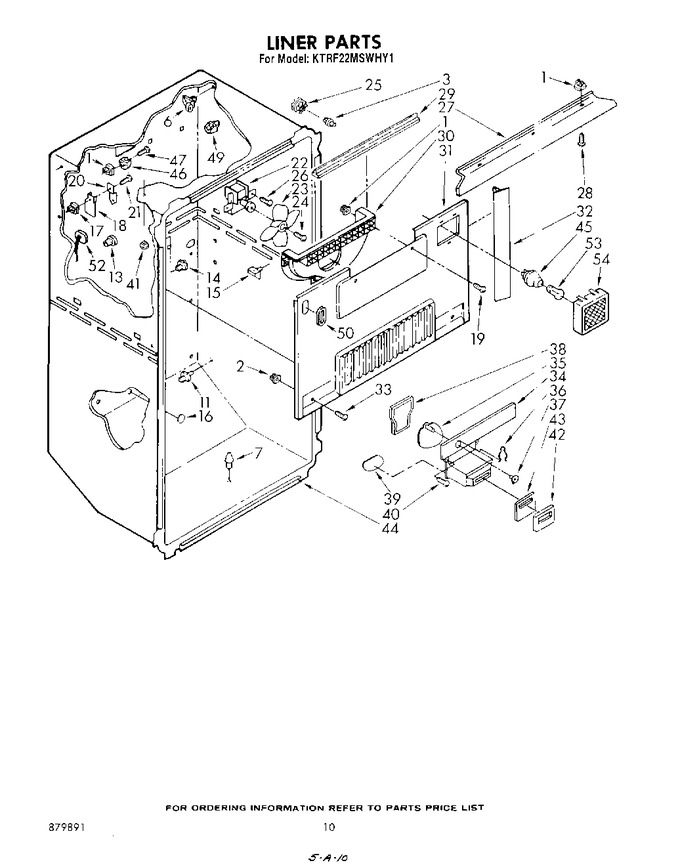

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	842339		Grommet		Appelez-nous	-
2	848445		Grommet		Appelez-nous	-
3	845722		Screw, Grommet		Appelez-nous	-
6	839213		Stud				$ 265.64
7	836409		Grommet, Crisper Cover		Appelez-nous	-
11	1107968		Stud, Shelf (4)		Appelez-nous	-
13	538449		Screw Grommet		Appelez-nous	-
14	509108		Stud		Appelez-nous	-
15	836374		Retainer, Stud		Appelez-nous	-
16	519890		Hole, Plug		Appelez-nous	-
17	983604		Screw, Anchor (3)		Appelez-nous	-
18	538532		Screw Grommet		Appelez-nous	-
19	W11624204		Screw, 8 X 1/2   (Replaces: 486194)				$ 13.25
20	538533		Support, Ice Maker		Appelez-nous	-
21	WP681414		Screw, 10-12 X 3/8 (2)   (Replaces: 488552)			Immediately	$ 7.62
22	482731		Motor, Fan   (Replaces: 938287)			Immediately	$ 83.12
23	WP1100938		Fan, Blade   (Replaces: 1100938)				$ 83.03
24	00487887		Screw, 3-48 X 1/4   (Replaces: 487887)				$ 220.32
25	531933		Grommet				$ 5.70
26	WP488488		Screw, 8 X 15/16   (Replaces: 488488)				$ 7.67
27	982582		Baffle, Liner Top		Appelez-nous	-
28	WP489069		Screw, 8 X 1/2   (Replaces: 488772)			Immediately	$ 7.56
29	935068		Gasket, Sealing		Appelez-nous	-
30	935067		Scroll, Fan		Appelez-nous	-
31	1107611		Cover, Evaporator		Appelez-nous	-
32	991074		Gasket, Evaporator Cover		Appelez-nous	-
33	WP488729		Screw, 8-15 X 1/2   (Replaces: 488992)			Immediately	$ 7.45
34	1107399		Control Panel, Meat Pan		Appelez-nous	-
35	942228		Damper Control		Appelez-nous	-
36	942959		Retainer, Spring		Appelez-nous	-
37	837445		Knob, Control		Appelez-nous	-
38	942231		Seal, Control Panel		Appelez-nous	-
39	942229		Damper, Foam Pad		Appelez-nous	-
40	WP489069		Screw, 8 X 1/2   (Replaces: 488764)			Immediately	$ 7.56
41	533881		Grommet		Appelez-nous	-
42	943024		Backup Plate		Appelez-nous	-
43	943023		Seal, Control Panel		Appelez-nous	-
44	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
45	850654		Socket		Appelez-nous	-
46	836492		Shelf Stud		Appelez-nous	-
47	WP488729		Screw   (Replaces: 487109)			Immediately	$ 7.45
49	523263		Shelf Stud, Saddle (l.s.)		Appelez-nous	-
50	835649		Hole Plug Evaporator		Appelez-nous	-
52	481658		Icemaker Harness		Appelez-nous	-
53	8009		Light Bulb   (Replaces: 527949)			Immediately	$ 16.80
54	981365		Light, Lens Freezer		Appelez-nous	-
