SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf

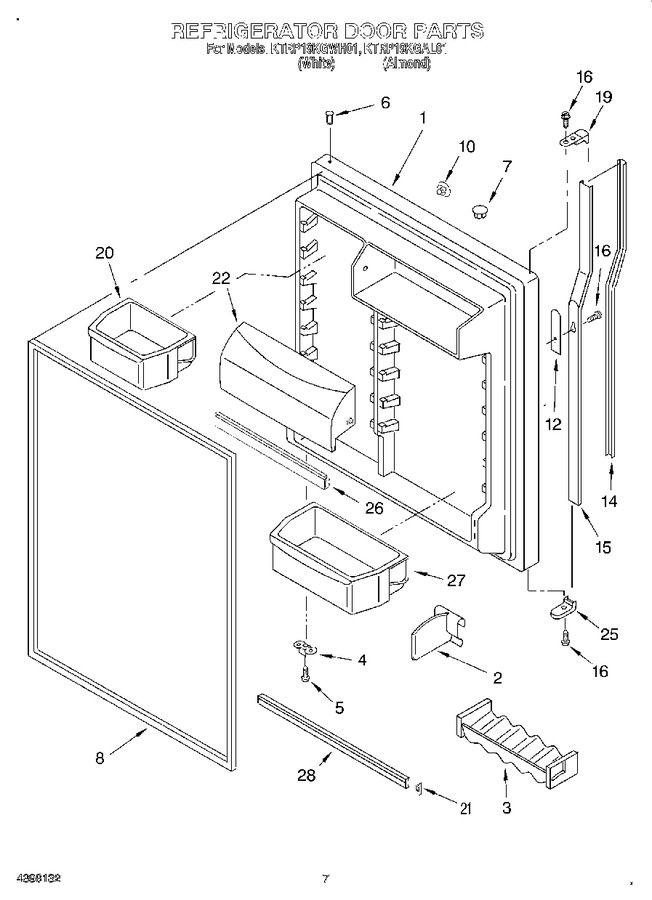

04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183866		Refrigerator Door (includes No.6 & No.8) (white)		Appelez-nous	-
1	2183867		Refrigerator Door (includes No.6 & No.8) (almond)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
3	2193409		Beverage Holder				$ 48.13
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2159057		Door Gasket, Magnetic			Immediately	$ 168.76
10	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
10	2189008		Hole Plug (almond)		Appelez-nous	-
12	2188146		Spacer, Door Handle		Appelez-nous	-
14	2195986		Insert, Handle (white)		Appelez-nous	-
14	2195987		Insert, Handle (almond)		Appelez-nous	-
15	2195993N		Retainer, Insert (almond)		Appelez-nous	-
15	2195993W		Retainer, Insert (white)				$ 40.32
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
19	2195995N		Endcap (almond)		Appelez-nous	-
19	2195995W		Endcap (white)				$ 10.04
20	2171065		Bin, Door Shelf (3)		Appelez-nous	-
21	WP2156006		Trim, Plug   (Replaces: 2156006)			Immediately	$ 11.51
22	2182399		Door, Compartment		Appelez-nous	-
25	2195991		Endcap, Bottom (almond)		Appelez-nous	-
25	2195990		Endcap, Bottom (white)				$ 9.50
26	2159124		Gasket, Door Compartment		Appelez-nous	-
27	2171062		Bin, Door				$ 40.08
28	WPW10421484		Door Trim   (Replaces: 2195949)				$ 122.63
100	2199044		Featurepak (includes 2, 3, 13, 20, 21, 22, 26, 27, 28) Also See Frz. Dr. & Shelf Parts Pgs.		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
