SELECT A DIAGRAM
01 - Cabinet Parts
02 - Liner Parts

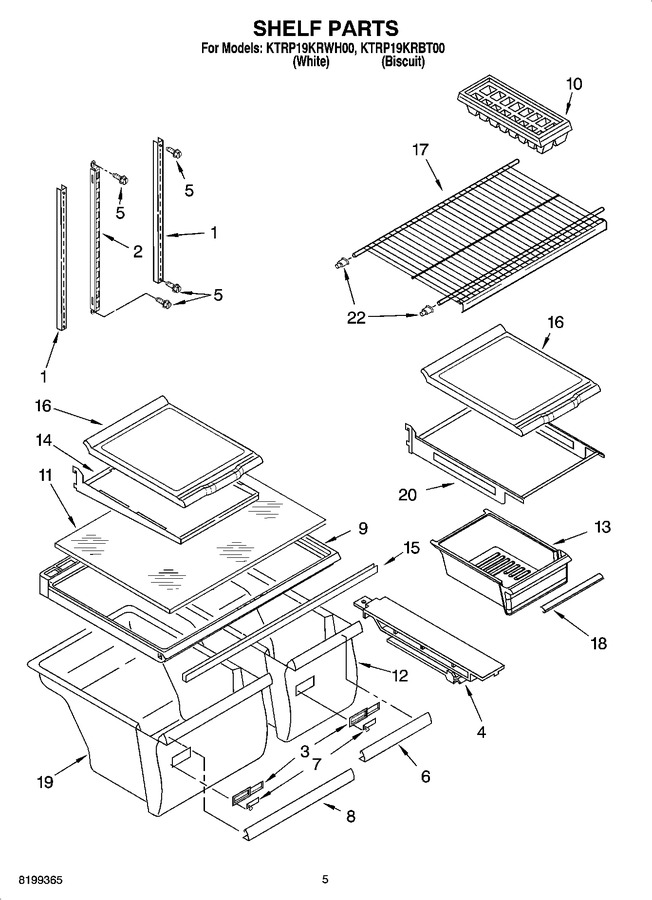

03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Unit Parts
06 - Freezer Door Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | WP2176222 | Slide, Humidity (Replaces: 2176222) |
|
$ 27.35 | |||||
| 4 | WP2163835 | Track, Center (crisper) (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 6 | 2195340 | Trim, Crisper Pan |
|
$ 7.07 | |||||
| 7 | W11819839 | Body, Humidity Control (Replaces: 2212446) |
|
$ 14.23 | |||||
| 8 | WP2195341 | Trim, Crisper Pan (Replaces: 2195341) |
|
$ 78.00 | |||||
| 9 | WP2314548 | Crisper Cover (Replaces: 2205374) |
|
$ 233.85 | |||||
| 10 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 43.06 | ||||
| 11 | WP2169921 | Glass, Crisper Cover (Replaces: 2205376) |
|
$ 233.04 | |||||
| 12 | W10856580 | Pan, Crisper (10 Inch) (includes Illus. 3,6 & 7) (Replaces: 2218138) |
|
Immediately | $ 159.33 | ||||
| 13 | WP2218127K | Pan, Meat (Replaces: 2218127) |
|
$ 132.12 | |||||
| 14 | 2225696 | Frame Assembly, Spillguard |
|
- | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 91.87 | |||||
| 16 | 2225715 | Shelf Assembly, Spillguard |
|
- | |||||
| 17 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 111.06 | |||||
| 18 | 2176356 | Trim, Meat Pan |
|
- | |||||
| 19 | W10854037 | Pan, Crisper (13 Inch) (includes Illus. 3,7 & 8) (Replaces: 2218139) |
|
Immediately | $ 161.27 | ||||
| 20 | 2205161 | Frame Assembly, Meat Pan |
|
$ 102.93 | |||||
| 22 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 |
