SELECT A DIAGRAM

01 - Cabinet


02 - Liner

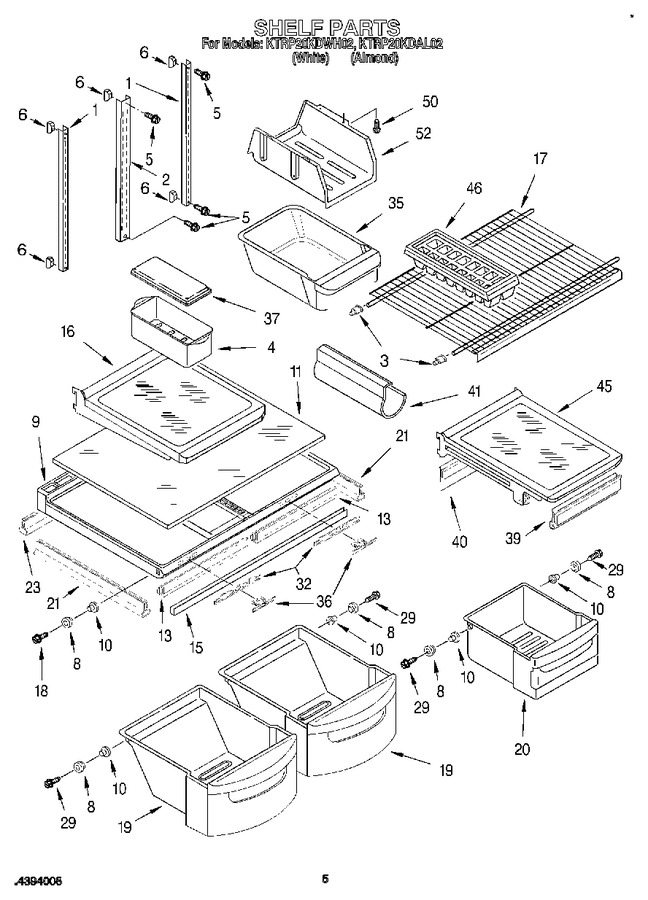

03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 17.59
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
6	520965		Screw, Support				$ 28.22
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2174128		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174141		Glass, Crisper Cover				$ 98.12
13	WP1125528		Gasket, Crisper Cover (front) (2)   (Replaces: 2179213)				$ 145.52
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 91.87
16	2174030		Shelf Assembly, Spillguard (3)		Appelez-nous	-
17	2163830		Shelf, Freezer		Appelez-nous	-
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.22
19	2174062		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174080		Pan, Meat (includes Rollers)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
23	2179216		Gasket, Crisper Cover (rear) (2)		Appelez-nous	-
29	WP489261		Screw   (Replaces: 489261)				$ 7.50
32	2174257		Slide, Humidity		Appelez-nous	-
35	2174124		Pan, Ice Cube		Appelez-nous	-
36	2174253		Button, Humidity Control		Appelez-nous	-
37	2169935		Cover		Appelez-nous	-
39	2174396		Gasket, Front		Appelez-nous	-
40	2174397		Gasket, Rear		Appelez-nous	-
41	W10777924		Wine Rack Assembly   (Replaces: 2179375)				$ 22.30
45	2174384		Shelf Assembly, Spillguard (incl. No.39 & No.40)		Appelez-nous	-
46	WP841180A		Ice Cube Tray   (Replaces: 841180)			Immediately	$ 43.06
50	WP489442		Screw   (Replaces: 489438)			Immediately	$ 10.34
52	2172569		Shelf, Ice Tray		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
