SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Icemaker


07 - Freezer Door, Lit/optional

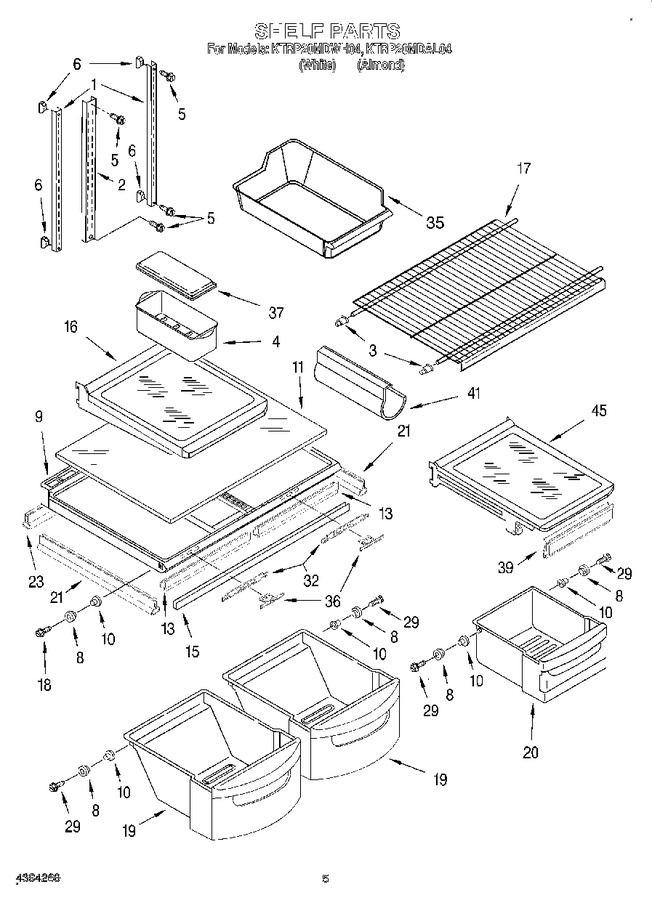

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	520965		Screw, Support				$ 31.35
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2174128		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174141		Glass, Crisper Cover				$ 98.12
13	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179213)				$ 161.69
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2174030		Shelf Assembly, Spillguard (3)		Appelez-nous	-
17	2184566		Shelf, Freezer		Appelez-nous	-
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
19	2174062		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174080		Pan, Meat (includes Rollers)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
23	2179216		Gasket, Crisper Cover (rear) (2)		Appelez-nous	-
29	WP489261		Screw   (Replaces: 489261)				$ 8.33
32	2174257		Slide, Humidity		Appelez-nous	-
35	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
36	2174253		Button, Humidity Control		Appelez-nous	-
37	2169935		Cover		Appelez-nous	-
39	2174396		Gasket, Front		Appelez-nous	-
41	W10777924		Wine Rack Assembly   (Replaces: 2179404)				$ 24.78
45	2190504		Shelf Assembly, Spillguard (incl. No.39 & No.40)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
