SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner

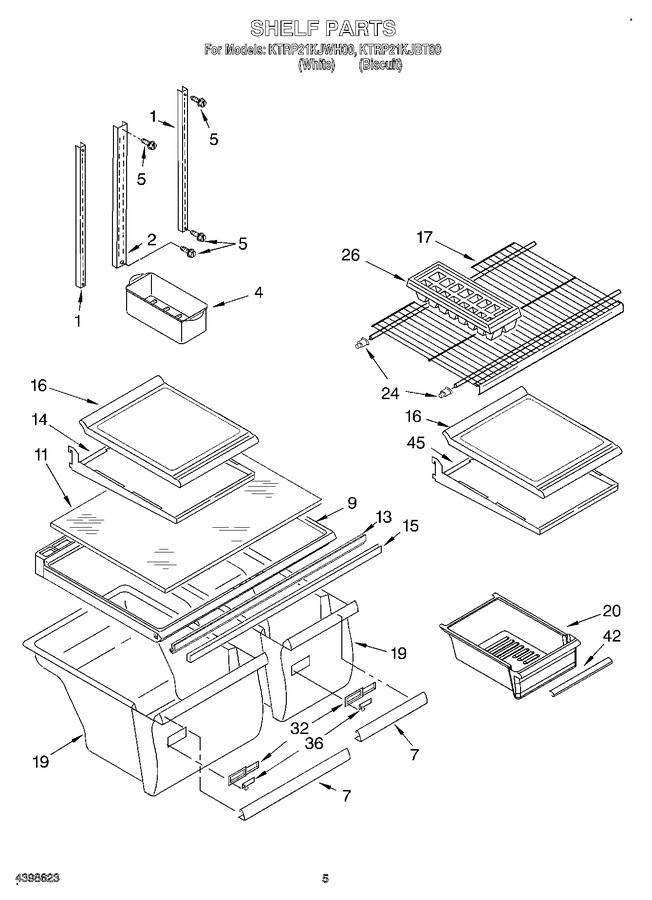

03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2210522		Shelf, Ladder (2)				$ 44.10
2	2202821		Shelf, Ladder Center		Appelez-nous	-
4	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
5	WP489478		Screw   (Replaces: 489478)				$ 8.18
7	WP2195341		Trim, Pan   (Replaces: 2195341)				$ 86.67
9	WP2314549		Crisper Cover   (Replaces: 2210528)				$ 279.10
11	2205377		Glass, Crisper Cover		Appelez-nous	-
13	2172684		Gasket, Crisper Cover (front) (2)		Appelez-nous	-
14	2174447		Frame Assembly, Spillgaurd				$ 79.10
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	WP999520		Shelf Assembly, Spillguard   (Replaces: 999530)				$ 273.62
17	2184667		Shelf, Freezer		Appelez-nous	-
19	W10854037		Pan, Crisper   (Replaces: 2201027)			Immediately	$ 179.19
20	WP2218132K		Pan, Meat   (Replaces: 2201032)			Immediately	$ 171.43
24	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
26	WP841180A		Ice Tray   (Replaces: 841180)			Immediately	$ 47.84
32	W11819839		Body, Humidity Control   (Replaces: 2176223)				$ 15.81
36	WP2176222		Slide, Humidity Control   (Replaces: 2176222)				$ 27.35
42	2176357		Window, Meat Pan				$ 33.74
45	2179717		Frame Assembly, Meat		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
