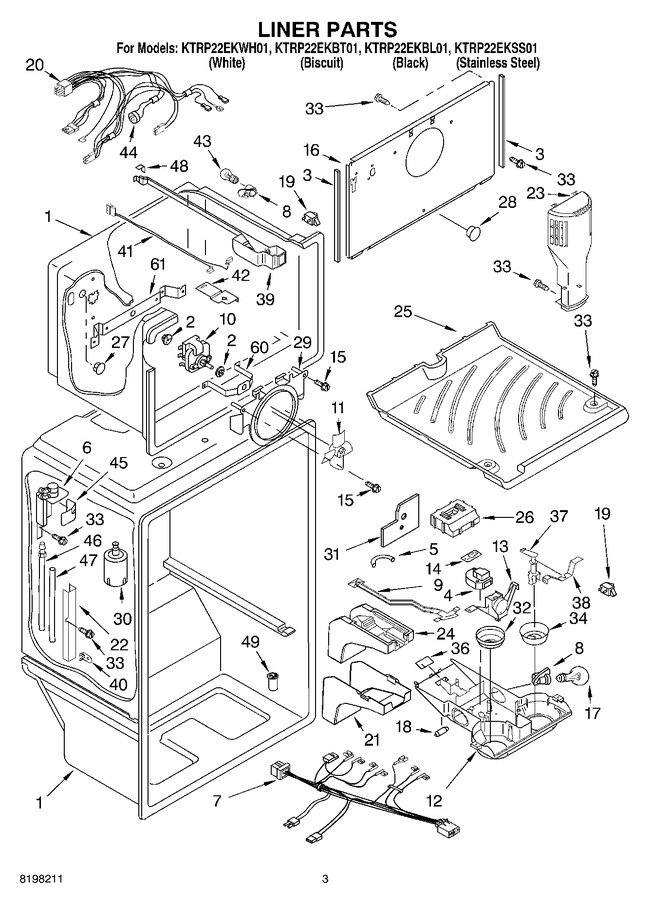

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Liner (not A Serviceable Part) |
|
- | |||||
| 2 | WP2264462 | Grommet (2) (Replaces: 2197380) |
|
Immediately | $ 46.17 | ||||
| 3 | WP2254360 | Gasket, Evaporator Cover (2) (Replaces: 2221653) |
|
$ 28.12 | |||||
| 4 | W10822278 | Timer, Defrost (Replaces: 2188376) |
|
Immediately | $ 34.44 | ||||
| 5 | 2212485 | Thermostat Tube Barrier |
|
$ 5.92 | |||||
| 6 | 2210510 | Bracket Assembly, Water Filter |
|
- | |||||
| 7 | 2187308 | Wire Assembly Control Box |
|
- | |||||
| 8 | 4387478 | Socket, Light (2) (Replaces: 2162085) |
|
Immediately | $ 115.67 | ||||
| 9 | 2179858 | Damper, Air (slide) |
|
- | |||||
| 10 | WPW10189703 | Fan Motor (Replaces: 2214986) |
|
Immediately | $ 76.37 | ||||
| 11 | WP2163777 | Fan Blade (Replaces: 2163777) |
|
Immediately | $ 107.61 | ||||
| 12 | 2210530 | Control Box |
|
- | |||||
| 13 | 2210491 | Thermostat Assembly (includes Items 5 & 18) |
|
$ 112.84 | |||||
| 14 | 2176341 | Clip, Defrost Timer |
|
- | |||||
| 15 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 7.55 | ||||
| 16 | 2201180 | Cover, Evaporator |
|
- | |||||
| 17 | 8009 | Light Bulb (2) (Replaces: 527949) |
|
Immediately | $ 18.67 | ||||
| 18 | 2200831 | Weight, Thermal |
|
- | |||||
| 19 | W11384469 | Rocker Arm Switch (2) (Replaces: 1118894) |
|
Immediately | $ 39.09 | ||||
| 20 | 2187572 | Wire Assembly, Freezer Compartment |
|
- | |||||
| 21 | 2176281 | Cover, Air Diffuser |
|
$ 41.64 | |||||
| 22 | 2210521 | Cover, Tubing |
|
- | |||||
| 23 | 2182340 | Air Tower |
|
$ 43.02 | |||||
| 24 | WP2189452 | Air Diffuser, Bottom (Replaces: 2189452) |
|
Immediately | $ 131.03 | ||||
| 25 | 2184617 | Freezer Floor |
|
- | |||||
| 26 | 2204690 | Air Diffuser, Top |
|
$ 135.07 | |||||
| 27 | 940014 | Plug, Hole |
|
$ 18.33 | |||||
| 28 | WP941839 | Plug, Hole (Replaces: 941839) |
|
$ 8.03 | |||||
| 29 | 2218696 | Bracket, Fan Motor |
|
- | |||||
| 30 | 2213384 | Cartridge, Filter |
|
- | |||||
| 31 | 2204639 | Shield, Heat |
|
- | |||||
| 32 | W10829461 | Knob, Thermostat (Replaces: 2200863) |
|
$ 31.91 | |||||
| 33 | WP489478 | Screw (Replaces: 489478) |
|
$ 8.18 | |||||
| 34 | 2176297 | Knob, Damper |
|
- | |||||
| 36 | WP2205079 | Seal, Rearthermostat (Replaces: 2205079) |
|
$ 10.01 | |||||
| 37 | 2179859 | Damper Post |
|
- | |||||
| 38 | 2163810 | Bracket, Damper Knob |
|
$ 6.01 | |||||
| 39 | 2201153 | Housing Base |
|
- | |||||
| 40 | 2210563 | Clip, Retainer |
|
- | |||||
| 41 | 2187601 | Wiring Harness, Freezer Light |
|
- | |||||
| 42 | 2193491 | Electrical Shield, Freezer Light |
|
$ 5.81 | |||||
| 43 | 4396822 | Light Bulb (Replaces: 850166) |
|
Immediately | $ 13.58 | ||||
| 44 | WP4387503 | Defrost Bi-metal (Replaces: 2221677) |
|
Immediately | $ 47.89 | ||||
| 45 | 2210504 | Cover, Filter |
|
- | |||||
| 46 | W10823511 | Tube, Filter Outlet (Replaces: 2181943) |
|
Immediately | $ 32.41 | ||||
| 47 | 2210518 | Tube, Filter Inlet |
|
- | |||||
| 48 | 2166284 | Gasket, Rear |
|
$ 6.06 | |||||
| 49 | WP2210509 | Body, Valve Tube (Replaces: 2171931) |
|
$ 99.15 | |||||
| 60 | 2214979 | Bracket, Fan Front |
|
$ 56.05 | |||||
| 61 | 2214976 | Bracket, Fan Rear |
|
$ 29.44 |
