SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf

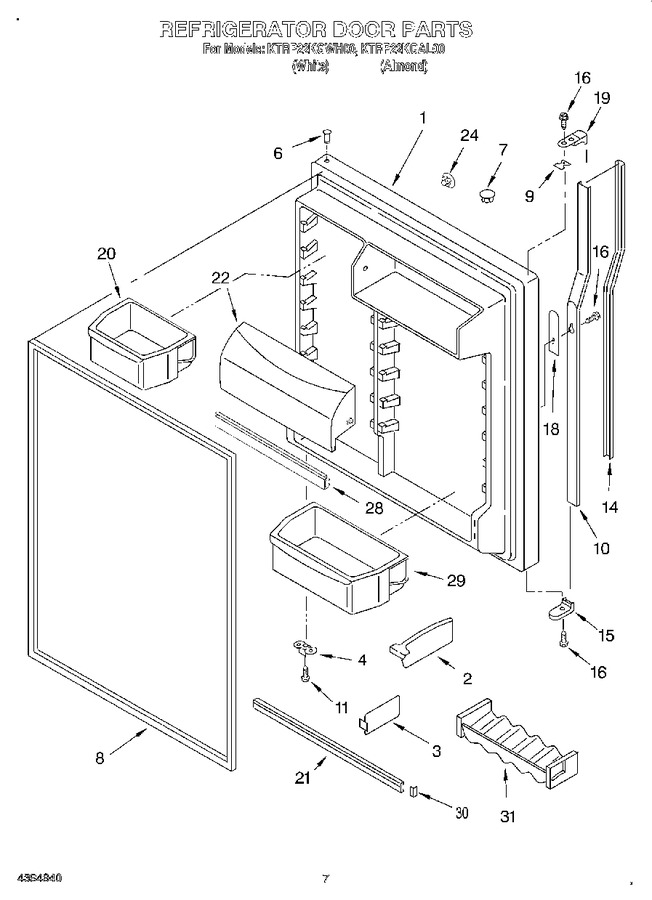

04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2198970		Refrigerator Door (includes No.8) (white)		Appelez-nous	-
1	2198971		Refrigerator Door (includes No.8) (almond)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
3	1123293		Divider, Door Shelf		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	989196		Hole Plug (almond)		Appelez-nous	-
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
8	2159061		Door Gasket, Magnetic			Immediately	$ 165.30
9	2151813		Shim, Handle		Appelez-nous	-
10	2195993W		Retainer, Insert (white)				$ 40.32
10	2195993N		Retainer, Insert (almond)		Appelez-nous	-
11	WP8281206		Screw   (Replaces: 489028)				$ 7.53
14	2195987		Insert, Handle (almond)		Appelez-nous	-
14	2195986		Insert, Handle (white)		Appelez-nous	-
15	2195990		Endcap, Handle (white)				$ 9.50
15	2195991		Endcap, Handle (almond)		Appelez-nous	-
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
18	2188146		Spacer, Handle		Appelez-nous	-
19	2195995W		Endcap (white)				$ 10.04
19	2195995N		Endcap (almond)		Appelez-nous	-
20	2171064		Bin, Door Shelf (2)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2195948)				$ 103.27
22	2182399		Door, Compartment		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.99
24	2189008		Hole Plug, Handle (almond)		Appelez-nous	-
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171062		Bin, Door Shelf				$ 40.08
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2193409		Beverage Holder				$ 48.13
32	2199050		Featurepak (includes 3, 20, 21, 22, 23, 28, 29, 30 & 31. See Also Shelf Parts And Freezer Door Parts		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
