SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional

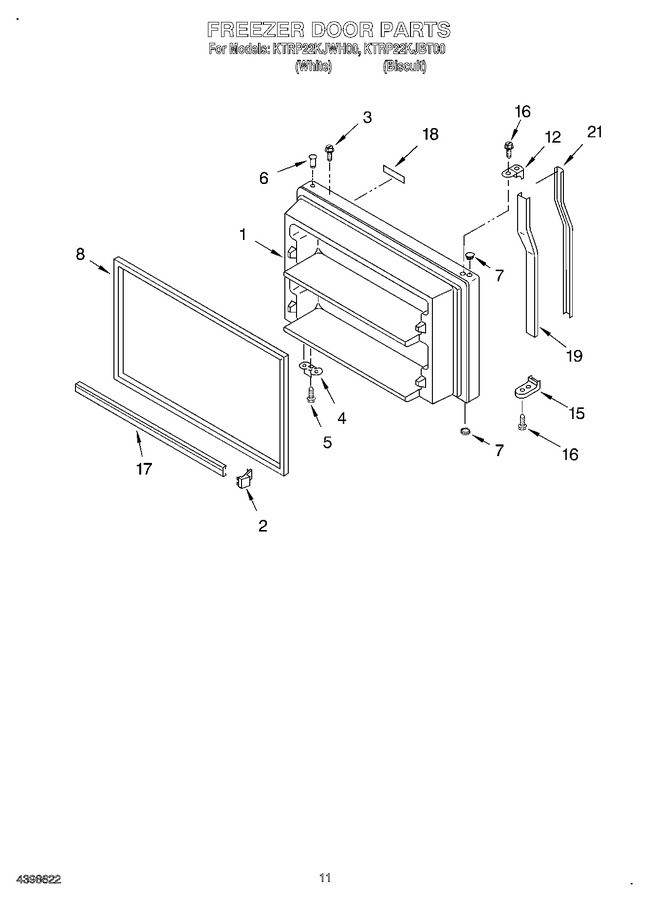

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183862		Freezer Door (includes No.8) (white)		Appelez-nous	-
1	2200928		Freezer Door (includes No.8) (biscuit)		Appelez-nous	-
2	WP2195916K		Endcap, Trim (4)   (Replaces: 2195916)			Immediately	$ 13.18
3	WP8281206		Screw 8 X 1/2   (Replaces: 489028)				$ 8.37
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 13.37
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 8.24
6	WP2183003		Thimble   (Replaces: 2183003)				$ 8.14
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.99
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 8.19
8	2159060		Door Gasket, Magnetic (mist Beige)				$ 336.01
8	2177310		Door Gasket, Magnetic (black)				$ 335.31
12	2195994W		Endcap, Handle (white)				$ 17.06
12	2195994T		Endcap, Handle (biscuit)				$ 10.55
15	2195995T		Endcap (biscuit)		Appelez-nous	-
15	2195995W		Endcap (white)				$ 10.04
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 7.55
17	2195947		Trim, Door Shelf (2)				$ 50.94
18	2205367		Nameplate (white)		Appelez-nous	-
18	2205368		Nameplate (biscuit)		Appelez-nous	-
19	2195992T		Insert, Retainer (biscuit)		Appelez-nous	-
19	2195992W		Insert, Retainer (white)		Appelez-nous	-
21	833938		Kit, Terminal Connector				$ 8.47
21	4392901		Paint, Pressurized Spray (12oz.) (biscuit)		Appelez-nous	-
21	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 123.84
21	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 182.65
21	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 12.78
21	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
21	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 12.30
21	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
21	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 243.14
21	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 243.14
21	350942		Primer White (13 Oz. Spray Can)				$ 94.14
21	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 59.89
21	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 40.12
21	4392899		Brush Touch-up Kit (biscuit			Immediately	$ 27.77
21	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
21	4392900		Paint, Bulk (1 Qt.) (biscuit) (uncut)		Appelez-nous	-
21	799340		Enamel, Black (1 Qt. Uncut)		Appelez-nous	-
21	1117510		Torx Key				$ 5.84
21	2195984		Insert, Handle (white)		Appelez-nous	-
21	2200933		Insert, Handle (biscuit)		Appelez-nous	-
21	212643		Sealer, Gum (4 Feet)			Immediately	$ 96.42
21	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
21	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 243.14
21	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
21	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 51.75
21	606755		Bag, Insulation (36-5/8`` X 46``)				$ 82.37
21	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
21	799832		Kit. Porcelain Repair (white)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
