SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Liner


03 - Shelf

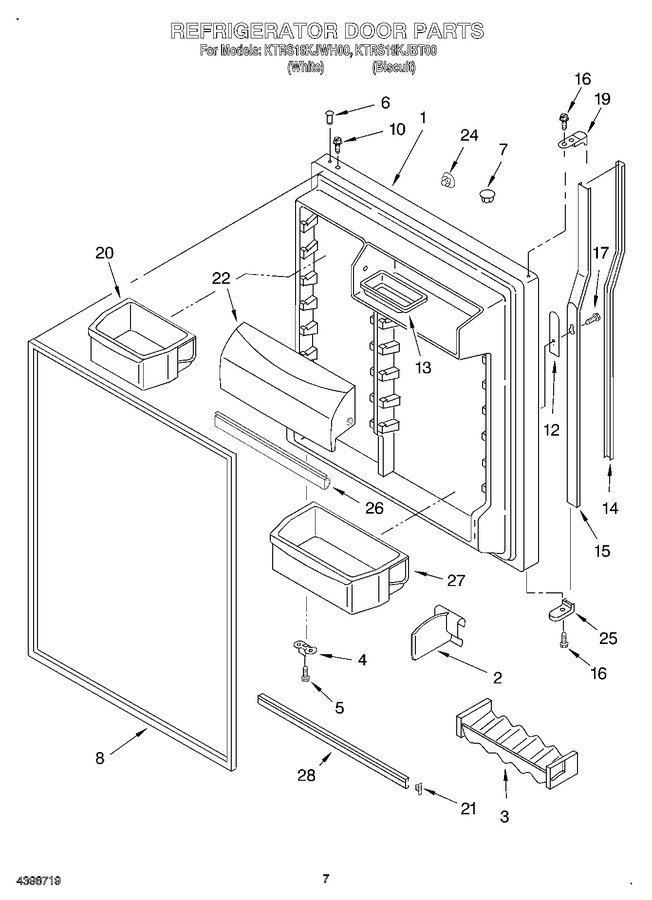

04 - Refrigerator Door


05 - Unit


06 - Freezer Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2205131		Refrigerator Door (biscuit (includes No.6 & No.8))		Appelez-nous	-
1	2183866		Refrigerator Door (white)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
3	2193409		Beverage Holder				$ 48.13
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.19
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
8	2159057		Door Gasket, Magnetic (mist Beige)			Immediately	$ 168.76
10	WP8281206		Screw   (Replaces: 489028)				$ 7.53
12	2188146		Spacer, Door Handle		Appelez-nous	-
13	2165792		Tray, Butter		Appelez-nous	-
14	2195986		Insert, Handle (white)		Appelez-nous	-
14	2200932		Insert, Handle (biscuit)		Appelez-nous	-
15	2188222W		Retainer, Insert (white)		Appelez-nous	-
15	2188222T		Retainer, Insert (biscuit)		Appelez-nous	-
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
17	3400873		Screw		Appelez-nous	-
19	2195995T		Endcap (biscuit)		Appelez-nous	-
19	2195995W		Endcap (white)				$ 10.04
20	2171065		Bin, Door Shelf (3)		Appelez-nous	-
21	WP2156006		Trim, Plug   (Replaces: 2156006)			Immediately	$ 11.51
22	2182399		Door, Compartment		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.99
24	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.17
25	2195990		Endcap, Bottom (white)				$ 9.50
25	2200930		Endcap, Bottom (biscuit)		Appelez-nous	-
26	2159124		Gasket, Door Compartment		Appelez-nous	-
27	2171062		Bin, Door				$ 40.08
28	WPW10421484		Door Trim   (Replaces: 2195949)				$ 122.63

    View Diagram in Separate Window       Print Part List
