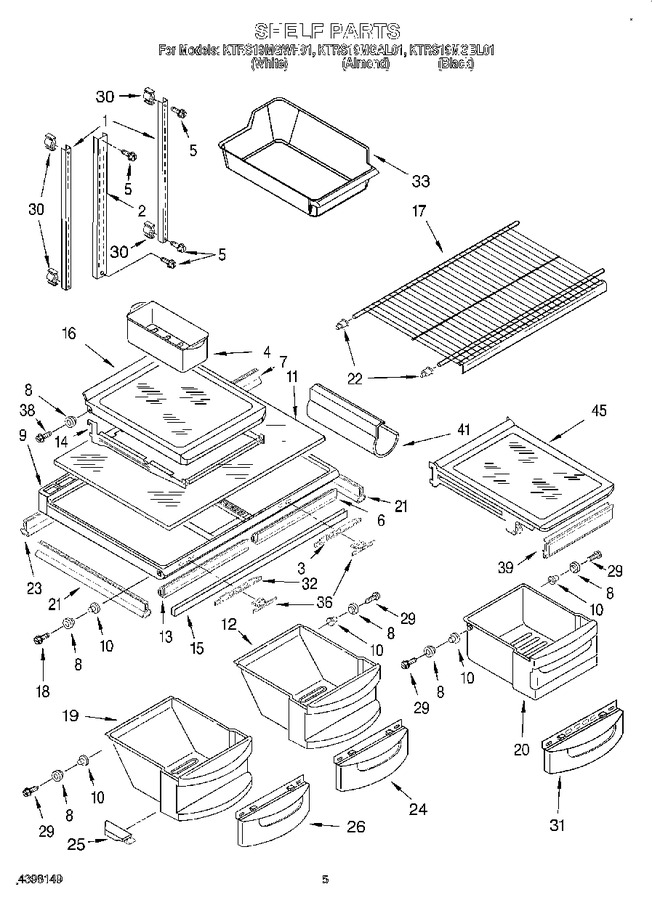

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
3	2174256		Slide, Humidity		Appelez-nous	-
4	W10136387A		Egg Bin   (Replaces: 2182730)				$ 17.59
5	W11544659		Screw   (Replaces: 489415)				$ 12.92
6	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179212)				$ 145.52
7	2179215		Gasket, Crisper Cover (rear)		Appelez-nous	-
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2198759		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174140		Glass, Crisper Cover		Appelez-nous	-
12	2175446		Pan, Crisper (includes Rollers)		Appelez-nous	-
13	WP1125528		Gasket, Crisper Cover (front)   (Replaces: 2179213)				$ 145.52
14	2174011		Frame Assembly, Spillguard		Appelez-nous	-
15	WP2172748		Crisper Support   (Replaces: 2172541)				$ 91.87
16	2174009		Shelf Assembly, Spillguard (3) (includes Rollers)		Appelez-nous	-
17	WP2176275		Shelf, Freezer   (Replaces: 2176275)				$ 111.06
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 10.22
19	2175433		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2175450		Pan, Meat (includes Rollers)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
22	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 13.23
23	2179216		Gasket, Crisper Cover (rear)		Appelez-nous	-
24	2175444		Window, Crisper Pan		Appelez-nous	-
25	2174259		Cap, Crisper Pan (left Side)		Appelez-nous	-
25	2174258		Cap, Crisper Pan (right Side)		Appelez-nous	-
26	2175373		Window, Crisper Pan		Appelez-nous	-
29	WP489261		Screw   (Replaces: 489261)				$ 7.50
30	520965		Screw, Support				$ 28.22
31	2175449		Window, Meat Pan		Appelez-nous	-
32	2174257		Slide, Humidity		Appelez-nous	-
33	2254352A		Ice Bucket   (Replaces: 2176219)				$ 52.78
36	2174253		Button, Humidity Control		Appelez-nous	-
38	489439		Screw		Appelez-nous	-
39	2174394		Gasket, Front		Appelez-nous	-
41	W10777924		Wine Rack Assembly   (Replaces: 2179404)				$ 22.30
45	2190503		Shelf Assembly, Spillguard		Appelez-nous	-
100	2199084		Featurepak (includes 4,8,10, 14,16,20,41,45) Also See Ref. & Frz.dr. Pgs.		Appelez-nous	-
