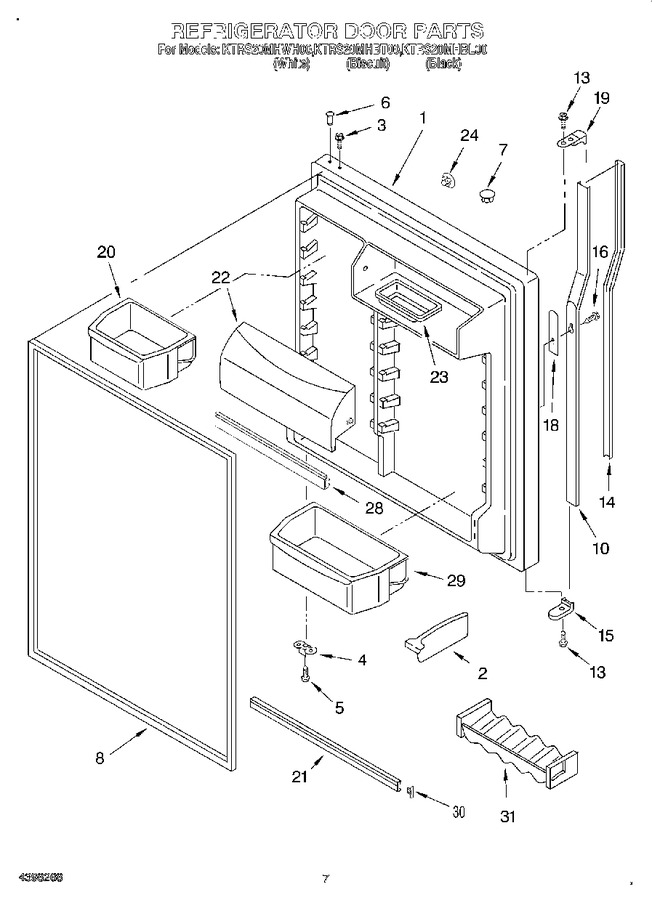

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183935		Refrigerator Door (includes No.6 & No.8) (white)		Appelez-nous	-
1	2200713		Refrigerator Door (includes No.6 & No.8) (black)		Appelez-nous	-
1	2204687		Refrigerator Door (includes No.6 & No.8) (biscuit)		Appelez-nous	-
2	1123293		Divider, Door Bin		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 489028)				$ 7.53
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212651		Hole Plug (black)   (Replaces: 2160808)				$ 21.79
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2200934)				$ 7.19
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
8	2159061		Door Gasket, Magnetic (mist Beige)			Immediately	$ 165.30
8	2177311		Door Gasket, Magnetic (black)				$ 297.86
10	2195993T		Retainer, Insert (biscuit)		Appelez-nous	-
10	2195993B		Retainer, Insert (black)		Appelez-nous	-
10	2195993W		Retainer, Insert (white)				$ 40.32
13	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
14	2200932		Insert, Handle (biscuit)		Appelez-nous	-
14	2188155		Insert, Handle (black)		Appelez-nous	-
14	2195986		Insert, Handle (white)		Appelez-nous	-
15	2195990		Endcap, Bottom (white)				$ 9.50
15	2200930		Endcap, Bottom (biscuit)		Appelez-nous	-
15	2188132		Endcap, Bottom (black)		Appelez-nous	-
16	3400873		Screw		Appelez-nous	-
18	2188146		Spacer, Handle		Appelez-nous	-
19	2195995W		Endcap (white)				$ 10.04
19	2195995B		End Cap (black)				$ 24.15
19	2195995T		Endcap (biscuit)		Appelez-nous	-
20	2171066		Bin, Door Shelf (3)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2195948)				$ 103.27
22	2182399		Door, Compartment		Appelez-nous	-
23	2165792		Tray, Butter		Appelez-nous	-
24	WP2189009		Hole Plug, Handle (black)   (Replaces: 2189009)				$ 6.85
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 2189000)			Immediately	$ 6.99
24	WP2200936		Hole Plug, Handle (biscuit)   (Replaces: 2200936)				$ 7.17
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171063		Bin, Door Shelf (1)		Appelez-nous	-
30	WP2156006		Plug-trim   (Replaces: 2156006)			Immediately	$ 11.51
31	2193409		Beverage Holder				$ 48.13
100	2204676		Featurepak (includes 2, 20, 21, 22, 23, 28, 29, 30) Also See Frz.dr. & Shelf Pgs.		Appelez-nous	-
