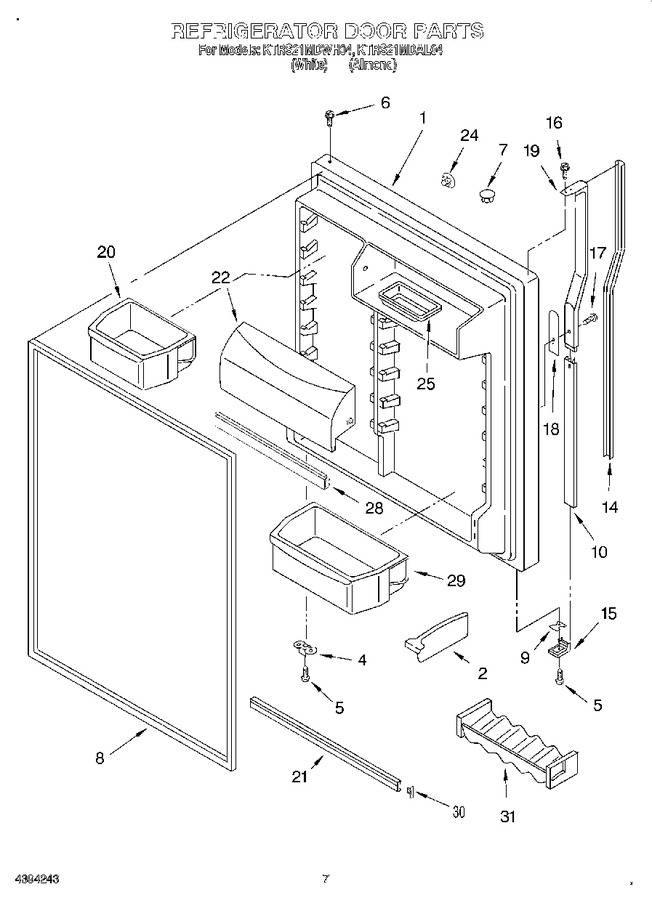

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Icemaker


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2190645		Refrigerator Door (includes No.8) (white)		Appelez-nous	-
1	2190646		Refrigerator Door (includes No.8) (almond)		Appelez-nous	-
2	2171283		Divider, Door Bin		Appelez-nous	-
4	2159368		Bracket, Door (chrome)		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 7.53
7	WP2212648		Hole Plug (white)   (Replaces: 844478)			Immediately	$ 7.37
7	989196		Hole Plug (almond)		Appelez-nous	-
8	2177313		Door Gasket, Magnetic		Appelez-nous	-
9	2151813		Shim, Handle		Appelez-nous	-
10	2168900		Retainer, Insert		Appelez-nous	-
14	2168897		Insert, Handle (almond)		Appelez-nous	-
14	2168896		Insert, Handle (white)		Appelez-nous	-
15	1107236		End Cap, Handle		Appelez-nous	-
16	WP488920		Screw   (Replaces: 489006)				$ 7.18
17	WP488729		Screw   (Replaces: 487909)			Immediately	$ 7.45
18	1107650		Spacer, Handle		Appelez-nous	-
19	2161508		Handle				$ 111.30
20	2171064		Bin, Door Shelf (3)		Appelez-nous	-
21	WPW10421486		Shelf, Trim   (Replaces: 2177261)				$ 103.27
22	2182399		Door, Compartment		Appelez-nous	-
24	WP2189000		Hole Plug, Handle (white)   (Replaces: 1122653)			Immediately	$ 6.99
24	1122654		Hole Plug, Handle (almond)		Appelez-nous	-
25	1125936		Butter, Tray		Appelez-nous	-
28	2159124		Gasket, Door Compartment		Appelez-nous	-
29	2171062		Bin, Door Shelf				$ 40.08
30	2159300		Plug-trim				$ 4.83
31	1125981		Holder, Beverage		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
