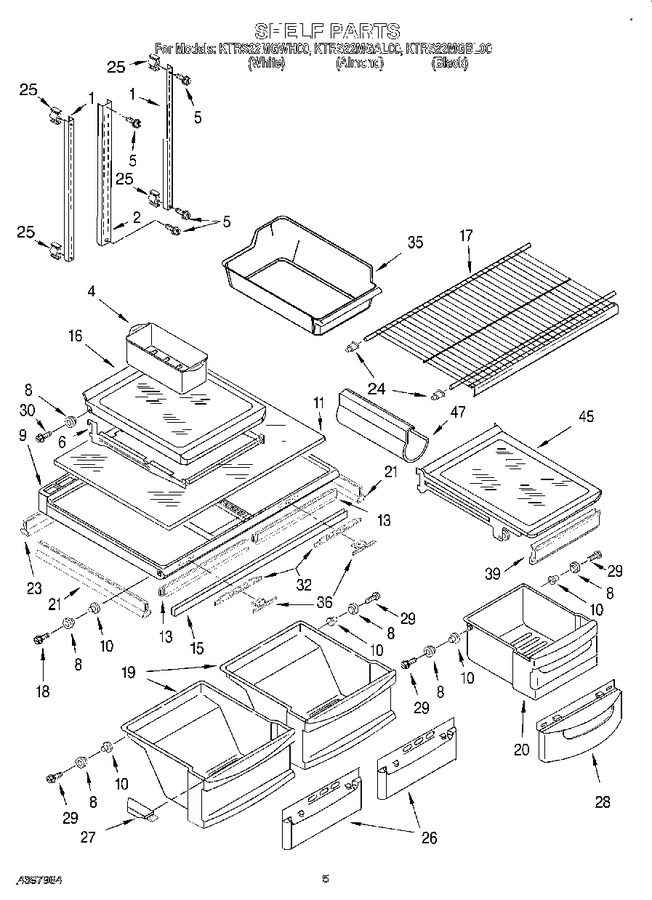

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Refrigerator Door


05 - Unit


06 - Ice Maker


07 - Freezer Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2163756		Shelf, Ladder (2)		Appelez-nous	-
2	2163826		Shelf, Ladder Center		Appelez-nous	-
4	W10136387A		Egg Bin   (Replaces: 2182730)				$ 19.54
5	W11544659		Screw   (Replaces: 489415)				$ 14.35
6	2174014		Frame Assembly, Cantilever		Appelez-nous	-
8	2174388		Roller & Tread Assembly		Appelez-nous	-
9	2198761		Crisper Cover (includes Rollers)		Appelez-nous	-
10	2174478		Eyelet, Roller				$ 5.70
11	2174141		Glass, Crisper Cover				$ 98.12
13	WP1125528		Gasket, Crisper Cover (front) (2)   (Replaces: 2179213)				$ 161.69
15	WP2172748		Crisper, Support   (Replaces: 2163832)				$ 102.08
16	2174012		Shelf Assembly, Spillguard (3) (includes Rollers)		Appelez-nous	-
17	2184667		Shelf, Freezer		Appelez-nous	-
18	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
19	2175433		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2175448		Pan, Meat (includes Rollers)		Appelez-nous	-
21	2179214		Gasket, Crisper Cover (side) (4)		Appelez-nous	-
23	2179216		Gasket, Crisper Cover (rear) (2)		Appelez-nous	-
24	WPW10130299		Cup, Shelf Mtg.   (Replaces: 2163762)			Immediately	$ 14.70
25	2189314		Support		Appelez-nous	-
26	2175373		Window, Crisper		Appelez-nous	-
27	2174258		Cap, Crisper (left Side)		Appelez-nous	-
27	2174259		Cap, Crisper (right Side)		Appelez-nous	-
28	2175445		Window, Meat Pan		Appelez-nous	-
29	WP489261		Screw   (Replaces: 489261)				$ 8.33
30	489439		Screw		Appelez-nous	-
32	2174257		Slide, Humidity		Appelez-nous	-
35	2254352A		Ice Bucket   (Replaces: 2176219)				$ 58.64
36	2174253		Button, Humidity Control		Appelez-nous	-
39	2174396		Gasket, Front		Appelez-nous	-
45	2190504		Shelf Assembly, Spillguard		Appelez-nous	-
47	W10777924		Wine & Egg Rack   (Replaces: 2179404)				$ 24.78
100	2199051		Featurepak (includes 4,6,8, 10,16,20,28,30, 39,45,47) Also See Ref.& Frz.pgs		Appelez-nous	-
