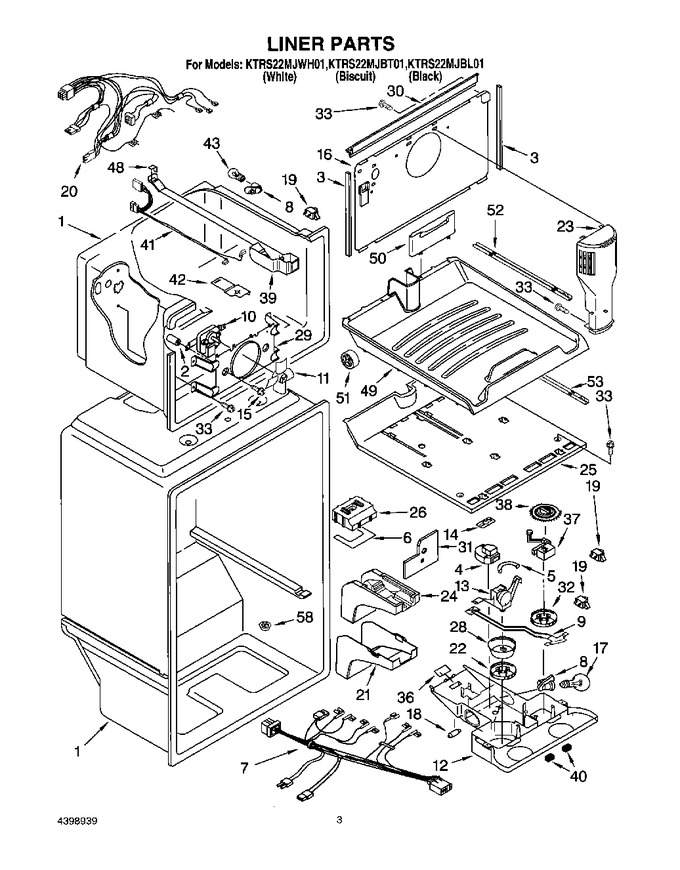

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (side)   (Replaces: 2189269)				$ 25.31
4	W10822278		Timer, Defrost   (Replaces: 2193084)			Immediately	$ 31.00
5	2212485		Thermostat Tube Barrier				$ 5.92
6	2179834		Seal, Air Diffuser		Appelez-nous	-
7	2187306		Wire Assy. Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 104.10
9	2212413		Damper, Air (slide)		Appelez-nous	-
10	2183833		Fan Motor		Appelez-nous	-
11	WP2163777		Blade, Fan   (Replaces: 2163777)			Immediately	$ 96.85
12	2212461		Control Box		Appelez-nous	-
13	2204984		Thermostat Assembly (includes Items 5, 18, & 36)		Appelez-nous	-
14	2176341		Clip, Defrost Timer		Appelez-nous	-
15	489412		Screw		Appelez-nous	-
16	2201180		Cover, Evaporator		Appelez-nous	-
17	8009		Light Bulb (2)   (Replaces: 527949)			Immediately	$ 16.80
18	2200831		Weight, Thermal		Appelez-nous	-
19	W11384469		Rocker Arm Switch (2)   (Replaces: 1118894)			Immediately	$ 35.18
20	2187295		Wire Assembly, Freezer Compartment		Appelez-nous	-
21	2176281		Cover, Air Diffuser				$ 41.64
22	2205094		Knob, Thermostat		Appelez-nous	-
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 117.93
25	2190589		Freezer Floor		Appelez-nous	-
26	2204690		Air Diffuser, Top				$ 135.07
28	WP2184574		Gear Wheel, Thermostat   (Replaces: 2184574)				$ 64.83
29	2200641		Bracket, Fan Motor		Appelez-nous	-
30	WP2254360		Gasket, Evaporator Cover (top)   (Replaces: 2189270)				$ 25.31
31	2204639		Shield, Heat		Appelez-nous	-
32	2204951		Knob, Damper		Appelez-nous	-
33	WP489478		Screw   (Replaces: 489478)				$ 7.36
36	WP2205079		Seal, Rearthermostat   (Replaces: 2205079)				$ 9.01
37	2204991		Control, Freezer		Appelez-nous	-
38	2204992		Gear Wheel, Freezer Control		Appelez-nous	-
39	2201153		Housing Base		Appelez-nous	-
40	2205055		Air Seal, Foam		Appelez-nous	-
41	2187280		Wiring Harness, Freezer Light		Appelez-nous	-
42	2193491		Electrical Shield, Freezer Light				$ 5.81
43	4396822		Bulb, Light   (Replaces: 850166)			Immediately	$ 12.22
48	2166284		Gasket, Rear				$ 6.06
49	2189449		Pullout, Freezer Floor		Appelez-nous	-
50	2198768		Rear Fence Pull-out Freezer Floor				$ 35.55
51	2176246		Roller, Slide		Appelez-nous	-
52	2179713		Side Support, Floor Assembly		Appelez-nous	-
53	2179714		Center Support, Floor Assembly		Appelez-nous	-
58	WP2210509		Release Valve   (Replaces: 2171931)				$ 89.24
