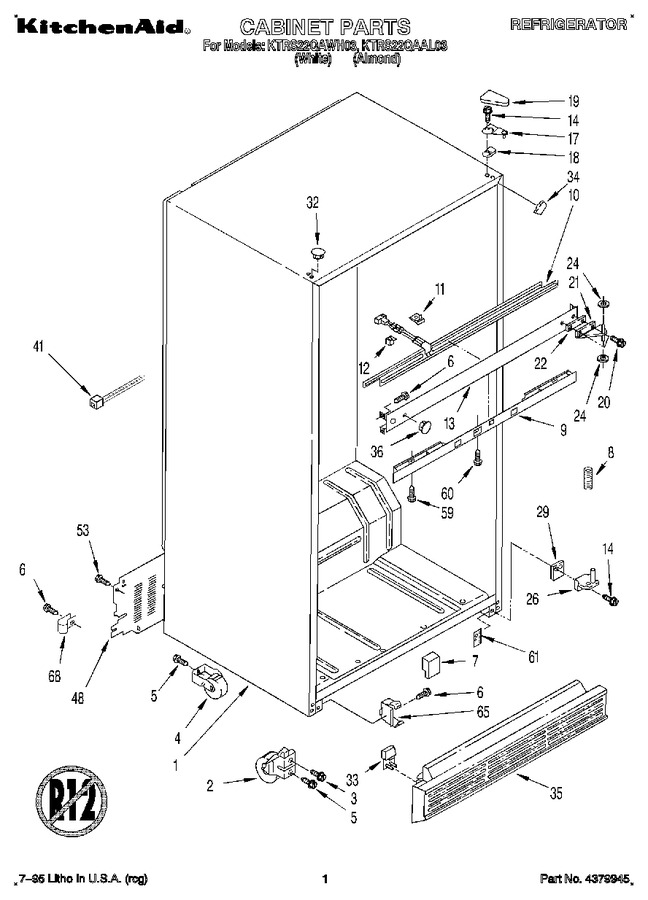

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | N/A | Cabinet (not A Serviceable Part) |
|
- | |||||
| 2 | 2174749 | Roller, Front |
|
- | |||||
| 3 | 489432 | Screw |
|
- | |||||
| 4 | WPW10250570 | Roller, Rear (2) (Replaces: 981122) |
|
$ 42.18 | |||||
| 5 | WP489427 | Screw (Replaces: 489427) |
|
$ 7.84 | |||||
| 6 | WP489478 | Screw (Replaces: 489242) |
|
$ 8.18 | |||||
| 7 | 2176796 | Insert, Air Baffle |
|
- | |||||
| 8 | 983659 | Spring |
|
- | |||||
| 9 | 1126139 | Control, Front Cover |
|
- | |||||
| 10 | 2157307 | Heater, Mullion |
|
- | |||||
| 11 | 1129018 | Clip, Rail (4) |
|
- | |||||
| 12 | 2149077 | Spacer (3) |
|
- | |||||
| 13 | 2179453 | Center Rail |
|
- | |||||
| 14 | WP999367 | Screw (Replaces: 489367) |
|
$ 8.56 | |||||
| 17 | WP2189412 | Hinge, Top (Replaces: 2157593) |
|
$ 120.23 | |||||
| 18 | 1123515 | Shim, Hinge Top |
|
$ 6.58 | |||||
| 19 | 2160404 | Hinge Cover (almond) |
|
- | |||||
| 19 | WP2213360 | Hinge Cover (white) (Replaces: 2160403) |
|
$ 20.19 | |||||
| 20 | WP999367 | Screw (Replaces: 489105) |
|
$ 8.56 | |||||
| 21 | 2151453 | Hinge, Center |
|
- | |||||
| 22 | 836194 | Shim, Hinge Center |
|
- | |||||
| 24 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.91 | ||||
| 26 | 2172813 | Hinge Butt, Bottom |
|
- | |||||
| 29 | 2172743 | Shim, Bottom |
|
$ 33.55 | |||||
| 32 | 2151653 | Hole Plug (almond) |
|
- | |||||
| 32 | WP2151652 | Hole Plug (white) (Replaces: 2151652) |
|
$ 22.87 | |||||
| 33 | 1125670 | Corner Filler, Grille (almond) |
|
- | |||||
| 33 | 1125665 | Corner Filler, Grille (white) |
|
- | |||||
| 34 | 1118058 | Filler, Wrap Corner (white) |
|
- | |||||
| 34 | 1118059 | Filler, Wrap Corner (almond) |
|
- | |||||
| 35 | 2160757 | Grille (almond) |
|
- | |||||
| 35 | 2168621 | Grille (white) |
|
- | |||||
| 36 | 1129062 | Hole Plug (white) |
|
- | |||||
| 41 | WPW10339879 | Strap, Mtg. (Replaces: 2155774) |
|
$ 8.30 | |||||
| 48 | 2160490 | Cover, Unit |
|
- | |||||
| 53 | WPW10141645 | Screw (Replaces: 489084) |
|
$ 8.05 | |||||
| 59 | WP488163 | Screw, 8 X 13/16 (Replaces: 488725) |
|
$ 7.92 | |||||
| 60 | WP489174 | Screw (Replaces: 489174) |
|
$ 7.30 | |||||
| 61 | 2157315 | Tap-plate, Bottom Hinge |
|
- | |||||
| 65 | WP2155013 | Clip, Grille Retainer (2) (Replaces: 2155013) |
|
Immediately | $ 8.11 | ||||
| 68 | 549193 | Clamp |
|
$ 14.06 |
