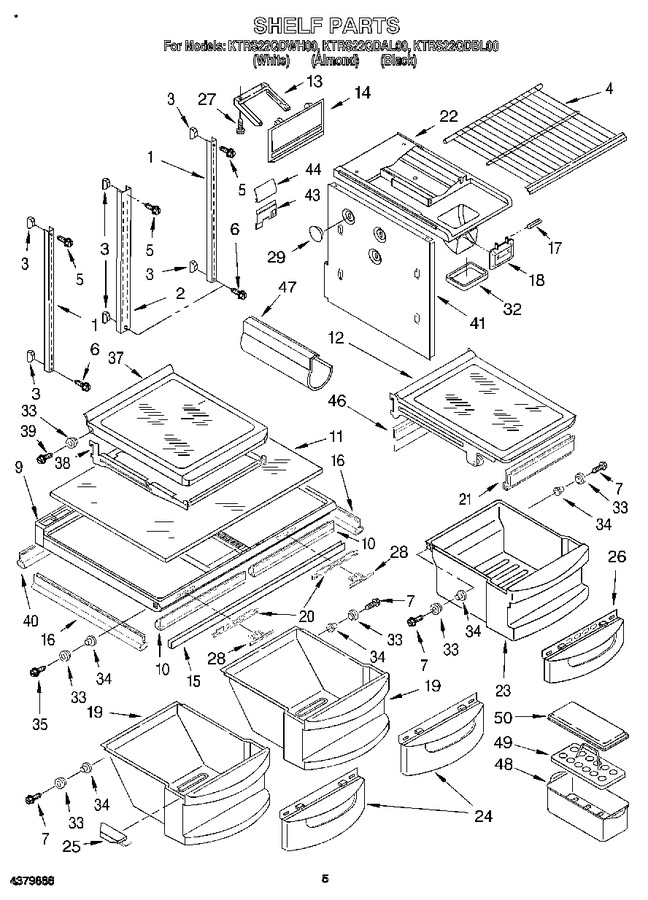

SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Motor And Ice Container


05 - Refrigerator Door


06 - Freezer Door


07 - Compartment Separator


08 - Unit


09 - Icemaker


10 - Dispenser Front, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1114466		Shelf, Ladder (2)		Appelez-nous	-
2	1114465		Shelf, Ladder Center		Appelez-nous	-
3	520965		Screw, Support				$ 31.35
4	2160695		Shelf, Freezer (2)		Appelez-nous	-
5	489345		Screw, 8-32 X 1-1/4		Appelez-nous	-
6	WP489474		Screw   (Replaces: 489450)			Immediately	$ 8.55
7	WP489261		Screw   (Replaces: 489261)				$ 8.33
9	2174130		Pan Cover & Roller Assembly		Appelez-nous	-
10	WP1125528		Gasket, Pan Cover Front   (Replaces: 2179213)				$ 161.69
11	2174142		Glass, Crisper Cover		Appelez-nous	-
12	2174385		Pan Shelf & Roller Assembly		Appelez-nous	-
13	1115380		Slide-ice Compartment Door		Appelez-nous	-
14	2171712		Door-ice Compartment   (Replaces: 2180032)				$ 69.91
15	WP2172748		Support, Crisper   (Replaces: 2172748)				$ 102.08
16	2179252		Gasket, Pan Cover (side)		Appelez-nous	-
17	489395		Roll Pin		Appelez-nous	-
18	2160613		Door-platform		Appelez-nous	-
19	2179228		Pan, Crisper (includes Rollers)		Appelez-nous	-
20	2174257		Slide, Humidity		Appelez-nous	-
21	2174398		Gasket-front		Appelez-nous	-
22	2160612		Platform-ice Container		Appelez-nous	-
23	2179232		Meat Pan Assy.		Appelez-nous	-
24	2174064		Window, Crisper Pan		Appelez-nous	-
25	2174259		Cap, Crisper Pan (right Side)		Appelez-nous	-
25	2174258		Cap, Crisper Pan (left Side)		Appelez-nous	-
26	2174085		Window, Meat Pan		Appelez-nous	-
27	WP489478		Screw   (Replaces: 489242)				$ 8.18
28	2174253		Button, Humidity Control		Appelez-nous	-
29	2160621		Anchor-screw I/m		Appelez-nous	-
32	2160615		Gasket-platform		Appelez-nous	-
33	2174388		Roller		Appelez-nous	-
34	2174478		Eyelet, Roller				$ 5.70
35	WPW10272364		Screw   (Replaces: 489211)			Immediately	$ 11.36
37	2174016		Shelf, Spillguard		Appelez-nous	-
38	2174017		Frame & Roller Assembly				$ 132.05
39	489439		Screw		Appelez-nous	-
40	2179216		Gasket, Pan Cover-rear		Appelez-nous	-
41	2160619		Support Wall I/m		Appelez-nous	-
42	2160621		Anchor-screw I/m		Appelez-nous	-
43	2157452		Baffle-air, I/m		Appelez-nous	-
44	2160729		Gasket, Baffle I/m		Appelez-nous	-
46	2179564		Gasket-rear		Appelez-nous	-
47	W10777924		Wine & Egg Rack   (Replaces: 2179375)				$ 24.78
48	W10136387A		Bin, Egg   (Replaces: 2169933)				$ 19.54
49	WP2177817		Egg Carrier   (Replaces: 2164373)				$ 18.78
50	2169935		Cover, Egg Bin		Appelez-nous	-
