SELECT A DIAGRAM
01 - Cabinet
02 - Liner

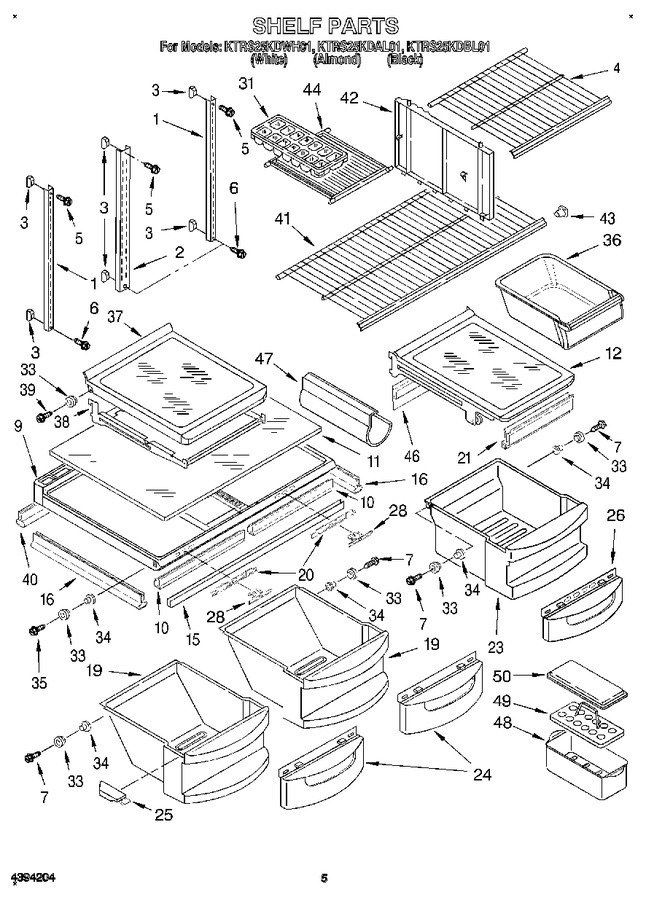

03 - Shelf
04 - Compartment Separator
05 - Freezer Door
06 - Refrigerator Door
07 - Unit, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1118102 | Shelf, Ladder (2) |
|
- | |||||
| 2 | 1118101 | Shelf Ladder, Center |
|
- | |||||
| 3 | 520965 | Screw, Support |
|
$ 28.22 | |||||
| 4 | 2179447 | Shelf, Freezer (top) |
|
- | |||||
| 5 | 489345 | Screw, 8-32 X 1-1/4 |
|
- | |||||
| 6 | WP489474 | Screw (Replaces: 489474) |
|
Immediately | $ 7.70 | ||||
| 7 | WP489261 | Screw (Replaces: 489261) |
|
$ 7.50 | |||||
| 9 | 2174132 | Pan Cover & Roller Assembly |
|
- | |||||
| 10 | WP1125528 | Gasket, Pan Cover Front (Replaces: 2179251) |
|
$ 145.52 | |||||
| 11 | 2174145 | Glass, Crisper Cover |
|
- | |||||
| 12 | 2174386 | Pan Shelf & Roller Assembly |
|
- | |||||
| 15 | 2179449 | Crisper Support |
|
- | |||||
| 16 | 2179252 | Gasket, Pan Cover (side) Container |
|
- | |||||
| 19 | 2174072 | Pan, Crisper (includes Rollers) |
|
- | |||||
| 20 | 2174257 | Slide, Humidity |
|
- | |||||
| 21 | 2174400 | Gasket-front |
|
- | |||||
| 23 | 2174087 | Meat Pan |
|
- | |||||
| 24 | 2174073 | Window, Crisper Pan |
|
- | |||||
| 25 | 2174258 | Cap, Crisper Pan (left Side) |
|
- | |||||
| 25 | 2174259 | Cap, Crisper Pan (right Side) |
|
- | |||||
| 26 | 2174088 | Window, Meat Pan |
|
- | |||||
| 28 | 2174253 | Button, Humidity Control |
|
- | |||||
| 31 | WP841180A | Tray, Ice (Replaces: 841180) |
|
Immediately | $ 43.06 | ||||
| 33 | 2174388 | Roller |
|
- | |||||
| 34 | 2174478 | Eyelet, Roller |
|
$ 5.70 | |||||
| 35 | WPW10272364 | Screw (Replaces: 489211) |
|
Immediately | $ 10.22 | ||||
| 36 | 2173688 | Ice Cube Pan |
|
- | |||||
| 37 | 2174018 | Shelf, Spillguard |
|
- | |||||
| 38 | 2174020 | Frame & Roller Assembly |
|
- | |||||
| 39 | 489439 | Screw |
|
- | |||||
| 40 | 2179250 | Gasket, Pan Cover-rear |
|
- | |||||
| 41 | 1125745 | Shelf, Freezer |
|
- | |||||
| 42 | 2179446 | Divider |
|
- | |||||
| 43 | 819091 | Shelf Stud (Replaces: 946357) |
|
$ 37.49 | |||||
| 44 | 1125543 | Shelf, Ice Compartment |
|
- | |||||
| 46 | 2179565 | Gasket-rear |
|
- | |||||
| 47 | W10777924 | Wine & Egg Rack (Replaces: 2179404) |
|
$ 22.30 | |||||
| 48 | W10136387A | Bin, Egg (Replaces: 2169933) |
|
$ 17.59 | |||||
| 49 | WP2177817 | Egg Carrier (Replaces: 2164373) |
|
$ 16.90 | |||||
| 50 | 2169935 | Cover, Egg Bin |
|
- |
