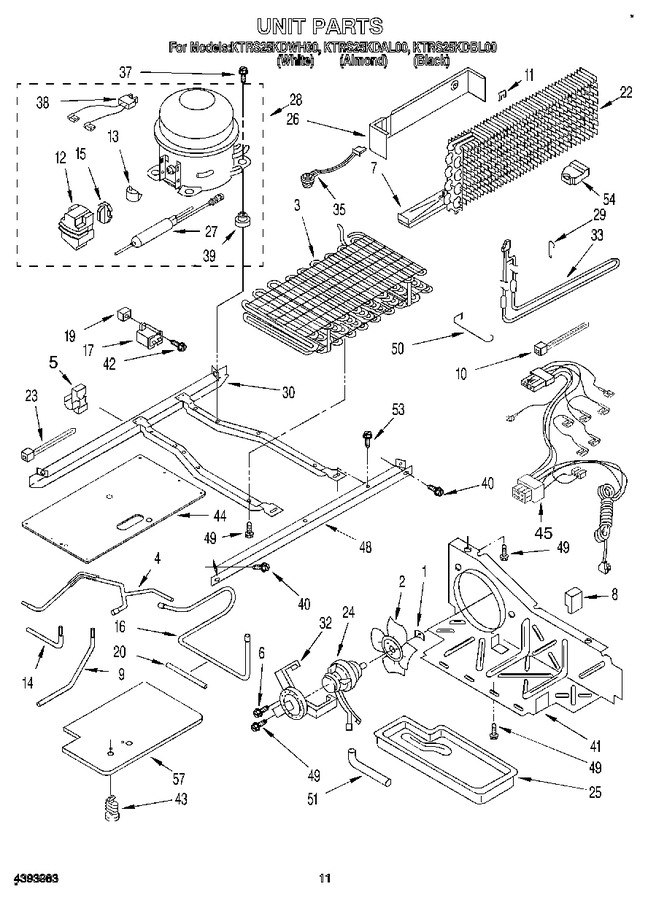

07 - Unit, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.59
2	851732		Fan, Blade		Appelez-nous	-
3	2164504		Condenser Assembly		Appelez-nous	-
4	2162475		Tube, Discharge		Appelez-nous	-
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 12.34
7	1114597		Drain Pan		Appelez-nous	-
8	2176796		Insert, Air Baffle		Appelez-nous	-
9	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 7.47
11	9791833		Clip		Appelez-nous	-
12	WP2162358		Cover   (Replaces: 2162358)				$ 85.76
13	WP2154697		Overload (includes Relay) Production   (Replaces: 2154697)				$ 123.54
14	2154109		Tube, Process				$ 68.63
15	N/A		Relay (see Overload)		Appelez-nous	-
16	2162473		Tube, Suction		Appelez-nous	-
17	2169137		Running Capacitor		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 19.19
22	2174780		Evaporator		Appelez-nous	-
23	WPW10339879		Strap   (Replaces: 2165001)				$ 7.47
24	833697		Motor, Fan   (Replaces: 2162431)			Immediately	$ 98.23
25	1110674		Tray, Evaporator		Appelez-nous	-
26	1116511		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 51.42
28	W10309994		Compressor (includes Items 12, 13, 15, 17, 27, 38 & 39) (also Order)   (Replaces: 2169443)			Immediately	$ 579.20
28	876765		Tube Kit			Immediately	$ 81.59
29	851358		Support, Heater		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2162021		Heater, Defrost		Appelez-nous	-
35	WP4387503		Bi-metal, Defrost   (Replaces: 2183072)			Immediately	$ 43.10
37	876811		Screw   (Replaces: 489373)				$ 7.01
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 7.66
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.01
40	489340		Screw		Appelez-nous	-
41	2162457		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 13.28
43	489396		Clip				$ 10.13
44	2157364		Bottom Plate		Appelez-nous	-
45	2176857		Wire Assembly		Appelez-nous	-
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 76.20
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.54
50	1110663		Guard, Fan		Appelez-nous	-
51	2183033		Tube, Drain		Appelez-nous	-
53	WP489427		Screw, 1/4-28 X 1/2 (2)   (Replaces: 489339)				$ 7.06
54	2174787		Wedge, Air Baffle		Appelez-nous	-
57	2168575		Door Removal Instructions		Appelez-nous	-
57	350956		Xenamel, Almond (13 Oz. Spray Can)				$ 48.61
57	WP503695		Cork, Sealer 1/4 Pound)   (Replaces: 503695)				$ 111.46
57	WP505587		Sealer, Mastic (1 Qt.).   (Replaces: 505587)			Immediately	$ 164.39
57	WP542638		Grease, Silicone (1/2 Oz.)   (Replaces: 542638)			Immediately	$ 11.50
57	542639		Cement, Alumilastic 1-1/4 Oz.)		Appelez-nous	-
57	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
57	72032		Paint, Touch-up 1/2 Oz. (black)			Immediately	$ 18.69
57	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
57	876370		Kit, Insulation (14 Pcs. 3`` X 24`` X 48``)   (Replaces: 876305)				$ 218.83
57	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
57	876370		Insulation Fiberglass (63-1/2`` X 35-1/2`` X 2-5/8``)   (Replaces: 978941)				$ 218.83
57	2157369		Cover, Unit Bottom		Appelez-nous	-
57	978026		Valve, Access (5/16``)			Immediately	$ 121.04
57	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
57	978028		Valve, Access (1/2)		Appelez-nous	-
57	978029		Valve Access (5/8``)				$ 93.85
57	978030		Valve, Access (3/4``)				$ 123.53
57	876764		Valve, Access(3/16``)			Immediately	$ 86.33
57	212643		Sealer, Gum (4 Feet)			Immediately	$ 86.78
57	479502		Tape, Vinyl 3/4 X 108``)				$ 66.77
57	876370		Kit, Insulation (2 Pcs. 3`` X 24 `` X 48``)				$ 218.83
57	876029		Kit, Foam Slab (30`` X 32- 1/2`` X1-1/2``)		Appelez-nous	-
57	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
57	606755		Bag, Insulation (36-5/8`` X 46``)				$ 74.13
57	799833		Kit, Evaporator Repair (aluminum Epoxy)		Appelez-nous	-
57	350942		Primer White (13 Oz. Spray Can)				$ 84.73
57	285006		Enamel, Black (13 Oz. Spray Can)   (Replaces: 350939)				$ 53.90
57	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
57	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
57	978883		Enamel, Almond (1 Qt. Uncut)		Appelez-nous	-
57	833938		Kit, Terminal Connector				$ 7.62
	LIT2173457		Energy Guide		Appelez-nous	-
	LIT628370		Modular Icemaker Service Sheet		Appelez-nous	-
	LIT2176901		Service & Wiring Sheet		Appelez-nous	-
	1117510		Torx Key				$ 5.84
	LIT2169004		Care & Use Guide		Appelez-nous	-
