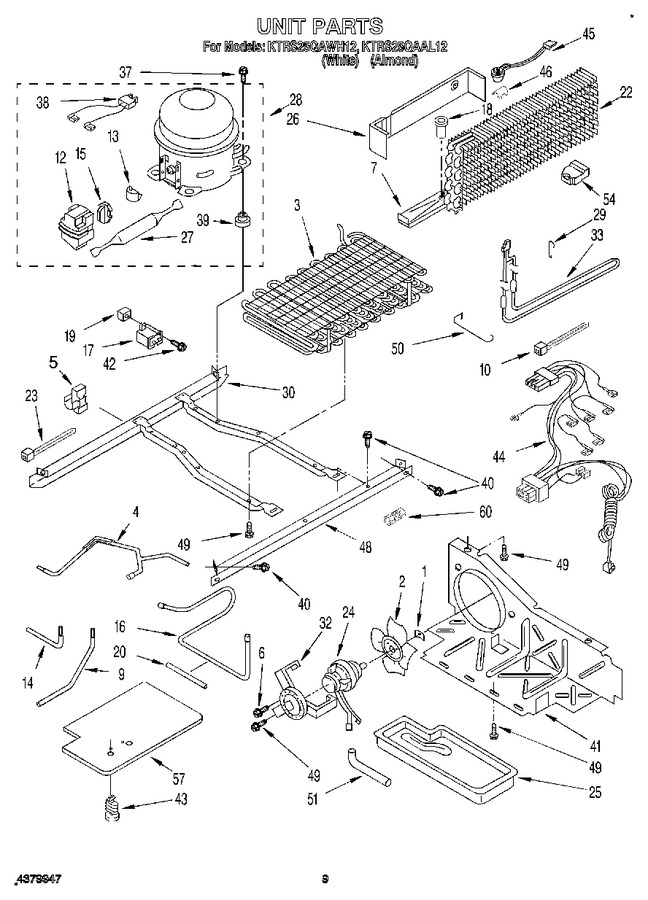

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP486692		Speed Nut   (Replaces: 486692)				$ 7.59
2	2176753		Blade, Fan		Appelez-nous	-
3	2164504		Condenser Assembly		Appelez-nous	-
4	2162475		Tube, Discharge		Appelez-nous	-
5	2155658		Clip, Wire		Appelez-nous	-
6	681390		Screw, 8-32 X 3/8   (Replaces: 489019)				$ 12.34
7	1114597		Drain Pan		Appelez-nous	-
9	2154032		Tube, Condenser To Heat Loop		Appelez-nous	-
10	WPW10339879		Strap, Mtg.   (Replaces: 2155774)				$ 7.47
12	WP2162358		Cover   (Replaces: 2162358)				$ 85.76
13	WP2154697		Overload (includes Relay) Production   (Replaces: 2154697)				$ 123.54
14	2154109		Tube, Process				$ 68.63
15	N/A		Relay (see Overload)		Appelez-nous	-
16	2162473		Tube, Suction		Appelez-nous	-
17	2169137		Running Capacitor		Appelez-nous	-
18	2172811		Drain Fitting		Appelez-nous	-
19	509812		Screw Grommet		Appelez-nous	-
20	W11751592		Sleeve   (Replaces: 2162499)			Immediately	$ 19.19
22	2174780		Evaporator		Appelez-nous	-
23	WPW10339879		Strap   (Replaces: 2165001)				$ 7.47
24	2169135		Motor, Fan				$ 153.90
25	1110674		Tray, Evaporator		Appelez-nous	-
26	1116511		Heat Shield		Appelez-nous	-
27	W10843121		Drier   (Replaces: 2174865)			Immediately	$ 51.42
28	876765		Tube Kit			Immediately	$ 81.59
28	W10309994		Compressor (includes Items 12, 13, 15, 17, 27, 38 & 39) (also Order)   (Replaces: 2169443)			Immediately	$ 579.20
29	851358		Support, Heater		Appelez-nous	-
30	2304904		Unit Mounting Frame   (Replaces: 2157396)		Appelez-nous	-
32	548695		Fan, Motor Bracket		Appelez-nous	-
33	2162021		Heater, Defrost		Appelez-nous	-
37	876811		Screw   (Replaces: 489373)				$ 7.01
38	WP2172890		Wire Asm   (Replaces: 1127675)				$ 7.66
39	876811		Grommet (4)   (Replaces: 1100826)				$ 7.01
40	WP489427		Screw   (Replaces: 489427)				$ 7.06
41	2162457		Air Baffle		Appelez-nous	-
42	W11693756		Screw   (Replaces: 488687)			Immediately	$ 13.28
43	489396		Clip				$ 10.13
44	2176859		Wire Assembly (unit)		Appelez-nous	-
45	WP4387503		Bi-metal, Defrost   (Replaces: 2183072)			Immediately	$ 43.10
46	9791833		Clip		Appelez-nous	-
48	2305374		Unit Mounting Rail   (Replaces: 1127906)				$ 76.20
49	WP489464		Screw   (Replaces: 489337)			Immediately	$ 7.54
50	1110663		Guard, Fan		Appelez-nous	-
51	2183033		Tube, Drain		Appelez-nous	-
54	2174787		Wedge, Air Baffle		Appelez-nous	-
57	2157369		Cover, Unit Bottom		Appelez-nous	-
60	876764		Valve, Access(3/16``)			Immediately	$ 86.33
60	WP4211117		Connector, Union   (Replaces: 2150347)				$ 9.41
60	WP978025		Valve, Access (1/4``)   (Replaces: 978025)			Immediately	$ 99.46
60	978029		Valve Access (5/8``)				$ 93.85
60	978030		Valve, Access (3/4``)				$ 123.53
60	978026		Valve, Access (5/16``)			Immediately	$ 121.04
60	SF5538		Valve, Access (3/8``)   (Replaces: 978027)				$ 16.79
60	978028		Valve, Access (1/2)		Appelez-nous	-
