SELECT A DIAGRAM

01 - Cabinet


02 - Liner


03 - Shelf


04 - Compartment Separator


05 - Freezer Door


06 - Refrigerator Door


07 - Unit


08 - Motor And Ice Container


09 - Dispenser Front


10 - Icemaker, Lit/optional

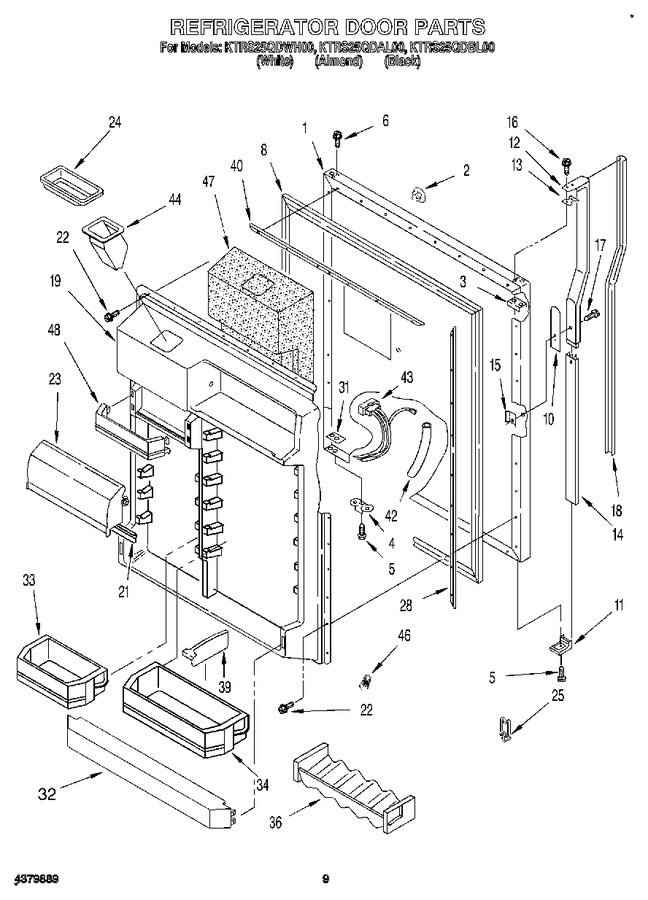

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2180093		Panel, Refrigerator Door (includes Insulation) (white)		Appelez-nous	-
1	2180095		Panel, Refrigerator Door (includes Insulation) (black)		Appelez-nous	-
1	2180094		Panel, Refrigerator Door (includes Insulation) (almond)		Appelez-nous	-
2	WP2189000		Hole Plug (white)   (Replaces: 1122653)			Immediately	$ 7.77
2	1122654		Hole Plug (almond)		Appelez-nous	-
2	WP2189009		Hole Plug (black)   (Replaces: 2160809)				$ 7.61
3	943185		Plate, Tap (2)		Appelez-nous	-
4	2155332		Bracket, Door Stop		Appelez-nous	-
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 8.24
6	WP8281206		Screw, 8-15 X 1/2   (Replaces: 489028)				$ 8.37
8	2177233		Door Gasket, Magnetic		Appelez-nous	-
10	1107650		Spacer Door		Appelez-nous	-
11	1107236		End Cap Bottom		Appelez-nous	-
12	2161508		Handle, Center				$ 111.30
13	2151813		Shim, Handle		Appelez-nous	-
14	1107209		Retainer, Insert		Appelez-nous	-
15	WP939101		Screw Anchor (2)   (Replaces: 2151669)				$ 7.88
16	WP488920		Screw, 8 X 5/8   (Replaces: 489006)				$ 7.98
17	WP488729		Screw, 8 X 1/2   (Replaces: 487909)			Immediately	$ 8.28
18	2161851		Insert, Handle (black)		Appelez-nous	-
18	2161513		Insert, Handle (white)		Appelez-nous	-
18	2161514		Insert, Handle (almond)		Appelez-nous	-
19	2177357		Interior Door Panel		Appelez-nous	-
21	2183037		Gasket, Door Utility				$ 39.26
22	WP489442		Screw   (Replaces: 489442)			Immediately	$ 11.49
23	2183047		Compartment Door		Appelez-nous	-
24	1125936		Butter, Tray		Appelez-nous	-
25	2168567		Clip		Appelez-nous	-
28	1123245		Retainer, Gasket		Appelez-nous	-
31	2155335		Tap, Plate		Appelez-nous	-
32	2171357		Trivet, Door		Appelez-nous	-
33	2171067		Door Bin (narrow)		Appelez-nous	-
34	2171063		Door Bin (wide)		Appelez-nous	-
36	1125981		Holder, Beverage		Appelez-nous	-
39	2171283		Load Lock		Appelez-nous	-
40	1121119		Retainer, Gasket		Appelez-nous	-
42	2160673		Tube-door Wiring		Appelez-nous	-
43	2174771		Plug, Crossover		Appelez-nous	-
44	2160684		Ice Chute		Appelez-nous	-
46	2160674		Connector-wire		Appelez-nous	-
47	2160683		Insulation, Dispenser		Appelez-nous	-
48	2171372		Trivet, Door		Appelez-nous	-
