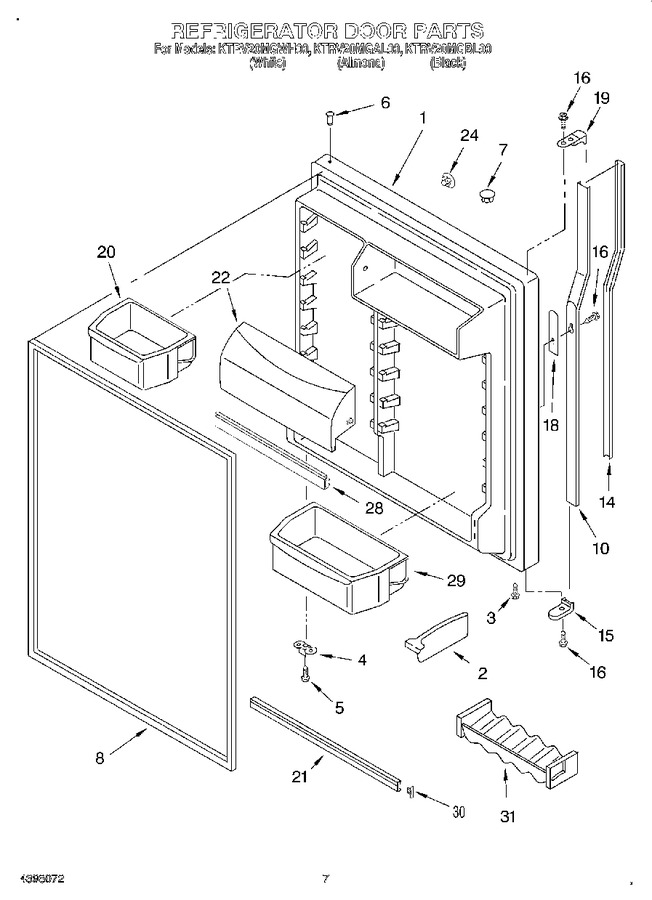

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2183935 | Refrigerator Door (includes No.6 & No.8) (white) |
|
- | |||||
| 1 | 2200713 | Refrigerator Door (includes No.6 & No.8) (black) |
|
- | |||||
| 1 | 2183936 | Refrigerator Door (includes No.6 & No.8) (almond) |
|
- | |||||
| 2 | 1123293 | Divider, Door Bin |
|
- | |||||
| 3 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.53 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 6 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 7 | WP2212651 | Hole Plug (black) (Replaces: 2160808) |
|
$ 21.79 | |||||
| 7 | 989196 | Hole Plug (almond) |
|
- | |||||
| 7 | WP2212648 | Hole Plug (white) (Replaces: 844478) |
|
Immediately | $ 7.37 | ||||
| 8 | 2159061 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 165.30 | ||||
| 8 | 2177311 | Door Gasket, Magnetic (black) |
|
$ 297.86 | |||||
| 10 | 2195993N | Retainer, Insert (almond) |
|
- | |||||
| 10 | 2195993B | Retainer, Insert (black) |
|
- | |||||
| 10 | 2195993W | Retainer, Insert (white) |
|
$ 40.32 | |||||
| 14 | 2195987 | Insert, Handle (almond) |
|
- | |||||
| 14 | 2195986 | Insert, Handle (white) |
|
- | |||||
| 14 | 2188155 | Insert, Handle (black) |
|
- | |||||
| 15 | 2195990 | Endcap, Bottom (white) |
|
$ 9.50 | |||||
| 15 | 2195991 | Endcap, Bottom (almond) |
|
- | |||||
| 15 | 2188152 | Endcap, Bottom (black) |
|
- | |||||
| 16 | 3400873 | Screw |
|
- | |||||
| 18 | 2188146 | Spacer, Handle |
|
- | |||||
| 19 | 2195995B | End Cap (black) |
|
$ 24.15 | |||||
| 19 | 2195995N | Endcap (almond) |
|
- | |||||
| 19 | 2195995W | Endcap (white) |
|
$ 10.04 | |||||
| 20 | 2171066 | Bin, Door Shelf (2) |
|
- | |||||
| 21 | WPW10421486 | Shelf, Trim (Replaces: 2195948) |
|
$ 103.27 | |||||
| 22 | 2182399 | Door, Compartment |
|
- | |||||
| 24 | WP2189009 | Hole Plug, Handle (black) (Replaces: 2189009) |
|
$ 6.85 | |||||
| 24 | WP2189000 | Hole Plug, Handle (white) (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 24 | 2189008 | Hole Plug, Handle (almond) |
|
- | |||||
| 28 | 2159124 | Gasket, Door Compartment |
|
- | |||||
| 29 | 2171063 | Bin, Door Shelf (1) |
|
- | |||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 31 | 2193409 | Beverage Holder |
|
$ 48.13 | |||||
| 100 | 2200703 | Featurepak (includes 2, 20, 21, 22, 25, 28, 29, 30) Also See Frz.dr. & Shelf Pgs. |
|
- |
