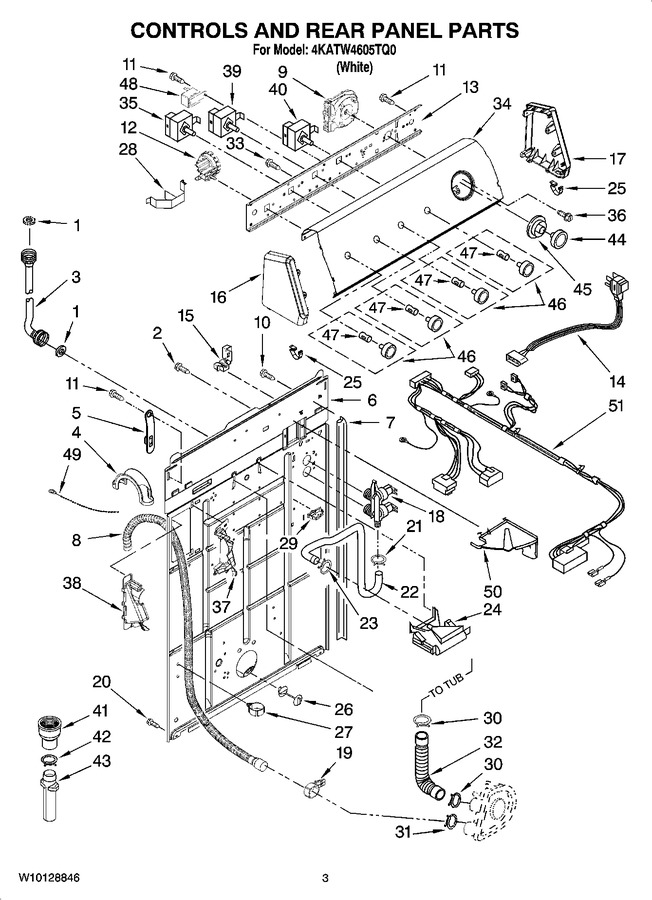

02 - Controls And Rear Panel Parts


03 - Agitator, Basket And Tub Parts


04 - Brake, Clutch, Gearcase, Motor And Pump Parts


05 - Machine Base Parts


06 - Wiring Harness Parts


07 - Brake And Drive Tube Parts


08 - Gearcase Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.34
2	WP9740848		Screw, 8-18 X 1/2   (Replaces: 9740848)			Immediately	$ 7.72
3	WP89503		Hose, Water Inlet (2) (red Coupler)   (Replaces: 8571378)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) (blue Coupler)   (Replaces: 8571377)			Immediately	$ 21.68
4	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
5	WP8568314		Strap, Console (2)   (Replaces: 8568314)				$ 7.35
6	8318015		Panel, Rear				$ 148.59
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
8	WPW10096921		Drain Hose Assembly (includes Items 19 & 27)   (Replaces: W10122138)			Immediately	$ 65.84
9	WPW10110460		Timer, Control (60 Hz.) (motor Not A Service Part)   (Replaces: W10110460)				$ 321.80
10	WP3351614		Screw, Ground   (Replaces: 3351614)			Immediately	$ 6.57
11	WP90767		Screw, 8/18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
12	W10339334		Switch, Water Level   (Replaces: 8577845)			Immediately	$ 224.83
13	8579677		Bracket, Control		Appelez-nous	-
14	W10111552		Cord, Power (includes Item 15)		Appelez-nous	-
15	8559337		Strain Relief, Power Cord		Appelez-nous	-
16	8579674		Cap, End (l.h.) (includes Item 25)		Appelez-nous	-
17	8579673		Cap, End (r.h.) (includes Item 25)		Appelez-nous	-
18	285874		Valve, Water Mixing   (Replaces: 3952165)				$ 192.47
19	8541668		Clamp, Hose				$ 20.09
20	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
21	WP596669		Clamp, Hose   (Replaces: 301958)			Immediately	$ 7.94
22	WP3357328		Hose, Vacuum Break   (Replaces: 8541607)			Immediately	$ 22.30
23	WP596669		Clamp, Hose   (Replaces: 370450)			Immediately	$ 7.94
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	WP8312709		Clip-console   (Replaces: 8312709)			Immediately	$ 14.93
26	WP8519200		Support, Rear Panel   (Replaces: 8519200)			Immediately	$ 17.87
27	8541667		Clamp, Hose				$ 5.86
28	8055003		Clip, Harness & Pressure Hose				$ 36.24
29	3352944		Clip, Harness		Appelez-nous	-
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
32	285871		Hose, Pump To Tub (includes Item 30)   (Replaces: 3951449)			Immediately	$ 26.09
33	3400073		Screw, Ground		Appelez-nous	-
34	W10115403		Panel, Console		Appelez-nous	-
35	WPW10168256		Switch, Water Temperature   (Replaces: 661612)			Immediately	$ 121.73
36	WP3400818		Screw, Timer Mounting   (Replaces: 3400818)				$ 7.93
37	WPW10096921		Bucket, Drain Hose (left Half)   (Replaces: 8541669)			Immediately	$ 65.84
38	WPW10096921		Bucket, Drain Hose (right Half)   (Replaces: 8541658)			Immediately	$ 65.84
39	WPW10168262		Switch, Rotary   (Replaces: 3949187)				$ 122.63
40	WPW10168257		Switch, Rotary   (Replaces: 3949180)				$ 126.00
41	WP8577375		Coupling Drain Hose   (Replaces: 8577375)				$ 7.62
42	WP285655		Clamp, Hose (2)   (Replaces: 285655)			Immediately	$ 7.93
43	3363920A		Adapter, Drain Hose   (Replaces: 3363920)				$ 8.31
44	W10110061		Knob, Timer				$ 41.35
45	W10110062		Dial, Timer				$ 20.98
46	WPW10110063		Knob, Control   (Replaces: W10110063)			Immediately	$ 53.22
47	WP8536939		Clip, Knob   (Replaces: 8536939)			Immediately	$ 7.38
48	3952439		Buzzer, Mini		Appelez-nous	-
49	WPW10339879		Cable Tie   (Replaces: 3347868)				$ 7.47
50	8539874		Shield, Suds				$ 7.01
51	W10121823		Harness, Wiring (for Detail See Page 9 & 10)		Appelez-nous	-
