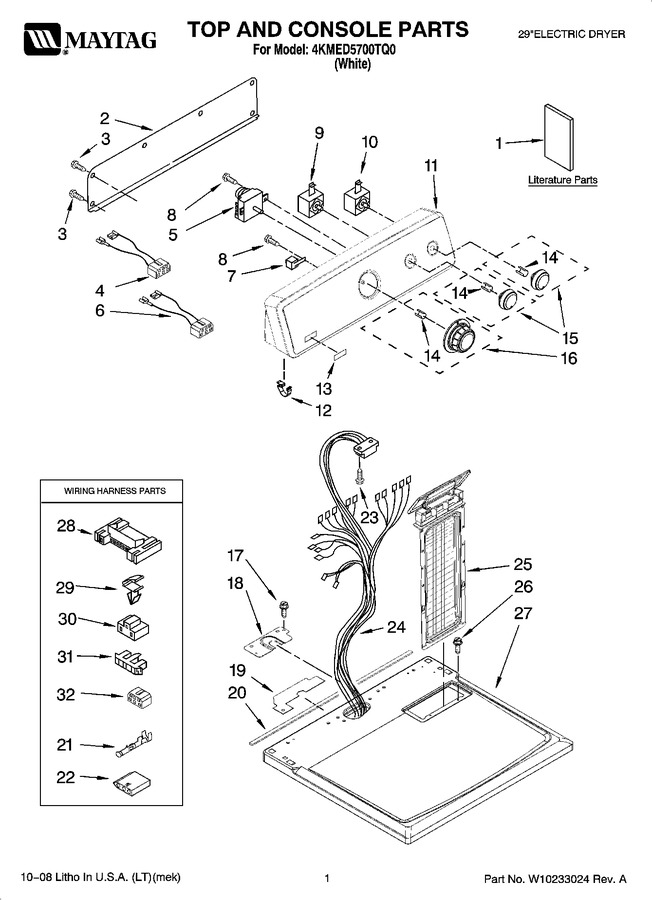

01 - Top And Console Parts
02 - Cabinet Parts
03 - Bulkhead Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10131619 | Use & Care Guide (english) |
|
- | |||||
| 1 | W10167648 | Wiring Diagram |
|
- | |||||
| 1 | W10131620 | Use & Care Guide (arabic) |
|
- | |||||
| 1 | W10131625 | Sheet, Cycle Feature (english) |
|
- | |||||
| 1 | W10131626 | Sheet, Cycle Feature (arabic) |
|
- | |||||
| 2 | W10112576 | Panel, Rear |
|
$ 61.99 | |||||
| 3 | WP693995 | Screw 8-18 X 3/8 (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 4 | W10113080 | Wire, Jumper (buzzer On/off) |
|
- | |||||
| 5 | WP3979617 | Timer, 60 Hz. (Replaces: 3979617) |
|
Immediately | $ 347.21 | ||||
| 6 | W10110861 | Switch, Rotary Twist Mount |
|
- | |||||
| 7 | 3952439 | Buzzer, Mini |
|
- | |||||
| 8 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 9 | WP3399639 | Switch, Temperature (Replaces: 3399639) |
|
Immediately | $ 118.04 | ||||
| 10 | WPW10112668 | Switch, Push-to-start (Replaces: W10112668) |
|
$ 115.30 | |||||
| 11 | W10086704 | Console & Shell Assembly (includes Items 12 & 13) |
|
- | |||||
| 12 | WP8312709 | Clip-console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 13 | W10203949 | Badge Assembly |
|
$ 64.84 | |||||
| 14 | WP8536939 | Clip Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 15 | WPW10110029 | Knob, Control (3) (Replaces: W10110029) |
|
$ 49.87 | |||||
| 16 | W10110030 | Timer-knob Assembly |
|
$ 26.39 | |||||
| 17 | WP33001882 | Screw, 8-18 X 3/4 (Replaces: 337686) |
|
$ 75.34 | |||||
| 18 | 8565981 | Bracket, Harness |
|
- | |||||
| 19 | W10118608 | Seal-harness |
|
- | |||||
| 20 | W10112267 | Seal-foam Control Bracket |
|
$ 87.78 | |||||
| 21 | WP94614 | Terminal (Replaces: 94614) |
|
$ 7.25 | |||||
| 22 | 3936144 | Connector |
|
$ 19.10 | |||||
| 23 | WP681414 | Screw, 10-16 X 1/2 (Replaces: 343641) |
|
Immediately | $ 7.62 | ||||
| 24 | W10221863 | Harness, Wiring |
|
- | |||||
| 25 | W11778253 | Screen, Lint (Replaces: 8565972) |
|
Immediately | $ 49.17 | ||||
| 26 | W11693756 | Screw, 8-18 X 5/8 (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 27 | 8579695 | Top |
|
- | |||||
| 28 | 3395683 | Connector, Motor |
|
Immediately | $ 49.01 | ||||
| 29 | WP3394427 | Clip-harness (Replaces: 3394427) |
|
$ 7.36 | |||||
| 30 | 3401144 | Connector (pts) Relay |
|
$ 11.53 | |||||
| 31 | 3397269 | Connector-timer |
|
$ 25.55 | |||||
| 32 | 3347243 | Connector 6-circuit |
|
- |
