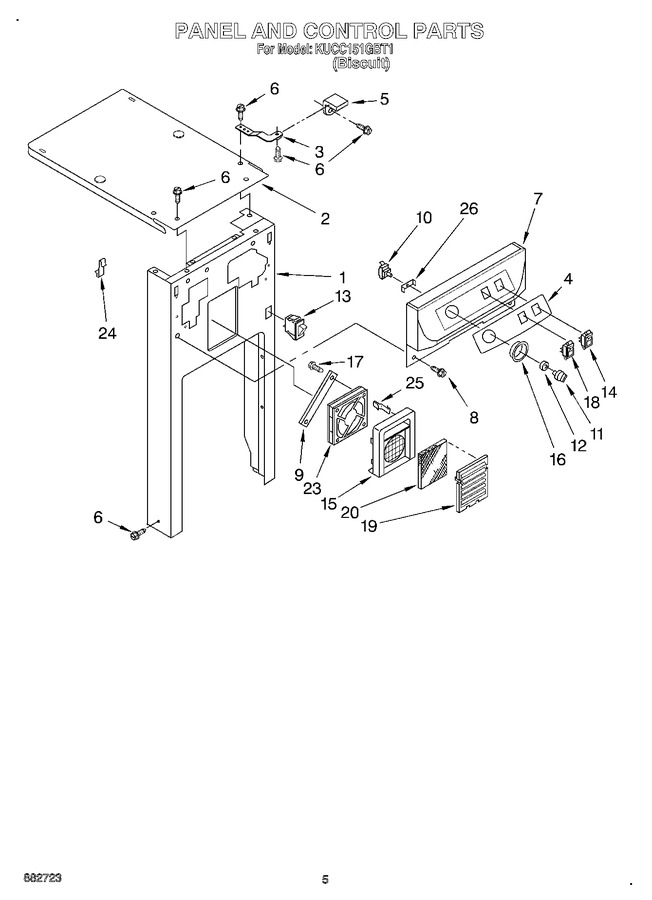

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9871575		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 9870157)			Immediately	$ 22.03
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 9870158)			Immediately	$ 22.03
4	9871708		Insert, Escutcheon		Appelez-nous	-
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 25.68
6	WP489478		Screw, 8 X 1/2ab (6)   (Replaces: 489478)				$ 7.36
7	9871704		Escutcheon, Control		Appelez-nous	-
8	246131		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
9	4152703		Strap, Fan				$ 67.79
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 221.83
11	9871570		Knob, Rotary Switch		Appelez-nous	-
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 11.55
13	WP4387911		Switch, Drawer   (Replaces: 4152058)			Immediately	$ 37.48
14	WP9872161		Switch, Rocker   (Replaces: 9871571)				$ 125.87
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 313.51
16	9871569		Bezel		Appelez-nous	-
17	WP3351614		Screw, 10-24 X 3/8   (Replaces: 780034)			Immediately	$ 6.57
18	9871572		Switch, (air Freshener)		Appelez-nous	-
19	9871576		Cover, Air Freshener		Appelez-nous	-
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 16.74
23	9871893		Fan, Filter   (Replaces: 9871051)				$ 313.51
24	4151897		Clip, Wire				$ 6.66
25	4151897		S-clip				$ 6.66
26	780417		Bracket, Switch		Appelez-nous	-
