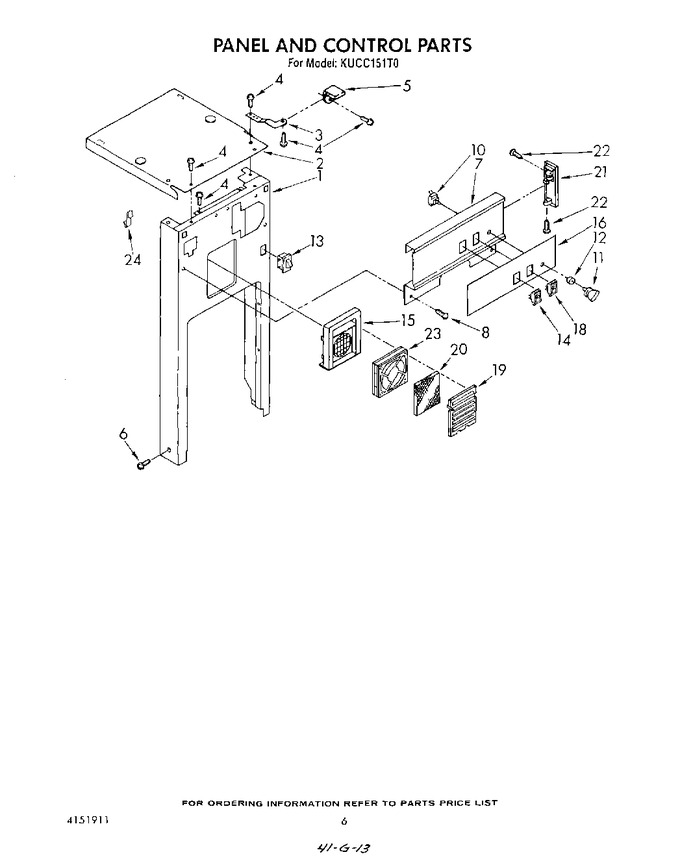

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4152069		Panel, Front Frame		Appelez-nous	-
2	W11684543		Cover, Top   (Replaces: 608572)		Appelez-nous	-
3	W11729437		Bracket, Retainer (l.h.)   (Replaces: 608785)			Immediately	$ 22.03
3	W11729437		Bracket, Retainer (r.h.)   (Replaces: 608784)			Immediately	$ 22.03
4	WP302868		Screw, 8-18 X 1/2   (Replaces: 780138)			Immediately	$ 7.36
5	WP780239		Bracket, Retainer (alternate) (2)   (Replaces: 780239)				$ 25.68
6	WP489069		Screw, 8 X 1/2ab (6)   (Replaces: 776076)			Immediately	$ 7.56
7	4151456		Escutcheon, Control		Appelez-nous	-
8	776559		Screw, 6-20 X 3/8 (2)		Appelez-nous	-
10	675382		Switch, Rotary Start-run   (Replaces: 608824)				$ 221.83
11	776594		Knob, Rotary Switch				$ 27.24
12	WP777383		Nut, Rotary Switch   (Replaces: 777383)				$ 11.55
13	WP4387911		Switch, Drawer   (Replaces: 4152060)			Immediately	$ 37.48
14	WP4314961		Switch, Rocker   (Replaces: 4147765)				$ 84.56
15	9871893		Compartment, Air Freshener   (Replaces: 4151442)				$ 313.51
16	4151848		Insert, Escutcheon (almond (optional))		Appelez-nous	-
16	4151847		Insert, Escutcheon (white)		Appelez-nous	-
18	WP4314961		Switch, Air Freshener   (Replaces: 4151551)				$ 84.56
19	4151441		Cover, Air Freshener		Appelez-nous	-
20	WP4151750		Filter, Charcoal   (Replaces: 4151750)				$ 16.74
21	4151453		End Cap, Escutcheon (l.h.)		Appelez-nous	-
21	4151452		End Cap, Escutcheon (r.h.)		Appelez-nous	-
22	WP489069		Screw, 8-18 X 1/2   (Replaces: 780230)			Immediately	$ 7.56
23	9871893		Fan, Filter   (Replaces: 4151546)				$ 313.51
24	4151897		Clip, Wire				$ 6.66
