SELECT A DIAGRAM

01 - Motor And Drive Parts


02 - Frame Parts


03 - Powerscrew And Ram Parts

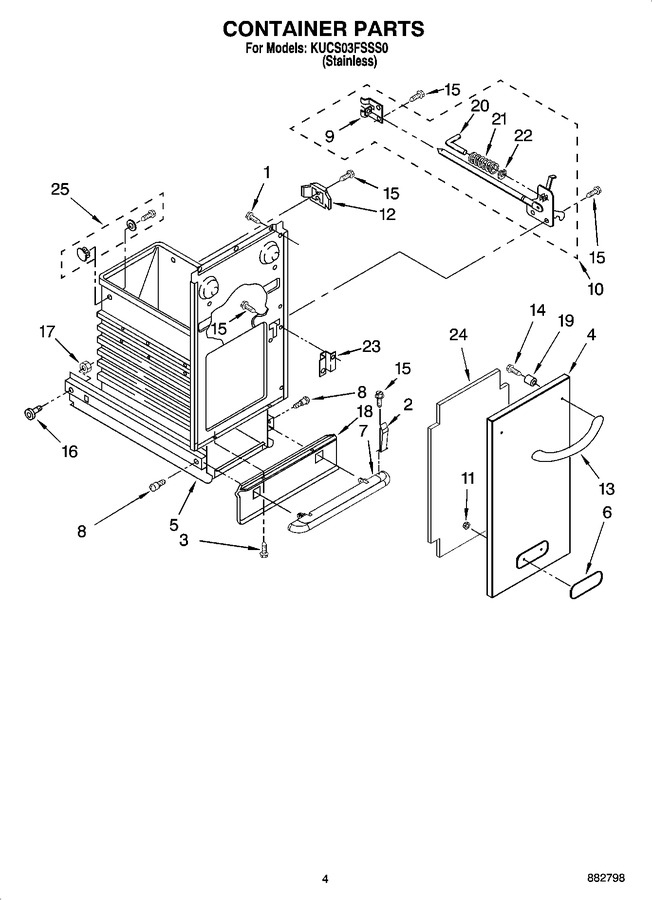

04 - Container Parts


05 - Panel And Control Parts


06 - Accessory Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10139210		Screw (2)   (Replaces: 4152204)				$ 7.23
2	W10342596		Actuator Switch   (Replaces: 9871976)				$ 178.81
3	WP488488		Screw   (Replaces: 489290)				$ 7.67
4	W10714558		Panel, Container Front   (Replaces: 9872232S)				$ 327.23
5	WPW10451276		Container Assembly   (Replaces: 9870996)				$ 459.47
6	W10021850		Nameplate				$ 62.01
7	W11636605		Pedal, Foot (black)   (Replaces: 9871989B)				$ 59.29
8	WP780263		Screw, Shoulder 8-32 X 3/8 (2)   (Replaces: 780263)				$ 7.51
9	WP776395		Guide, Rear Latch   (Replaces: 776395)				$ 88.29
10	675379		Latch Assembly   (Replaces: 9870066)				$ 164.28
11	WP2004333		Nut   (Replaces: 2004333)				$ 10.12
12	9871125		Spring, Safety Switch				$ 26.43
13	WP9872206S		Handle   (Replaces: 9872206S)				$ 304.41
14	WP3196175		Screw   (Replaces: 3196175)			Immediately	$ 6.80
15	246131		Screw		Appelez-nous	-
16	WP9871602		Container, Bearing Roller   (Replaces: 9871602)				$ 12.48
17	WP776356		Locknut, 3/8-24 (2)   (Replaces: 776356)				$ 7.68
18	WPW10242557		Plate, Toe Guard (black)   (Replaces: 777328)				$ 128.28
19	WP9871563		Spacer, Handle   (Replaces: 9871563)				$ 10.13
20	W11705836		Pin   (Replaces: 776654)		Appelez-nous	-
21	775736		Spring, Latch				$ 84.42
22	W11679168		Ring, ``e``   (Replaces: 775735)		Appelez-nous	-
23	775665		Plate, Latch				$ 56.15
24	9872153		Insulation		Appelez-nous	-
25	W11705833		Retainer, Bag (contains 4 Each)   (Replaces: 4147703)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
