SELECT A DIAGRAM

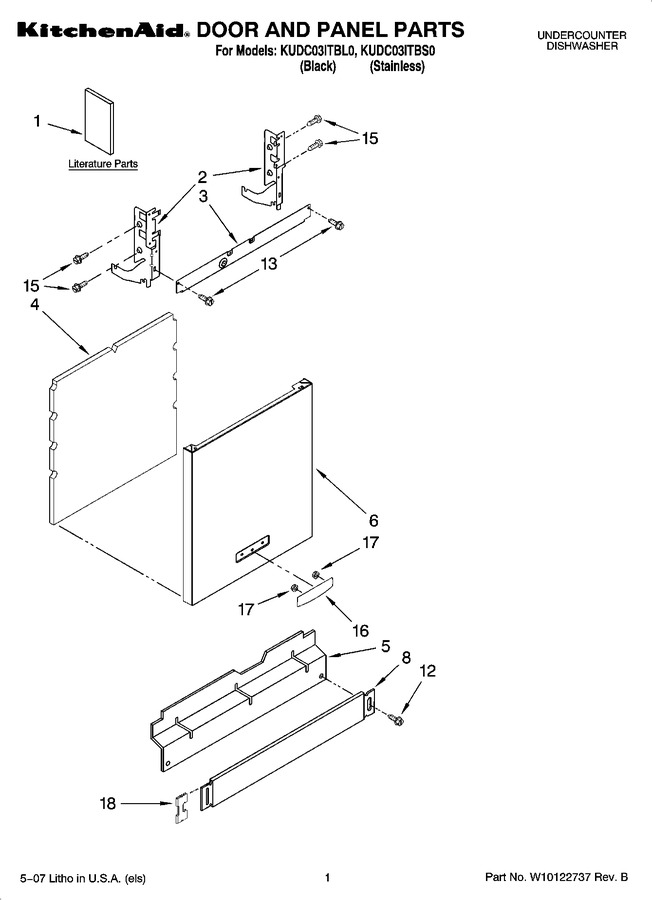

01 - Door And Panel Parts


02 - Control Panel Parts


03 - Door And Latch Parts


04 - Lower Washarm And Strainer Parts


05 - Heater Parts


06 - Fill, Drain And Overfill Parts


07 - Tub And Frame Parts


08 - Pump And Motor Parts


09 - Upper Rack And Track Parts


10 - Upper Wash And Rinse Parts


11 - Lower Rack Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10082651		Tech Sheet		Appelez-nous	-
1	W10078153		Instructions, Installation		Appelez-nous	-
1	W10077822		Guide, Consumer Reference		Appelez-nous	-
1	W10111124		Energy Guide		Appelez-nous	-
1	8574093		Guide, Use & Care		Appelez-nous	-
2	W11806565		Arm, Hinge (left)   (Replaces: 8534854)			Immediately	$ 128.15
2	W11806608		Arm, Hinge (right)   (Replaces: 8534853)			Immediately	$ 128.02
3	8564886		Stiffener, Door		Appelez-nous	-
4	WPW10073520		Insulation, Door   (Replaces: 8542577)				$ 86.61
5	W11763736		Access Panel Black   (Replaces: 8573255)			Immediately	$ 38.03
6	W10077998		Panel, Full Front (includes Items 4,16 & 17) (stainless)		Appelez-nous	-
6	W10077995		Panel, Full Front (includes Items 4,16 & 17) (black)		Appelez-nous	-
8	W10871196		Toe Panel (includes 18) (black)   (Replaces: 8573286)				$ 156.64
12	WP302868		Screw   (Replaces: 302868)			Immediately	$ 7.36
13	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
15	WP3400071		Screw   (Replaces: 3400071)				$ 7.43
16	W10021850		Nameplate (stainless)				$ 62.01
16	W10021860		Nameplate (black)				$ 109.94
17	WP2004333		Nut   (Replaces: 2004333)				$ 10.12
18	WP8269016		Clip, Ground   (Replaces: 8269016)				$ 10.09
