Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10195615 Tech Sheet/english Appelez-nous -
1 W10300596 Guide, Use & Care (spanish) Appelez-nous -
1 W10300932 Energy Guide Appelez-nous -
1 W10300928 Guide, Use & Care English/french Appelez-nous -
1 W10195616 Tech Sheet/french Appelez-nous -
1 W10300598 Instructions, Installation Appelez-nous -
2 W11806565 Arm, Hinge (left)   (Replaces: 8534854) In-Stock Immediately $ 142.39

2 W11806608 Arm, Hinge (righ)   (Replaces: 8534853) In-Stock Immediately $ 142.24

3 W10850371 Vapor Barrier Assembly   (Replaces: W10321449) In-Stock Immediately $ 32.88

4 W10826179 Screw   (Replaces: W10316572) In-Stock Immediately $ 7.55

5 W11763736 Access Panel (black)   (Replaces: W10195777) In-Stock Immediately $ 42.25

5 WPW10441007 Access Panel (white)   (Replaces: W10195778) Special Order $ 170.94

6 WPW10338286 Panel, Full Front (includes Items 10 & 16) (black)   (Replaces: W10338286) Special Order $ 403.65

6 W10328256 Panel, Full Front (includes Items 10 & 16) (stainless) Special Order $ 193.75

6 WPW10338287 Panel, Full Front (includes Items 10 & 16) (white)   (Replaces: W10338287) Special Order $ 393.45

7 WPW10307614 Screw   (Replaces: W10307614) In-Stock Immediately $ 7.55

8 W10871196 Toe Panel (includes Items 11 & 18) (black)   (Replaces: 8558252) Special Order $ 174.04

8 WPW10586591 Toe Panel (includes Items 11 & 18) (white)   (Replaces: 8558253) Special Order $ 309.39

9 W10195738 Handle Assembly (includes Item 7) (stainless) Appelez-nous -
9 W10195736A Handle Assembly (includes Item 7) (white)   (Replaces: W10195736) Special Order $ 63.06

9 W10195735 Handle Assembly (includes Item 7) (black) Appelez-nous -
10 W11157086 Stud, Mounting   (Replaces: W10195726) In-Stock Immediately $ 8.87

11 WP8269016 Clip, Grounding   (Replaces: 8269016) Special Order $ 11.21

12 WP3400836 Screw (white)   (Replaces: 3400836) Special Order $ 8.10

12 WP302868 Screw (black)   (Replaces: 302868) In-Stock Immediately $ 8.18

13 WP489069 Screw   (Replaces: 304392) In-Stock Immediately $ 8.40

14 W11116870 Bracket, Panel Control   (Replaces: W10194911) Special Order $ 89.95

15 WP3400071 Screw   (Replaces: 3400071) Special Order $ 8.26

16 WPW10243392 Nameplate (black)   (Replaces: W10243392) Special Order $ 73.70

16 WPW10243393 Nameplate (white)   (Replaces: W10243393) Special Order $ 69.98

16 WPW10243391 Nameplate (stainless)   (Replaces: W10243391) Special Order $ 58.31

17 W11126003 Insulation Front Panel   (Replaces: W10315897) In-Stock Immediately $ 65.25

18 W10831329 Insulation Toe Panel   (Replaces: 8268581) In-Stock Immediately $ 43.30


    View Diagram in Separate Window     Print Icon   Print Part List

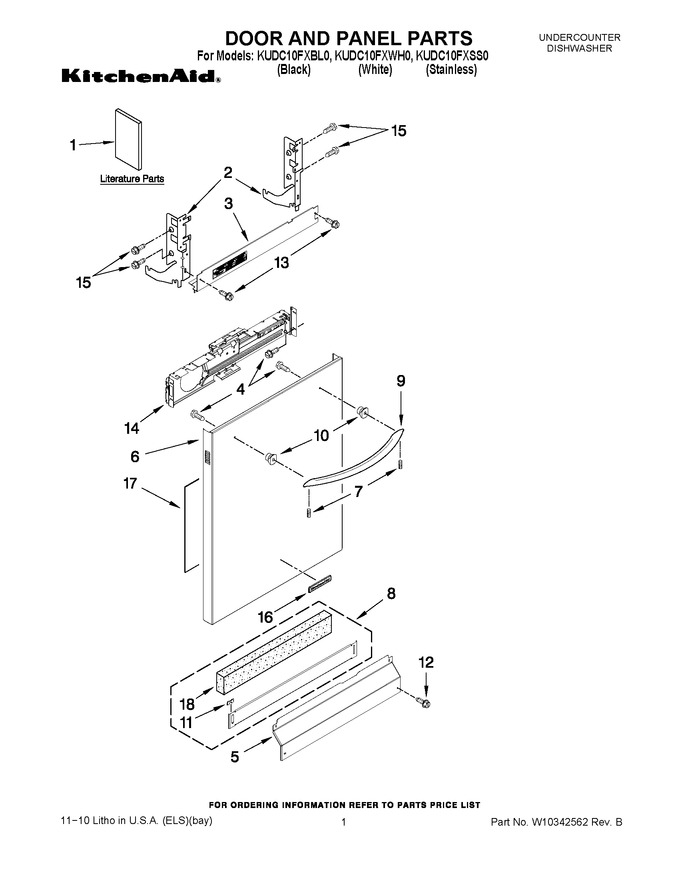

Diagram for KUDC10FXBL0
